Descriere
GYDTS-288Xn Optic Cable is Loose sleeve stranded lightly armored optic fibră ribbon cable
GYDTS-288Xn Optic Cable Product Overview
The structure de cel GYDTS fibră optic cable este la insert 4, 6, 8, și 12 fibră strips into A loose tube made de high–modulus material, și cel loose tube este filled cu A waterproof compound. In the center of the cable core is a metal reinforcing core, And fsau some fiber optic cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube And the filling rope Are twisted Around the central reinforcing core to form a compact And round core, And the gaps in the core Are filled with water-blocking filler. Double-sided plastic-coated steel tApe (PSP) is longitudinally wrapped and eXtruded into a polyethylene sheath to form a cAble.

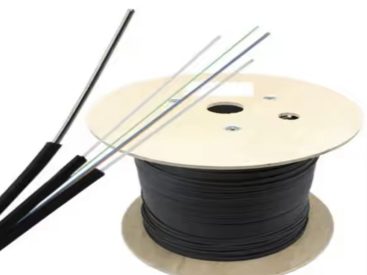

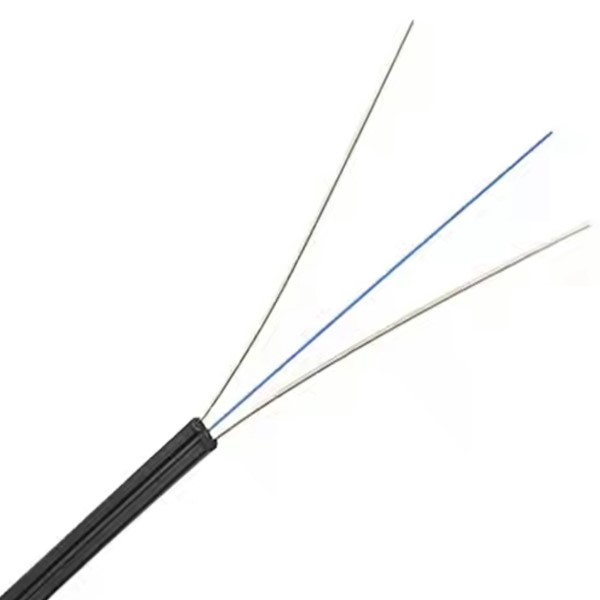

GYDTS-288Xn Optic Cable Product Pictures
GYDTS-288Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km) | Tensile force is allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYDTS-48Xn | 4×12 | 1 | 3 | 306 | 600/1500 | 300/1000 | 10D/20d | |
| GYDTS-96Xn | 8×12 | 2 | 2 | 306 | ||||
| GYDTS-144Xn | 12×12 | 3 | 1 | 306 | ||||
| GYDTS-216Xn | 18×12 | 4 | 0 | 306 | ||||
| GYDTS-288Xn | 24×12 | 4 | 0 | 338 | ||||
| GYDTS-360Xn | 30×12 | 5 | 0 | 338 | ||||
| GYDTS-432Xn | 36×12 | 6 | 0 | 447 | ||||
| Tipul fibrei | Attenuation （+20℃） | Lățimea de bandă | Numerical aperture | Fiber optic cable cut-off wavelength | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYDTS-288Xn Optic Cable Product Features
• Good compression resistance și softness
• Adopt YOFC 4, 6, 8, 12 core fiber strips, flexible Application
• Very good mechanical And temperature properties
• The loose tube material itself has good hydrolysis resistance And high strength
• The tube is filled with a special paste to protect the optical fiber
• Specially designed tight cable structure to effectively prevent the casing from retracting
• The PE sheath has very good resistance to ultraviolet radiation
• The following measures Are taken to ensure the waterproof performance of the cable:
– Single wire center reinforcing core
– The loose tube is filled with a special waterproofing compound
– Full core filling
– Double–sided plastic–coated steel tape (PSP) improves cel moisture permeability de fibră optic cabluri
GYDTS-288Xn Optic Cable Product And More Optic Cables
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (ÎMPREUNĂ)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)
GYDTS-288Xn Optic Cable Product Applications
Long distance communication, LAN, Centru de date, Data Distribution

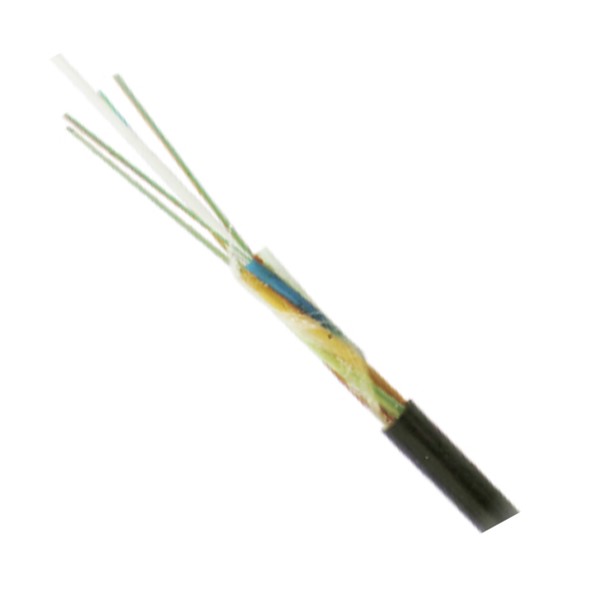

GYDTS-288Xn Optic Cable Product Structure
