Descriere
HG8245H5 FTTH is a home gateway with 2 pots, 4 GE/FE auto-negotiation Ethernet ports, and a Wi-Fi port (standards compliance: 802.11b/g/n).
HG8245H5 FTTH Product Overview
HG8245H5 FTTH supports plug-and-play, diagnostic de la distanță, și caracteristici de conservare a energiei. The product provides ultra-bandwidth access using GPON technologies for home users. The high-performance forwarding capability of the device guarantees the voice, date, and HD video experience, which makes the device future-proof and an ideal terminal for FTTH deployment.

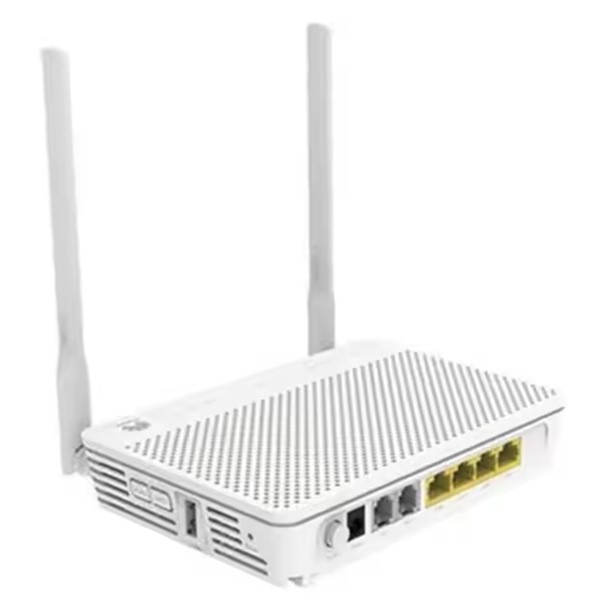

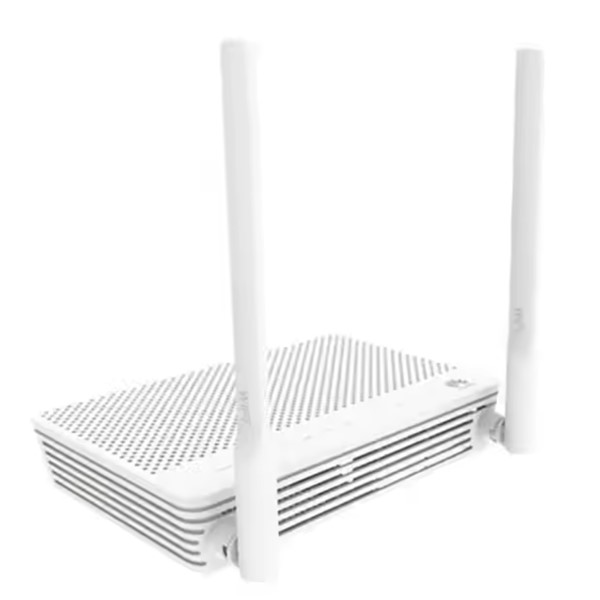

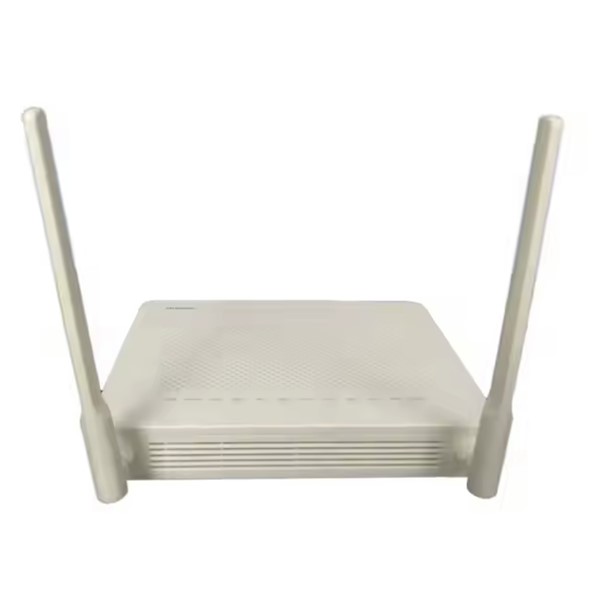

HG8245H5 FTTH Product Pictures
HG8245H5 FTTH Product Specifications
| Numele modelului | HG8245H5 |
| Porturi | 2VASE + 4GE +2.4G Wi-Fi + 1USB |
| PONN Type | Gpon |
| Temperatura de Operare | 0°C până la +40°C |
| Umiditatea de funcționare | 5% RH la 95% RH (necondens) |
| Intrare adaptor de alimentare | 100–240 V AC, 50/60 Hz |
| Alimentarea sistemului | 11–14 V DC, 1.5 A |
| Consumul de energie static | 5.5 W |
| Consum maxim de energie | 16.5 W |
| Indicatori | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS |
| Dimensiuni (L x l x H) | 176 mm x 138.5 mm x 28 mm (without an external antenna) |
HG8245H5 FTTH Product Features
- Support for various ports: 2 POTS+4 GE+1 USB+1 Wi-Fi.
- Ease of operation: Home terminals such as PCs and set top boxes (STBs) can be connected to any Ethernet ports on the HG8245H5. The HG8245H5 supports both the SIP and H.248 protocols, simplifying interconnection with the softswitch.
- Plug-and-play: The HG8245H5 supports the OMCI and TR069 protocols so that voice, bandă largă, and multicast services can be automatically provisioned without onsite parameter configuration.
- Remote diagnosis: Remote fault locating can be achieved through loop-line tests on POTS ports, emulare apel, and PPPoE dial-up emulation.
- High speed forwarding: In a Network Address Translation (NAT) scenario, Strat 2 și Strat 3 forwarding can achieve 1 Gbit/s upstream and 2 Gbit/s în aval.
- Energy conservation: The HG8245H5 uses the highly-integrated SoC chip. An SoC chip integrates the PON, voce, poartă, și module LSW, which helps reduce the device power consumption by 25%.
HG8245H5 FTTH and More Models
EPON/ GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*Firmware LAN englezesc
HG8310 EPON ONT, 1*Firmware LAN englezesc
HG8110 EPON ONT, 1*LAN+1*Firmware de voce în engleză
HG8120 EPON ONT, 2*LAN+1*Firmware de voce în engleză
HG8240 EPON ONT, 4*Firmware LAN+2*voce engleză
HG8346R EPON ONT, 4*Firmware englezesc LAN+2*Voce+WIFI
HG8245 EPON ONT, 4*Firmware englezesc LAN+2*Voce+WIFI
GPON ONT
EG8120L GPON cu un port GE, un port POTS, și un port FE.
HG8310M GPON ONT, 1*Firmware LAN englezesc
HG8010/HG8010C GPON ONT, 1*Firmware LAN englezesc
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOCE Firmware englezesc SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE Firmware englezesc SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE English Firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE Firmware englezesc SIP
HG8240/HG8240H GPON ONT, 4Firmware englezesc GE+2VOICE SIP
HG8345R antenă internă GPON ONT, 4FE+WIFI (antenă internă)Firmware SIP englezesc
HG8345R antenă externă GPON ONT, 4FE+WIFI (antenă externă)Firmware SIP englezesc
HG8546M GPON ONT, 1GE+3FE+VOCE+WIFI, Firmware SIP englezesc
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (antenă internă)Firmware SIP englezesc
HG8346R antenă externă GPON ONT, 4FE+2VOICE+WIFI (antenă externă)Firmware SIP englezesc
HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI Firmware englezesc SIP
HG8245 antenă externă GPON ONT, 4GE+2VOICE+WIFI ( antenă externă)culoare neagră engleză SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI Firmware englezesc SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV Firmware englezesc SIP
HG8145V5 4*GE Ethernet ports, 1 POTS port and 1 USB port and 802.11ac dual bands
HG8245H5 GPON ONT, 4GE+2VOICE+1WIFI English Firmware
HG8245H5 FTTH Product Applications
