GYFTA-50~60Xn Optic Cable is Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable
GYFTA-50~60Xn Optic Cable Product Overview

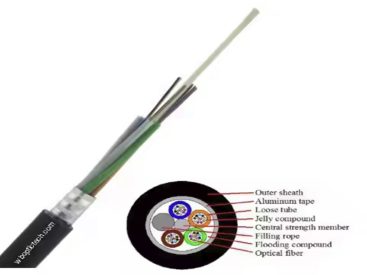

The structure of GYFTA optical cable consists of a 250µm optical fiber encased in a high-modulus material that forms a loose tube, which is filled with a waterproof compound. At the center of the cable core is a non-metallic strengthening core (FRP), and for certain core counts of the cable, an additional layer of polyethylene (PE) is extruded over the non-metallic strengthening core. The loose tube (and filling ropes) is twisted around the central strengthening core to form a compact and round cable core, with the gaps inside the cable core filled with water-blocking material. After being longitudinally wrapped with plastic-coated aluminum tape (APL), a polyethylene sheath is extruded to form the cable.
The optical cable is composed of several parts: the cable core, reinforcing steel wires, filler materials, and the sheath, as well as waterproof layers, buffering layers, and insulating metal conductors as needed. The optical cable consists of three parts: the reinforcing core, cable core, sheath, and outer protective layer.
The cable core structure can be of two types: single-core and multi-core; the single-core type can be either solid or tubular; the multi-core type can be flat or unitary. The outer protective layer can be metal armored or non-armored.

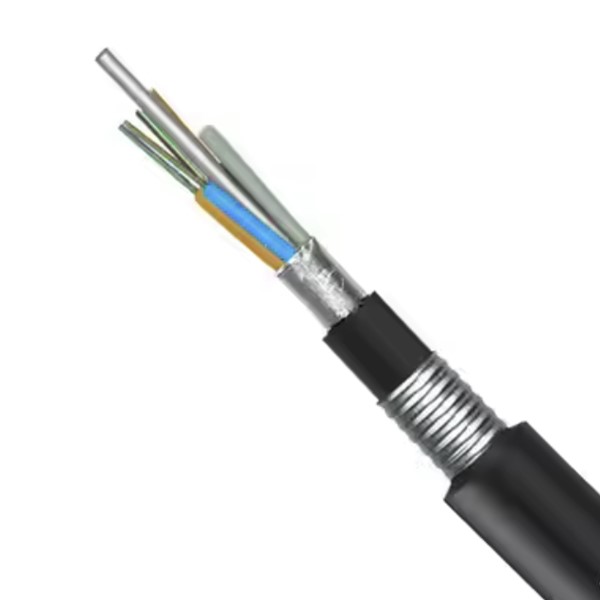

GYFTA-50~60Xn Optic Cable Product Pictures
GYFTA-50~60Xn Optic Cable Product Specifications
| Fiber optic cable model (in 2-fiber increments) |
Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km） |
Tensile force allowed Long-term/short-term (n) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYFTA-2~6Xn | 2~6 | 1 | 7 | 127 | 1000/3000 | 300/1000 | 10D/20D | |
| GYFTA-8~12Xn | 8~12 | 2 | 6 | 127 | ||||
| GYFTA-14~18Xn | 14~18 | 3 | 5 | 127 | ||||
| GYFTA-20~24Xn | 20~24 | 4 | 4 | 127 | ||||
| GYFTA-26~30Xn | 26~30 | 5 | 3 | 127 | ||||
| GYFTA-32~36Xn | 32~36 | 6 | 2 | 127 | ||||
| GYFTA-38~42Xn | 38~42 | 7 | 1 | 127 | ||||
| GYFTA-44~48Xn | 44~48 | 8 | 0 | 127 | ||||
| GYFTA-50~60Xn | 50~60 | 5 | 3 | 136 | ||||
| GYFTA-62~72Xn | 62~72 | 6 | 2 | 136 | ||||
| GYFTA-74~84Xn | 74~84 | 7 | 1 | 136 | ||||
| GYFTA-86~96Xn | 86~96 | 8 | 0 | 136 | ||||
| GYFTA-98~108Xn | 98~108 | 9 | 1 | 161 | ||||
| GYFTA-110~120Xn | 110~120 | 10 | 0 | 161 | ||||
| GYFTA-122~132Xn | 122~132 | 11 | 1 | 195 | ||||
| GYFTA-134~144Xn | 134~144 | 12 | 0 | 195 | ||||
| Fiber type | Slabljenje | Pasovna širina | Numerična apertura | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300 nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0,36dB/km | ≤0,22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0,23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYFTA-50~60Xn Optic Cable Product Features
• Has excellent mechanical properties, temperature characteristics, and flame retardant properties.
• The loose tube material itself has good hydrolysis resistance and high strength.
• The tube is filled with a special oil paste, providing critical protection for the optical fibers.
• The specially designed compact fiber optic cable structure effectively prevents tube shrinkage.
• The PE sheath has excellent resistance to ultraviolet radiation.
• The following measures are taken to ensure the cable’s waterproof performance:
– A single non-metallic center strengthening core.
– The loose tube is filled with a special waterproof compound.
– Completely filled cable core.
– Coated aluminum tape (APL) moisture barrier

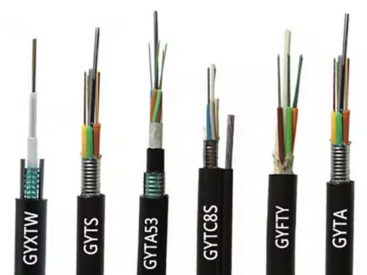

GYFTA-50~60Xn Optic Cable Product and More Optic Cables
Optical-electrical hybrid cables for access networks (GDTA53)
Optical-electrical hybrid cables for access networks (GDTS)
Optical-electrical hybrid cables for access networks (GDTA)
Skeleton type optical fiber cable A sheath cable (GYDGA)
Center tube type Y sheath rodent-proof optical cable (GYXTY)
Center tube type S sheath optical fiber bundle rodent-proof cable (GYDXTS)
Center tube type S sheath rodent-proof cable (GYXTS)
Center tube type 53 sheath rodent-proof cable (GYXTY53)
Loose tube center tube type single fine steel wire armored cable (GYXTA33)
Optical fiber bundle center tube type S sheath rodent-proof cable (GYSXTS)
Optical fiber bundle blowing micro cable (GYCFSY)
Non-metallic center tube type lightning and rodent-proof optical cable (GYQFXTY)
Non-metallic center tube type 73 sheath lightweight lightning and rodent-proof cable (GYQFXTY73)
Center tube type flame retardant optical cable for coal mines (MGXTW)
Loose tube stranded flame retardant optical cable for coal mines (MGTS)
GYFTA-50~60Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as businesses, schools, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication.

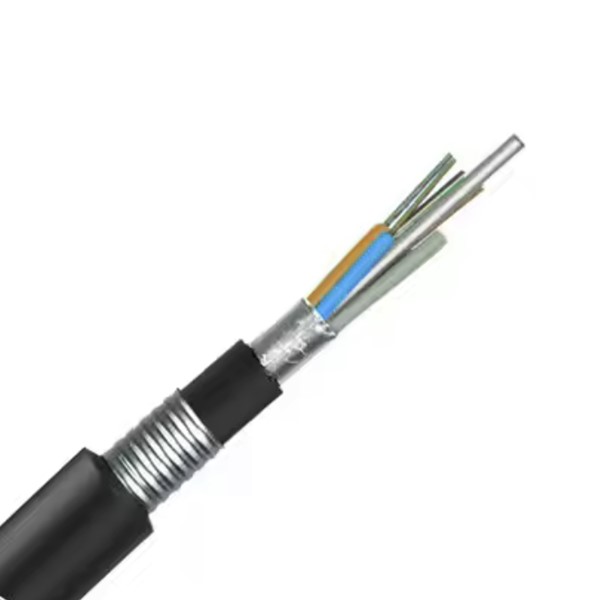

GYFTA-50~60Xn Optic Cable Product Structure
