Sharaxaada
GYTZA-62~72Xn Optic Cable is Flame-retardance Stranded Loose Tube Optical Cable. Fiber optic cables are a type of communication cable composed of two or more glass or plastic optical fiber cores, which are located within a protective covering, encased by a plastic PVC outer jacket. Signal transmission along the internal fibers generally uses infrared light.
GYTZA-62~72Xn Optic Cable Product Overview
GYTZA optical cable is a robust and versatile solution designed to meet the demands of outdoor communication networks, particularly in environments requiring flame-retardant performance. This cable features colored optical fibers housed in a loose tube made of high-modulus material, providing exceptional mechanical strength and hydrolysis resistance. The loose tube is filled with thixotropic gel, ensuring optimal fiber protection and water-blocking capabilities.
A flame-retardant outer sheath, extruded over longitudinally wrapped coated aluminum tape, delivers superior fire resistance and environmental protection. This innovative design ensures the cable’s safety and durability in challenging conditions, including areas with stringent fire safety requirements.

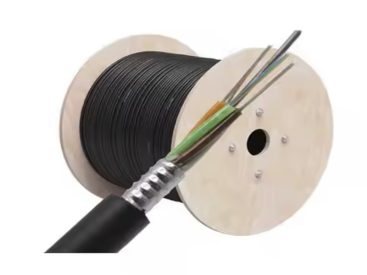

GYTZA-62~72Xn Optic Cable Product Pictures
GYTZA-62~72Xn Optic Cable Product Specifications
| Nooca Fible Fible (kordhinta 2 fiilooyinka) | Tirada tuubooyinka fiber indhaha ah | Tirada gacmaha | Tirada xargaha buuxinta | Tixraaca miisaanka fiilada indhaha (Kg / km) | Ciidamada khafiifka ah ee la oggol yahay muddo-dheer / muddada-gaaban (N) | Xoogga burburka la oggol yahay muddada dheer / muddada gaaban (N/100mm) | Dheecaan Cawius Static / Dynamic (mm) | |
| Gytza-2 ~ 6xn | 2~6 | 1 | 4 | 101 | 600/1500 | 300/1000 | 10D/20D | |
| Gytza-8 ~ 12xn | 8~12 | 2 | 3 | 101 | ||||
| Gytza-14 ~ 18xn | 14~18 | 3 | 2 | 101 | ||||
| GYTZA-20~24Xn | 20~24 | 4 | 1 | 101 | ||||
| Gytza-26 ~ 30xn | 26~30 | 5 | 0 | 101 | ||||
| Gytza-32 ~ 36xn | 32~36 | 6 | 0 | 111 | ||||
| Gytza-38 ~ 48xn | 38~48 | 4 | 1 | 117 | ||||
| Gytza-50 ~ 60xn | 50~60 | 5 | 0 | 117 | ||||
| Gytza-62 ~ 72xn | 62~72 | 6 | 0 | 144 | ||||
| Gytza-74 ~ 84xn | 74~84 | 7 | 1 | 171 | ||||
| Gytza-86 ~ 96xn | 86~96 | 8 | 0 | 171 | ||||
| Gytza-98 ~ 108xn | 98~108 | 9 | 1 | 198 | ||||
| Gytza -10 ~ 120xn | 110~120 | 10 | 0 | 198 | ||||
| Gytza-122 ~ 132xn | 122~132 | 11 | 1 | 229 | ||||
| Gytza-134 ~ 144xn | 134~144 | 12 | 0 | 229 | ||||
| Gytza-146 ~ 216xn | 146~ 216 | 13~18 | 5~ 0 | 229 | ||||
| Nooca optic optic | Attenuation (20°C) | Bandwidth | MADAXWEYNAHA MADAXWEYNAHA | Fibluhu Fible Fibleenta | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @ 850Nm | @1300nm | |||
| G.652 | - | - | ≤0.36dB/km | ≤0.22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40dB/km | ≤0.23dB/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | - | - | ≥500MHz·km | ≥500MHz·km | 0.200± 0.015 NA | - |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | - | - | ≥200MHz·km | ≥500MHz·km | 0.275± 0.015 NA | - |
GYTZA-62~72Xn Optic Cable Product Features
- It has excellent mechanical properties and temperature characteristics.
- The material of the loose tube itself has good hydrolysis resistance and high strength.
- The inside of the tube is filled with special oily paste, providing critical protection for the optical fibers.
- The specially designed compact cable structure effectively prevents tube shrinkage.
- Good compressive strength and flexibility.
- The special sheath has outstanding flame-retardant properties.
- The following measures are taken to ensure the cable’s waterproof performance:
- Single steel wire center reinforcement core
- The loose tube is filled with special waterproof compound
- Complete filling of the cable core
- Plastic-coated aluminum tape (Uurl) moisture-proof layer.
GYTZA-62~72Xn Optic Cable Product and More Optic Cables
Loose tube stranded reinforced core armored flame-retardant optical cable (GYTZA53)
Loose tube stranded non-metallic reinforced core armored flame-retardant optical cable (GYFTZA53)
Loose tube stranded flame-retardant optical cable (Gytzs)
Loose tube stranded non-metallic reinforced core armored optical cable (Cyfafta53)
Loose tube stranded non-metallic reinforced core ordinary armored optical cable (AG53)
Loose tube stranded non-metallic reinforced core non-armored optical cable (WADAJIR)
Loose tube stranded non-metallic reinforced core optical cable (Gyhty)
Loose tube stranded non-metallic reinforced core non-armored optical cable (Habar wadaag)
Loose tube stranded single fine round steel wire armored optical cable (Gyta53 33)
Loose tube stranded reinforced armored optical cable (Gyta53)
Loose tube stranded ordinary armored optical cable (Gyty53)
Loose tube stranded light armored optical cable (Shibbane)
GYTZA-62~72Xn Optic Cable Product Applications
- Outdoor communication network: Suitable for industries such as electricity, oil, macdanta, iwm., with overhead or pipeline laying, especially suitable for scenarios like railways and high-speed rail with high fire protection requirements.
- Flame-retardant environment: Places that require strict fire protection, such as data centers, dariiq yar, and chemical plants.
- Complex climatic conditions: Stable transmission in high and low temperatures and humid environments.

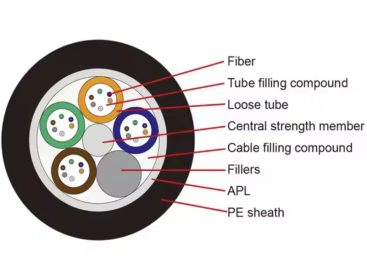

GYTZA-62~72Xn Optic Cable Product Structure
