ZXHN F660 V7.0 FTTH is GPON Optical Terminal Unit with 4 LAN 2 DHERI 1 USB and WIFI
ZXHN F660 V7.0 FTTH Product Overview
F660 FTTH is a GPON Optical Network Terminal for HGU (Home Gateway Unit), and it supports L3 function to help subscribers build an intelligent home network. ZXA10 F660 FTTH provides users with rich, colourful, shakhsi ahaan, and comfortable triple-play services including voice, muuqaal (IPTV) iyo helitaanka internet xawaarihiisu sarreeyo. This model also supports IEEE 802.11b/g/n that allows the subscriber to enjoy the internet via wifi. It has a small, smart appearance and green, energy-saving advantage.

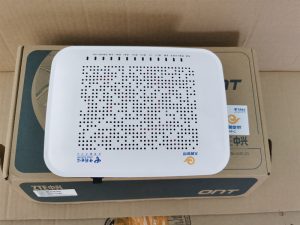

ZXHN F660 V7.0 FTTH Product Pictures
ZXHN F660 V7.0 FTTH Tilmaamaha Alaabta
| Qaabka | F660 V7.0 |
| Miisaanka | 0.5kg |
| Cabirka | 32*18*8CM |
| Dekedda | 4 x10/100/1000Base-T;Badh/buuxa laba-labole; Auto MDI/MDIX; Si toos ah u gorgortanka |
| 2 x POTS interfaces | |
| 1 x Wi-Fi interface: IEEE 802.11b/g/n @2.4G Hz | |
| 1 x USB 2.0 interface martida loo yahay | |
| Interface GPON | Dekedda indhaha: 1 x GPON interface (SC/PC) |
| Fogaanta Gudbinta: 0 ~ 20km | |
| Heerka gudbinta: 2.488Gbps hoos; 1.244Gbps kor u socodka | |
| Module indhaha | Qaadashada: 1480~ 1500 nm |
| Gudbinta: 1290~ 1330 nm | |
| Qaadashada Dareenka: -28dBm | |
| Gudbinta Awoodda Aragga: 0.5~5dBm | |
| Shaqada ugu weyn | Adeeg la taageeray: VoIP, Internetka, IPTV |
| GPON: 8 T-CONTs, 32 GEM Dekadaha | |
| VLAN: 802.1Q, 802.1P, 802.1xayaysiiska | |
| miiska cinwaanka MAC: 1K | |
| Shaqada L3: Adeegga DHCP/Macaamilka, Macmiilka DNS, NAT | |
| IPv6: Dual Stack, DS-Lite | |
| VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38 | |
| Wi-Fi: 4 SSID-yada, 2×2 MIMO, WPS | |
| Casriyeyn badan: IGMP v1/v2/ Snooping/Proxy, MLD v1 Snooping | |
| Kooxda Multicast per user deked: 256 | |
| Maamulka: maamulka shabakada deegaanka, OMCI, TR069 | |
| Maamulka: maamulka shabakada deegaanka, OMCI | |
| USB: DLNA DMS, Kaydka USB, 3G/LTE dongle |
ZXHN F660 V7.0 FTTH Astaamaha Alaabta
- Buuxinta shuruudaha xaaladaha kala duwan si loo bixiyo is-dhexgalyo kala duwan sida FE, GE, VoIP, E1 WiFi USB iyo interfaces kale si ay u buuxiyaan shuruudaha FTTH, FTTO iyo FTTB hababka codsiga, kaliya maaha isticmaalayaasha guriga laakiin sidoo kale isticmaalayaasha ganacsiga.
- Si fudud u geynta Habka rakibida iyo xidhidhiyaha fiber-ka ayaa ka dhigaya rakibidda mid aad u fudud, oo leh qaabaynta dufcaddii EMS si loo hubiyo in eber la dhigo dhinaca ONT.
- Si fudud u cilad-baadhista Taageerida raadraaca calaamadaha ONT iyo la socodka waxqabadka, oo si degdeg ah u hel cilladda ONT.
- Keydka tamarta gaarka ah Taageerida la socodka xaalada marka ONT ay xor tahay, oo geli heerka isticmaalka tamarta hoose; Module-ka indhaha waxa kale oo uu geli karaa xaalad awood yar marka uu batarigu shaqaynayo.
