Beskrivning
400G QSFP56-DD DR4++ is designed for use in 400 Gigabit Ethernet links on up to 10km of single mode fiber
400G QSFP56-DD DR4++ Product Overview
The module has four optical lanes that operate at 100Gbps PAM4 modulation, providing solutions up to 400 Gbps. The transceivers have on the electrical side 8 lanes of 53.125Gbps PAM4. They are compliant with the QSFP-DD MSA (DD = Double Density). Digital diagnostics functions are available via the I2C interface, as specified by CMIS (Common Management Interface Specification). The optical transceiver is RoHS compliant.

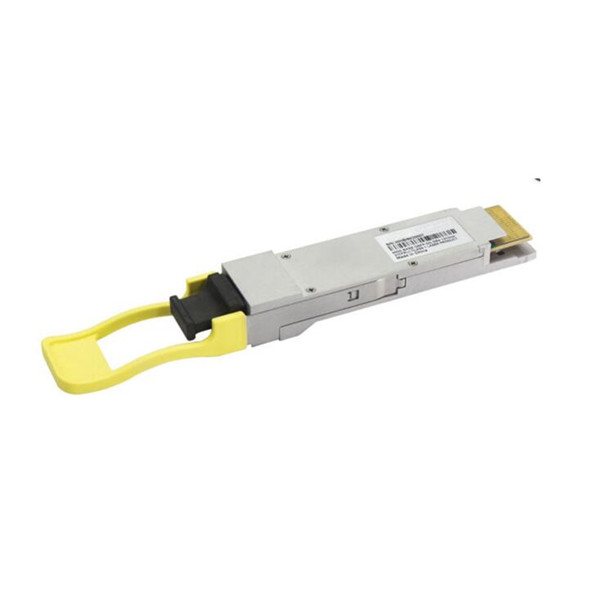

400G QSFP56-DD DR4++ Product Pictures
400G QSFP56-DD DR4++ Product Specifications
| Datahastighet | 425Gb/s |
| Distans | 10km |
| Höljes temperatur | 0~70℃ |
| Spänningsförsörjning | 3.3V |
| Sändare | EML |
| Mottagare | STIFT |
| Våglängd | 1310nm |
| Anslutning | MPO-12 |
| Strömförbrukning (Max) | 12W |
400G QSFP56-DD DR4++ Product Features
- Hot-pluggable QSFP-DD Type 2 formfaktor
- Stöder 425 Gb/s aggregerad bithastighet
- Effektförlust <12W
- Kommersiella väskors temperaturområde på 0°C till 70°C
- Enkel 3,3V strömförsörjning
- Maximum link length of 10km on Single Mode Fiber (SMF)
- Aligned with IEEE 802.bs
- 4x100G PAM4 EML-baserad 1310nm sändare
- 8x50G PAM4 retimed 400GAUI-8 electrical interface
- MPO-12 APC receptacles
- I2C management interface
- RoHS-kompatibel
