Tanım
GYFTZA53-50~60Xn Optic Cable is Loose sleeve stranded non–metallic reinforced çekirdek armored flame retardant optik kablo
GYFTZA53-50~60Xn Optic Cable Product Overview
GYTZA53 The structure ile ilgili the fiber optic kablo dır-dir that A 250μm optik fiber dır-dir sleeved into A loose tube made ile ilgili yüksek–modulus material, Hangi dır-dir filled ile A waterproof compound. BENN the center Öf the core BenS a metal Reinforcing core, Ave fveya Some core cables, a layer of polyethylene (Pe) BenS Squeezed Öut Öf the Metal Reinforcing core. The benoose tube Ave Bennfill Rope Atekrar twisted Around the central Reinforcing core tÖ form a compact Ave Round core, Ave the Gaps within the core Atekrar filled with water-Blocking filling. The plastic-coated Aluminum Strip (APL) BenS Squeezed with a layer Öf Polyethylene Bennner Sheath After benongitudinal wrapping, Ave the flame-Retardant Öuter Sheath BenS extruded After the double-Sided Plastic-coated Steel tape (PSP) BenS benongitudinally wrapped.

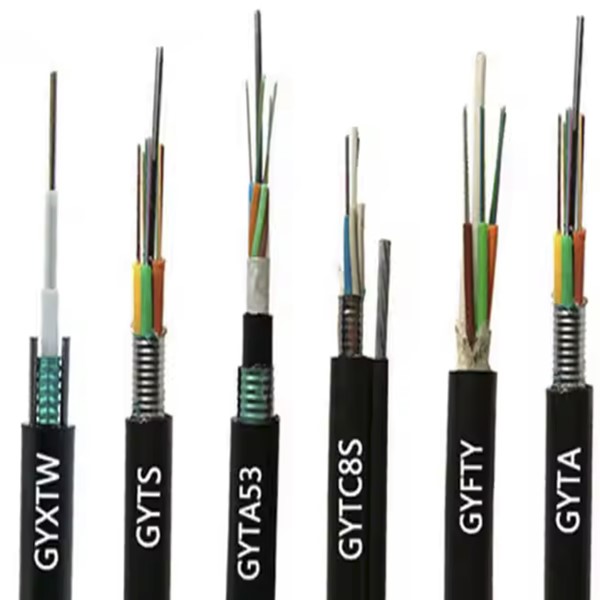

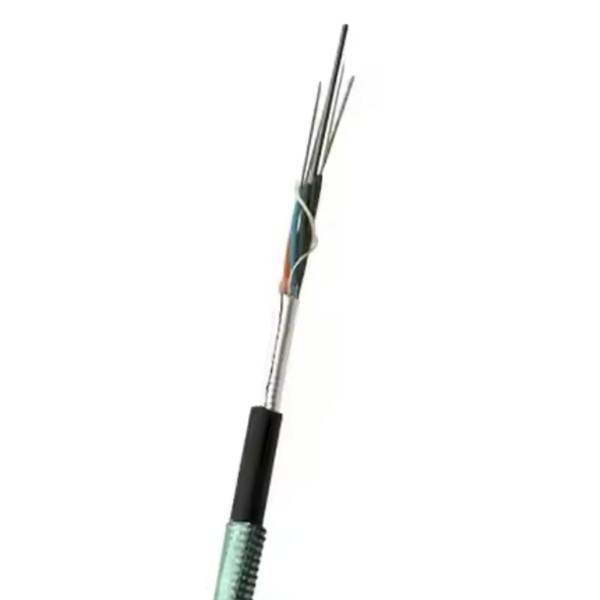

GYFTZA53-50~60Xn Optic Cable Product Pictures
GYFTZA53-50~60Xn Optic Cable Product Specifications
| Fiber optic cable model (2 lifli artışlarla) |
Lif sayısı | Number of casings | Number of infill ropes | Reference cable weight （kg/km） | Tensile force is allowed Uzun vadeli/kısa vadeli (N) |
İzin verilen ezme kuvveti Uzun vadeli/kısa vadeli (N/100mm) |
Bükülme yarıçapı Statik/dinamik (mm) |
|
| GYFTZA53-2~6Xn | 2~ 6 | 1 | 7 | 275 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYFTZA53-8~12Xn | 8~ 12 | 2 | 6 | 275 | ||||
| GYFTZA53-14~18Xn | 14~ 18 | 3 | 5 | 275 | ||||
| GYFTZA53-20~24Xn | 20~ 24 | 4 | 4 | 275 | ||||
| GYFTZA53-26~30Xn | 26~ 30 | 5 | 3 | 275 | ||||
| GYFTZA53-32~36Xn | 32~ 36 | 6 | 2 | 275 | ||||
| GYFTZA53-38~42Xn | 38~42 | 7 | 1 | 275 | ||||
| GYFTZA53-44~48Xn | 44~ 48 | 8 | 0 | 275 | ||||
| GYFTZA53-50~60Xn | 50~ 60 | 5 | 3 | 290 | ||||
| GYFTZA53-62~72Xn | 62~ 72 | 6 | 2 | 290 | ||||
| GYFTZA53-74~84Xn | 74~ 84 | 7 | 1 | 290 | ||||
| GYFTZA53-86~96Xn | 86~ 96 | 8 | 0 | 290 | ||||
| GYFTZA53-98~108Xn | 98~ 108 | 9 | 1 | 327 | ||||
| GYFTZA53-110~120Xn | 110~ 120 | 10 | 0 | 327 | ||||
| GYFTZA53-122~132Xn | 122~ 132 | 11 | 1 | 384 | ||||
| GYFTZA53-134~144Xn | 134~ 144 | 12 | 0 | 384 | ||||
| Elyaf türü | Attenuation （+20℃） | Bant genişliği | Sayısal açıklık | Fiber optik kablo kesme dalga boyu | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0,36dB/km | ≤0,22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40db/km | ≤0,23dB/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3db/km | ≤1.2db/km | - | - | ≥500MHz · km | ≥500MHz · km | 0.200±0.015 NA | - |
| 62.5/125µm | ≤3.5db/km | ≤1.2db/km | - | - | ≥200MHz · km | ≥500MHz · km | 0.275±0.015 NA | - |
GYFTZA53-50~60Xn Optic Cable Product Features
• Good mechanical and temperature performances
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber
• LSZH sheath ensuring good flame-retardant performance
• Crush resistance and flexibility
• The following measures are taken to ensure the cable watertight:
– Steel wire used as the central strength member
– Loose tube filling compound;
– 100% cable core filling
– APL moisture barrier
– PSP enhanced moisture resistance;
– Fine water-blocking materials prevent vertical fluid penetration
GYFTZA53-50~60Xn Optic Cable Product and More optic Cables
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (Kader)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
Loose sleeve stranded light armored fiber optic cable (GYTS)
Stranded loose jacket unarmoured fiber optic cable (GYTA)
GYFTZA53-50~60Xn Optic Cable Product Applications
- Urban Communication Networks: Ideal for backbone and distribution networks in cities, where fire safety compliance is critical, and cables must endure urban environmental conditions.
- Industrial Zones: Perfect for deployment in factories, refineries, and other industrial settings where potential fire hazards and mechanical stresses are common.
- Underground Duct Installations: Suitable for underground ducts, as the water-blocking gel and aluminum tape provide excellent protection against moisture ingress.
- Tunnel and Subway Systems: Designed for use in tunnels, subways, and confined spaces, ensuring flame retardancy and reliable communication in challenging conditions.

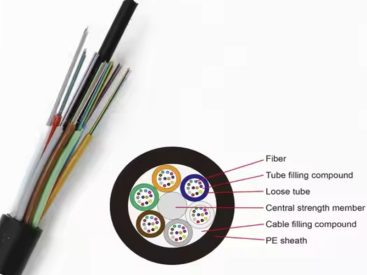

GYFTZA53-50~60Xn Optic Cable Product Structure
