GYTY53-110~120Xn Optic Cable is Loose sleeve layer stranded ordinary armored optical cable featuring stable structure, yüksek güvenilirlik, long transmission distance and good anti-interference performance. It is mainly suitable for overhead, pipeline and direct burial and other laying methods. Its features are as follows:
GYTY53-110~120Xn Optic Cable Product Overview
The structure of the GYTY53 fiber optic cable is to insert a 250μm optical fiber into a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube (and filler rope) are twisted around the central reinforcing core to form a compact and rounded core, and the gaps within the core are filled with water-blocking filling. The cable core is extruded with a layer of polyethylene inner sheath, and the double-sided plastic-coated steel strip (PSP) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

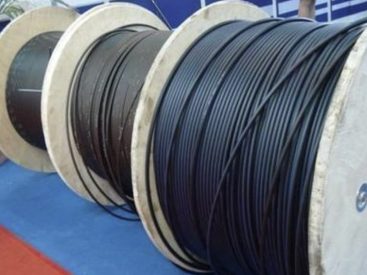

GYTY53-110~120Xn Optic Cable Product Pictures
GYTY53-110~120Xn Optic Cable Product Specifications
| Fiber Optik Kablo Modeli (2 lifli artışlarla) | Lif sayısı | Number of casings | Number of fill ropes | Reference cable weight (kg/km） |
Tensile force is allowed Uzun vadeli/kısa vadeli (N) |
İzin verilen ezme kuvveti Uzun vadeli/kısa vadeli (N/100mm) |
Bükülme yarıçapı Statik/dinamik (mm) |
|
| GYTY53-2~6Xn | 2~ 6 | 1 | 5 | 160 | 1000/3000 | 1000/3000 | 12.5D/25D | |
| GYTY53-8~12Xn | 8~ 12 | 2 | 4 | 160 | ||||
| GYTY53-14~18Xn | 14~ 18 | 3 | 3 | 160 | ||||
| GYTY53-20~24Xn | 20~ 24 | 4 | 2 | 160 | ||||
| GYTY53-26~30Xn | 26~ 30 | 5 | 1 | 160 | ||||
| GYTY53-32~36Xn | 32~ 36 | 6 | 0 | 160 | ||||
| GYTY53-38~48Xn | 38~ 48 | 4 | 1 | 174 | ||||
| GYTY53-50~60Xn | 50~ 60 | 5 | 0 | 174 | ||||
| GYTY53-62~72Xn | 62~ 72 | 6 | 0 | 185 | ||||
| GYTY53-74~84Xn | 74~ 84 | 7 | 1 | 214 | ||||
| GYTY53-86~96Xn | 86~ 96 | 8 | 0 | 214 | ||||
| GYTY53-98~108Xn | 98~ 108 | 9 | 1 | 245 | ||||
| GYTY53-110~120Xn | 110~ 120 | 10 | 0 | 245 | ||||
| GYTY53-122~132Xn | 122~ 132 | 11 | 1 | 281 | ||||
| GYTY53-134~144Xn | 134~ 144 | 12 | 0 | 281 | ||||
| GYTY53-146~216Xn | 146~ 216 | 13~ 18 | 5~0 | 281 | ||||
| Elyaf türü | attenuation （+20℃） | Bant genişliği | Sayısal Açıklık | Fiber optik kablo kesme dalga boyu | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0,36dB/km | ≤0,22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40db/km | ≤0,23dB/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3,0dB/km | ≤1,0dB/km | - | - | ≥500MHz · km | ≥500MHz · km | 0.200±0.015 NA | - |
| 62.5/125µm | ≤3.3db/km | ≤1,0dB/km | - | - | ≥200MHz · km | ≥500MHz · km | 0.275±0.015 NA | - |
GYTY53-110~120Xn Optic Cable Product Features
- Low dispersion and attenuation
- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
- With small cable diameter, light cable weight, easily to lay
- Çalışma sıcaklığı : -40 ~ +60 °C
- Steel wire strength.filler protect tube fiber.steel tape armord.
- Good ultra violet radiation resistant property.
- Double sheath .Good moisture-resistance
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound and 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
