Tanım
GYTZS-98~108Xn Optic Cable is Stranded Loose Tube Flame-retardant Cable
GYTZS-98~108Xn Optic Cable Product Overview

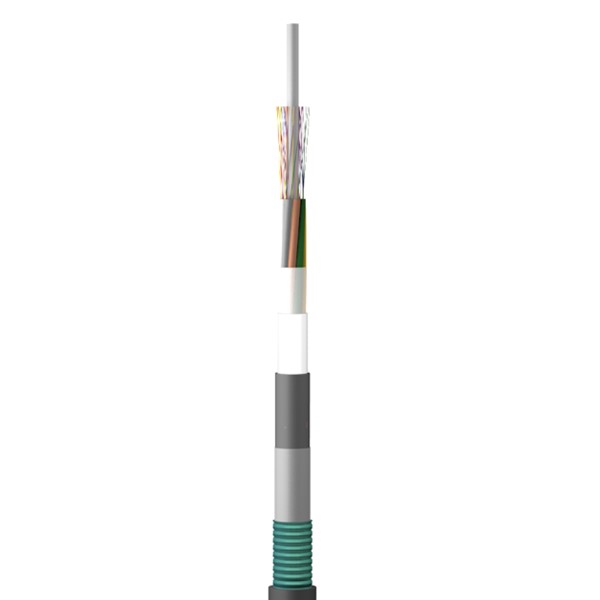

The structure of the fiber optic cable consists of a 250µm optical fiber housed in a loose tube made of high modulus material, with waterproof compounds filled inside the tube. At the center of the cable core is a metal strength member, and for certain types of fiber cables, an additional layer of polyethylene (PE) is extruded around the metal strength member. The loose tube and filling yarn are twisted around the central strength member to form a compact and round cable core, with the gaps within the core filled with water-blocking filling material. A double-sided coated steel tape (PSP) is longitudinally wrapped and then extruded into a flame-retardant sheath to form the cable.
Fiber optic cables have become an indispensable part of modern communication infrastructure due to their high bandwidth, low loss, long-distance transmission capabilities, and resistance to electromagnetic interference. With the development of technologies such as 5G, Nesnelerin İnterneti (Nesnelerin İnterneti), and cloud computing, fiber optic cables play an increasingly important role in building high-speed, reliable communication networks.

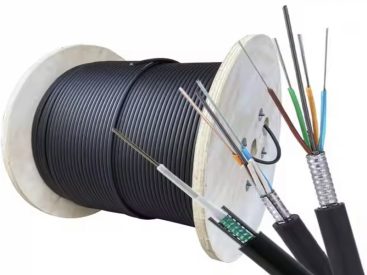

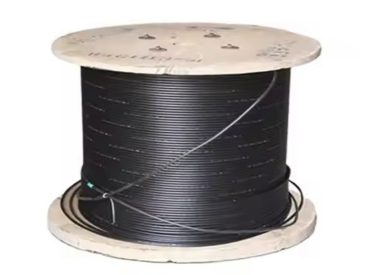

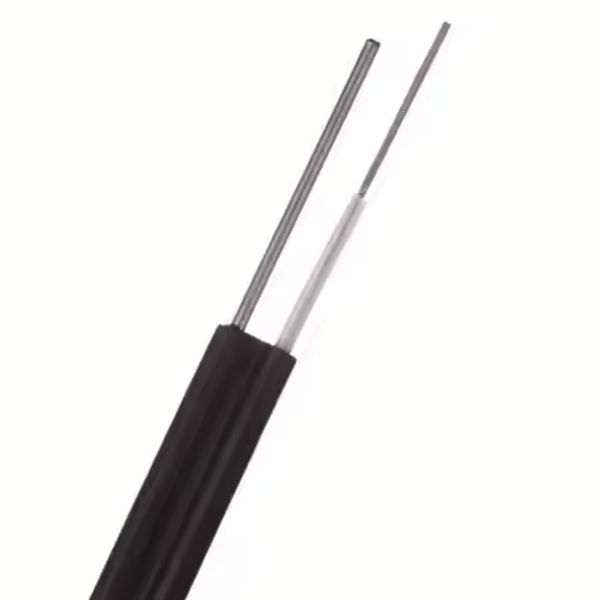

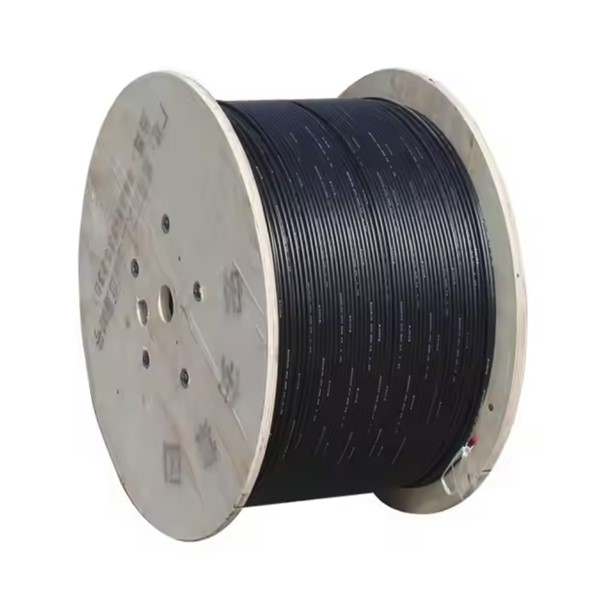

GYTZS-98~108Xn Optic Cable Product Pictures
GYTZS-98~108Xn Optic Cable Product Specifications
| Fiber Optik Kablo Modeli (2 lifli artışlarla) | Lif sayısı | Number of casings | Number of infill ropes | Reference cable weight (kg/km） | Gerilme kuvveti izin verilir Uzun vadeli/kısa vadeli (N) |
İzin verilen ezme kuvveti Uzun vadeli/kısa vadeli (N/100mm) |
Bükülme yarıçapı Statik/dinamik (mm) |
|
| GYTZS-2~6Xn | 2~ 6 | 1 | 4 | 118 | 600/1500 | 300/1000 | 10D/20d | |
| GYTZS-8~12Xn | 8~ 12 | 2 | 3 | 118 | ||||
| GYTZS-14~18Xn | 14~ 18 | 3 | 2 | 118 | ||||
| GYTZS-20~24Xn | 20~ 24 | 4 | 1 | 118 | ||||
| GYTZS-26~30Xn | 26~ 30 | 5 | 0 | 118 | ||||
| GYTZS-32~36Xn | 32~ 36 | 6 | 0 | 131 | ||||
| GYTZS-38~48Xn | 38~ 48 | 4 | 1 | 139 | ||||
| GYTZS-50~60Xn | 50~ 60 | 5 | 0 | 139 | ||||
| GYTZS-62~72Xn | 62~ 72 | 6 | 0 | 170 | ||||
| GYTZS-74~84Xn | 74~ 84 | 7 | 1 | 200 | ||||
| GYTZS-86~96Xn | 86~ 96 | 8 | 0 | 200 | ||||
| GYTZS-98~108Xn | 98~ 108 | 9 | 1 | 230 | ||||
| GYTZS-110~120Xn | 110~ 120 | 10 | 0 | 230 | ||||
| GYTZS-122~132Xn | 122~ 132 | 11 | 1 | 268 | ||||
| GYTZS-134~144Xn | 134~ 144 | 12 | 0 | 268 | ||||
| GYTZS-146~216Xn | 146~ 216 | 13~ 18 | 5~0 | 268 | ||||
| GYTZS-288Xn | 288 | 24 | 0 | 360 | ||||
| Elyaf türü | zayıflama | Bant genişliği | Sayısal Açıklık | Fiber optik kablo kesme dalga boyu | ||||
| （+20 ℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | - | - | ≤0,36dB/km | ≤0,22dB/km | - | - | - | ≤1260nm |
| G.655 | - | - | ≤0.40db/km | ≤0,23dB/km | - | - | - | ≤1450nm |
| 50/125µm | ≤3.3db/km | ≤1.2db/km | - | - | ≥500MHz · km | ≥500MHz · km | 0.200±0.015 NA | - |
| 62.5/125µm | ≤3.5db/km | ≤1.2db/km | - | - | ≥200MHz · km | ≥500MHz · km | 0.275±0.015 NA | - |
GYTZS-98~108Xn Optic Cable Product Features
- Has good mechanical properties and temperature characteristics
- Gevşek tüp malzemesinin kendisi iyi hidroliz direncine ve yüksek mukavemete sahiptir
- The tube is filled with a special oil paste, providing critical protection for the optical fibers
- Specially designed compact cable structure effectively prevents tube shrinkage
- Good compression resistance and flexibility
- The special sheath has excellent flame-retardant performance
- The following measures are taken to ensure the waterproof performance of the optical cable
- Single steel wire center reinforced core
- Loose tube filled with special waterproof compounds
- Fully filled cable core
- Double-sided coated steel belt (PSP) enhances the moisture resistance of the optical cable

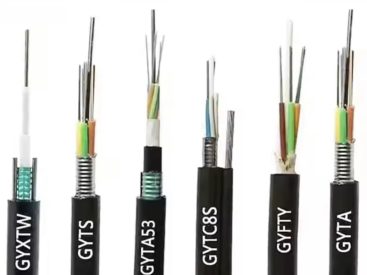

GYTZS-98~108Xn Optic Cable Product and More Optic Cables
Loose tube stranded reinforced armored flame-retardant optical cable (GYTZA53)
Loose tube stranded non-metallic reinforced armored flame-retardant optical cable (GYFTZA53)
Loose tube stranded flame-retardant optical cable (GYTZS)
Loose tube stranded non-armored flame-retardant optical cable (GYTZA)
Loose tube stranded non-metallic reinforced armored optical cable (GYFTA53)
Loose tube stranded non-metallic reinforced ordinary armored optical cable (GYFTY53)
Loose tube stranded non-metallic reinforced non-armored optical cable (Kader)
Loose tube stranded non-metallic reinforced optical cable (GYHTY)
Loose tube stranded non-metallic reinforced non-armored optical cable (GYFTY)
Loose tube stranded single steel wire armored optical cable (GYTA53 33)
Loose tube stranded reinforced armored optical cable (GYTA53)
Loose tube stranded ordinary armored optical cable (GYTY53)
Loose tube stranded light armored optical cable (GYTS)
GYTZS-98~108Xn Optic Cable Product Applications
- Underground Duct Installations: Suitable for underground ducts, as the water-blocking gel and aluminum tape provide excellent protection against moisture ingress.
- Tunnel and Subway Systems: Designed for use in tunnels, subways, and confined spaces, ensuring flame retardancy and reliable communication in challenging conditions.
- Coastal and High-Humidity Areas: Effective in regions prone to heavy rain, high humidity, or coastal environments, with robust moisture-blocking and corrosion-resistant properties.
- Aerial Deployments: Lightweight and strong, making it ideal for aerial installations where the non-metallic core prevents electromagnetic interference.

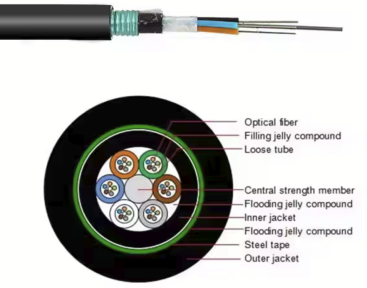

GYTZS-98~108Xn Optic Cable Product Structure
