GYTZS-110~120Xn Optic Cable is Stranded Loose Tube Flame-retardant Cable, and complies with Standard YD/T 901-2001 and MT386-1995, applied for Duct /Aerial /Direct buried
GYTZS-110~120Xn Optic Cable Product Overview
The structure of GYTZS optical cables consists of a 250µm optical fiber encased in a loose tube made of high-modulus materials, with waterproof compounds filling the inside of the loose tube. At the center of the cable core is a metal strength member, and for some types of optical cables, an additional layer of polyethylene (PE) is extruded around the metal strength member. The loose tubes and filling yarns are twisted around the central strength member to form a compact and round cable core, with gaps inside the cable core filled with water-blocking material. A double-sided coated steel tape (PSP) is longitudinally wrapped and extruded to form a flame-retardant sheath for the cable.
Optical cables are communication cables composed of one or more optical fibers, with the fibers serving as the transmission medium. To protect the fibers from physical damage, moisture, and other external factors, optical cables are typically wrapped in one or more layers of protective materials, such as plastic sheathing, steel wires, тощо.

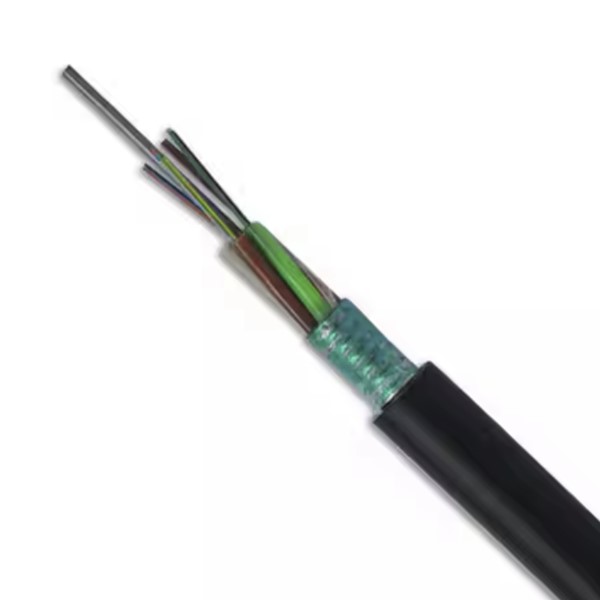

GYTZS-110~120Xn Optic Cable Product Pictures
GYTZS-110~120Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km） | Tensile force allowed Long-term/short-term (Н) |
Allowable squashing force Long-term/short-term (Н/100 мм) |
Радіус вигину Static/Dynamic (мм) |
|
| GYTZS-2~6Xn | 2~6 | 1 | 4 | 118 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZS-8~12Xn | 8~12 | 2 | 3 | 118 | ||||
| GYTZS-14~18Xn | 14~18 | 3 | 2 | 118 | ||||
| GYTZS-20~24Xn | 20~24 | 4 | 1 | 118 | ||||
| GYTZS-26~30Xn | 26~30 | 5 | 0 | 118 | ||||
| GYTZS-32~36Xn | 32~36 | 6 | 0 | 131 | ||||
| GYTZS-38~48Xn | 38~48 | 4 | 1 | 139 | ||||
| GYTZS-50~60Xn | 50~60 | 5 | 0 | 139 | ||||
| GYTZS-62~72Xn | 62~72 | 6 | 0 | 170 | ||||
| GYTZS-74~84Xn | 74~84 | 7 | 1 | 200 | ||||
| GYTZS-86~96Xn | 86~96 | 8 | 0 | 200 | ||||
| GYTZS-98~108Xn | 98~108 | 9 | 1 | 230 | ||||
| GYTZS-110~120Xn | 110~120 | 10 | 0 | 230 | ||||
| GYTZS-122~132Xn | 122~132 | 11 | 1 | 268 | ||||
| GYTZS-134~144Xn | 134~144 | 12 | 0 | 268 | ||||
| GYTZS-146~216Xn | 146~216 | 13~18 | 5~0 | 268 | ||||
| GYTZS-288Xn | 288 | 24 | 0 | 360 | ||||
| Тип волокна | Затухання | Пропускна здатність | Числова апертура | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850 нм | @1300 нм | @1310 нм | @1550 нм | @850 нм | @1300 нм | |||
| G.652 | — | — | ≤0,36 дБ/км | ≤0,22 дБ/км | — | — | — | ≤1260 нм |
| G.655 | — | — | ≤0.40dB/km | ≤0,23 дБ/км | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZS-110~120Xn Optic Cable Product Features
- Has good mechanical properties and temperature characteristics
- The loose tube material itself has good resistance to hydrolysis and high strength
- The tube is filled with special oil paste, providing crucial protection for the optical fibers
- Specially designed compact cable structure effectively prevents tube shrinkage
- Good compressive strength and flexibility
- Special sheath has excellent flame retardant properties
- The following measures are taken to ensure the waterproof performance of the cable:
-A single steel wire center strengthened core
-Filling the loose tube with a special waterproof compound
-Fully filling the cable core
-Double-sided plastic
-coated steel tape (PSP) improves the moisture penetration resistance of the optical cable.
GYTZS-110~120Xn Optic Cable Product and More Optic Cables
Central tube non-armored optical cable (GYXY)
Central tube light armored optical cable (GYXS/GYXTW)
Loose tube stranded light armored fiber optic cable (GYDTS)
Loose tube stranded non-armored fiber optic cable (GYDTA)
Loose tube stranded non-metallic reinforced core non-armored flame-retardant optical cable (GYFTZY)
Loose tube stranded reinforced core armored flame-retardant optical cable (GYTZA53)
Loose tube stranded non-metallic reinforced core armored flame-retardant optical cable (GYFTZA53)
Loose tube stranded flame-retardant optical cable (GYTZS)
Loose tube stranded non-armored flame-retardant optical cable (GYTZA)
Loose tube stranded non-metallic reinforced core armored optical cable (GYFTA53)
Loose tube stranded non-metallic reinforced core ordinary armored optical cable (GYFTY53)
Loose tube stranded non-metallic reinforced core non-armored optical cable (РАЗОМ)
Loose tube stranded non-metallic reinforced core optical cable (GYHTY)
Loose tube stranded non-metallic reinforced core non-armored optical cable (GYFTY)
Loose tube stranded single fine round steel wire armored optical cable (GYTA53 33)
Loose tube stranded reinforced armored optical cable (GYTA53)
Loose tube stranded ordinary armored optical cable (GYTY53)
GYTZS-110~120Xn Optic Cable Product Applications
- Long-distance communication: Used for long-distance data transmission between countries and internationally.
- Metropolitan area network: Connects different network nodes within a city.
- Local area network: Used for high-speed data transmission in local networks such as enterprises, школи, and homes.
- Data center: Connects servers, storage devices, and network devices to achieve high-speed internal communication.

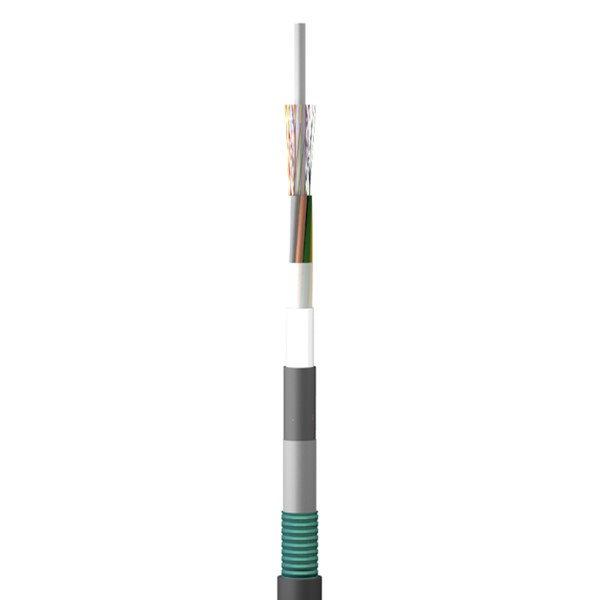

GYTZS-110~120Xn Optic Cable Product Structure
