Huawei PAC600S12-CB Power Module

Περιγραφή

Huawei PAC600S12-CB Power Module is 600 W AC Power Module for S6730-H24X6C, S6730-H48X6C, S6730-S24X6Q, S6730S-S24X6Q-A, and S6730S-H24X6C-A

Huawei PAC600S12-CB Power Module Product Overview

Huawei PAC600S12-CB Power Module is 600 W AC Power Module for S6730-H24X6C, S6730-H48X6C, S6730-S24X6Q, S6730S-S24X6Q-A, and S6730S-H24X6C-A. The CloudEngine S6730-H series of full-featured 10 Gigabit switches is a new generation of 10 Gigabit box switches launched by Huawei. It has on-board AC capability and can manage a large number of APs; it has the ability to freely move and provides consistent user experience; VXLAN capability supports network virtualization functions; built-in security probes support abnormal traffic detection, encrypted traffic threat analysis, and network-wide threat trapping. It can be widely used in application scenarios such as enterprise parks, χειριστές, universities, and governments.

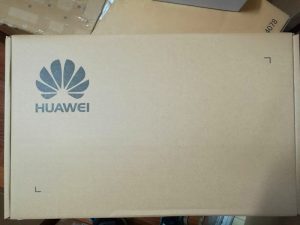

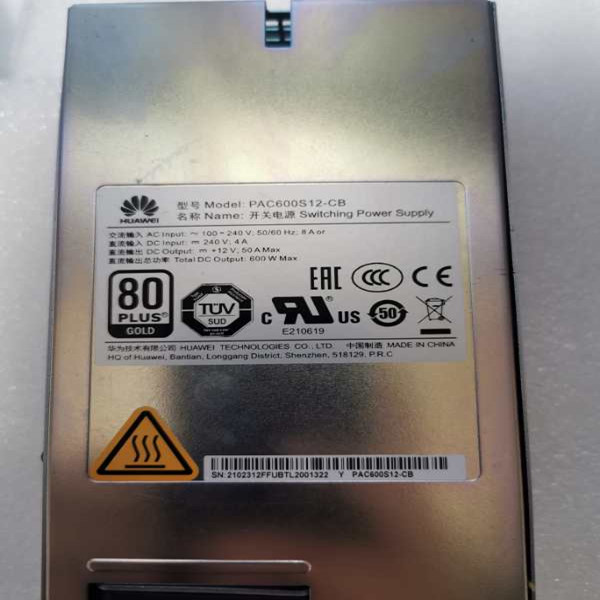

Huawei PAC600S12-CB Power Module Product Pictures

Huawei PAC600S12-CB Power Module Product Specifications

Είδος	Περιγραφή
Μάρκα	Huawei
Αριθμός ανταλλακτικού	02312FFU
Μοντέλο	PAC600S12-CB
Διαστάσεις (Υ x Π x Δ)	40 mm x 90 mm x 215 mm (1.6 σε. Χ 3.5 σε. Χ 8.5 σε.)
Βάρος	0.95 κιλό (2.09 λίβρα)
Ονομαστική περιοχή τάσης εισόδου	100 V AC to 240 V AC, 50/60 Hz
	240 V DC
Μέγιστο εύρος τάσης εισόδου	90 V AC to 290 V AC, 45 Hz σε 65 Hz
	190 V DC προς 290 V DC
Μέγιστο ρεύμα εισόδου	100 V AC to 240 V AC: 8 ΕΝΑ
	240 V DC: 4 ΕΝΑ
Maximum output current	50 ΕΝΑ
Rated output voltage	12 V
Ονομαστική ισχύς εξόδου	600 W

Huawei PAC600S12-CB Power Module Product Features

• Input protection

In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.

• In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range.
• Output protection

In this protection state, the power module stops supplying power intermittently. When the output voltage restores to the normal range, the power module automatically resumes power supply.

In this protection state, the power module supplies power intermittently. When the output current is within a range, the power module automatically resumes power supply.

In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.

• Overtemperature protection

When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.

Huawei PAC600S12-CB Power Module Product Panel

1. Lock	2. Indicator	3. Fan air vent	4. Handle
5. Airflow flag (air out)	6. AC power socket	–

Huawei PAC600S12-CB Power Module Product and More Power Unit

150W μονάδα τροφοδοσίας AC (ES0W2PSA0150)
150Μονάδα τροφοδοσίας W DC (ES0W2PSD0150)
170W μονάδα τροφοδοσίας AC (W0PSA1701)
170Μονάδα τροφοδοσίας W DC (ES5M0PSD1700)
260W DC power supply module (PDC260S12-DL)
300W μονάδα τροφοδοσίας AC (PAC300S12-CL)
350Μονάδα τροφοδοσίας W DC (PDC-350WA-B)
500Μονάδα τροφοδοσίας W DC (LS6W2PSD0500)
600W μονάδα τροφοδοσίας AC (PAC-600WA-B)
600W μονάδα τροφοδοσίας AC (PAC600S12-CB)
500W μονάδα τροφοδοσίας AC (W0PSA5000)
580W AC PoE Power Module (W2PSA0580)
650Μονάδα ισχύος W DC PoE (PDC-650WA-BE)
1000W μονάδα τροφοδοσίας AC PoE (PAC1000D5412)
1000Μονάδα τροφοδοσίας W DC (PDC1000S12-DB)
1150W μονάδα τροφοδοσίας AC PoE (W2PSA1150)
870W PoE power module (LS5W2PSA0870, 15A rectifier module)
