Περιγραφή
Huawei R48100G1 Rectifier Module is a digital control 3-phase rectifier with the maximum output power being 6000W converting 260~530VAC input voltage to 53.5VDC output voltage.
Huawei R48100G1 Rectifier Module Product Overview
Huawei R48100G1 Rectifier Module is a digital three-phase rectifier module designed and produced by Huawei with a large output power of 6000W, which can realize the conversion of 260~530Vac input and 53.3Vdc rated output. The output voltage can be adjusted by the monitoring module. It has the advantages of soft start, perfect input and output protection, low noise, parallel connection and so on. The new power monitoring technology is adopted to realize the real-time monitoring of the rectifier module and the load, and realize the function of adjusting the output voltage through the background.

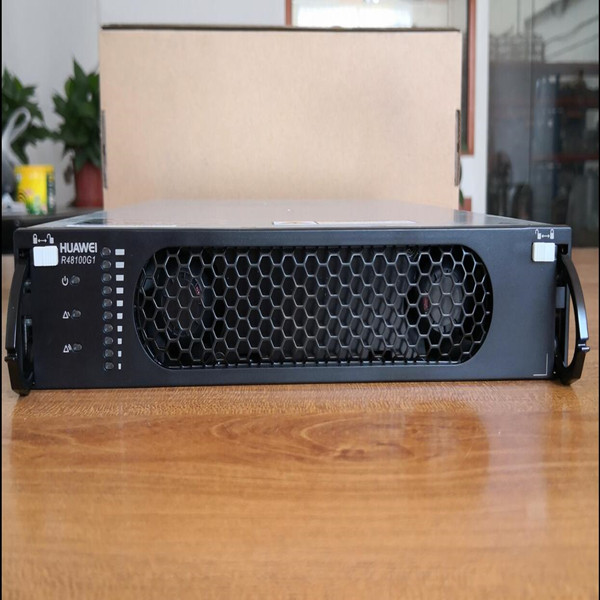

Huawei R48100G1 Rectifier Module Product Pictures
Huawei R48100G1 Rectifier Module Product Specifications
| Μάρκα | Huawei |
| Μοντέλο | R48100G1 |
| Input voltage | 260~530VAC |
| Συχνότητα | 45~66Hz Maximum input current |
| Rated: 50Hz and 60Hz | ≤13A(Vin: 308VAC,100% φορτώνω) |
| Power factor | ≥ 0.99 |
| THD | ≤ 5% |
| Output voltage | 42~58VDC Rated: 53.5VDC |
| Output power | 6000W(304~530VAC) |
| Διάσταση | 43mm(H) × 238mm(W) × 378mm(ρε) |
| Βάρος | < 6κιλό |
| Ψύξη | Foreced wind ventilation |
| Θερμοκρασία λειτουργίας | -40℃ to +75 ℃(output derating above 45℃) |
| Θερμοκρασία αποθήκευσης | -40℃ to +75℃ |
| Σχετική υγρασία | 5%~95% (μη συμπυκνωτικό) |
| MTBF | 450,000 ώρες |
| Προσδιορισμός | ≤45dB |
| Altitude range | ≤ 4000m (If the altitude is within the range of 2000m to 4000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 120m) |
Huawei R48100G1 Rectifier Module Product Features
- Εύρος τάσης εισόδου: 260~530VAC
- Operating temperature range: -40 ℃ to +75 ℃ (output derating above 45℃)
- Total harmonic distortion (THD): ≤ 5%
- Digital control mode
- Hot swap
- Support intelligent electric meter
- Υποστήριξη επικοινωνίας CAN
- Support LED display
- Support voltage and current adjustment
- Pass the TUV,CE,UL certifications and gets the CB certificate
Huawei R48100G1 Rectifier Module and More Related Models
| Αριθμός ανταλλακτικού | Input Voltage | Output Voltage | Ισχύς εξόδου | Efficiency | Θερμοκρασία λειτουργίας |
| R4805G1 | 85-300Vac | 42-58Vdc | 270W | 94 % | -40C to +75C |
| R4815G1 | 85-300Vac | 42-58Vdc | 870W | 96 % | -40C to +75C |
| R4815N1 | 85-300Vac | 42-58Vdc | 1000W | 94 % | -40C to +75C |
| R4830G1 | 85-300Vac | 42-58Vdc | 1600W | 96 % | -40C to +75C |
| R4830G2 | 85-300Vac | 42-58Vdc | 2000W | 96 % | -40C to +75C |
| R4830N2 | 85-300Vac | 42-58Vdc | 1605W | 94 % | -40C to +75C |
| R4850G1 | 85-300Vac | 42-58Vdc | 3000W | 96 % | -40C to +75C |
| R4850G2 | 85-300Vac | 42-58Vdc | 3000W | 96 % | -40C to +75C |
| R4850N1 | 85-300Vac | 42-58Vdc | 2900W | 92 % | -40C to +75C |
| R4850N2 | 85-300Vac | 42-58Vdc | 3000W | 94 % | -40C to +75C |
| R48100G1 | 260-530Vac | 42-58Vdc | 6000W | 96 % | -40C to +75C |
| R33640G1 | 260-530Vac | 300-400Vdc | 15kW | 97% | -40C to +75C |
| R50030G1 | 260-456Vac | 300-500Vdc | 15kW | 95.8% | -30C to +65C |
Huawei R48100G1 Rectifier Module Product Applications
