Περιγραφή
Huawei S3700-52P-EI-24S-DC Switch is next-generation energy-saving Layer 3 switch with Twenty-four 10/100Base-TX ports, twenty-four 100Base-FX SFP ports, two 100/1000Base-X SFP ports, and two 1000Base-X SFP ports and Two models: AC model and DC model Forwarding performance: 13.2 Mps.
Huawei S3700-52P-EI-24S-DC Switch Product Overview
Huawei S3700-52P-EI-24S-DC Switch is a box device that is 1 U ψηλά. It adopts cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software to provide high-performance access and aggregation to an enterprise campus network. The S3700 is easy to install and maintain. With its flexible VLAN deployment, PoE capabilities, comprehensive routing functions, and capability to migrate to an IPv6 network, the S3700 helps enterprise customers build next-generation IT networks. Επιπλέον, the S3700 uses advanced reliability technologies such as stacking, VRRP, and RRPP, enhancing network reliability and diversity.
Huawei S3700 Switch is available in a standard version (SI), an enhanced version (EI), and an advanced version (HI). The SI version provides Layer 2 functions and basic Layer 3 functions. The EI version supports complex routing protocols and provides more functions than the SI version offers. In addition to the functions of EI, HI supports higher-specification MAC addresses, routes, and multicast table entries, along with powerful hardware capabilities.

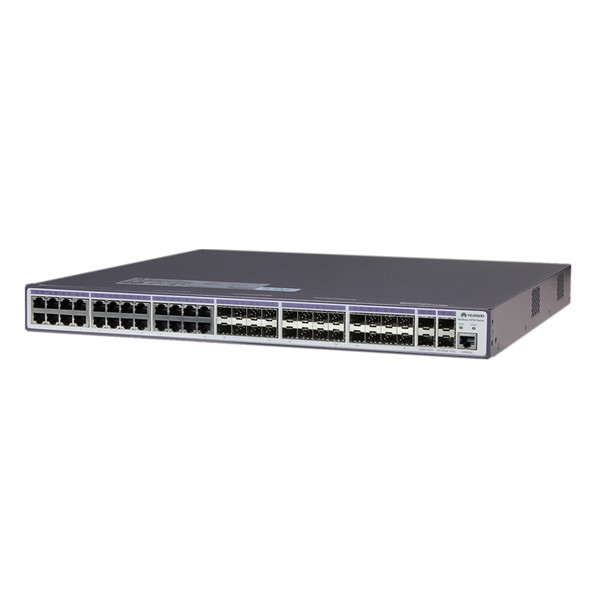

Huawei S3700-52P-EI-24S-DC Switch Product Pictures
Huawei S3700-52P-EI-24S-DC Switch Product Specifications
| Μάρκα | Huawei |
| Μοντέλο | S3700-52P-EI-24S-DC |
| product type | Fast Ethernet Switch |
| Application level | Three layers |
| Ρυθμός μετάδοσης | 10/100Mbps |
| Exchange method | Store-and-forward |
| Backplane bandwidth | 64Gbps |
| Packet forwarding rate | 13.2Mps |
| Πίνακας διευθύνσεων MAC | 16κ |
| Port structure | Non-modular |
| Αριθμός λιμένων | 52 |
| Port description | 48 10/100Base-TX ports, 2 100/1000Base-X SFP ports, 2 1000Base-X SFP ports |
| Transmission mode | Full duplex/half duplex adaptive |
| Τάση | DC 48–60V |
| Εξουσία | <38W |
| Product Size | 442×420×43.6mm |
| Environmental standards | Θερμοκρασία εργασίας: 0-50℃ |
| Υγρασία εργασίας: 10%-90% | |
| Θερμοκρασία αποθήκευσης: -5-55℃ | |
| Υγρασία αποθήκευσης: 10%-90% |
Huawei S3700-52P-EI-24S-DC Switch Product Features
- Support to limit the rate of port receiving and sending messages
- Support message redirection
- Support port-based traffic monitoring, support dual-speed three-color CAR function
- Υποστήριξη 8 priority queues per port
- Support WRR, DRR, SP, WRR, SP, DRR+SP and other queue scheduling algorithms
- Support 802.1p and DSCP priority remarking of packets
- Support L2 (Στρώμα 2)-L4 (Στρώμα 4) packet filtering function, and provide based on source MAC address, destination MAC address, source IP address
- Illegal frame filtering function of address, destination IP address, Λιμάνι, protocol, VLAN
- Support queue-based rate limiting and port Shapping function
- Multicast management Support 1K multicast group
- Support IGMP v1/v2/v3 Snooping and fast leave mechanism
- Support multicast VLAN and cross-VLAN multicast replication
- Supports multicast load sharing of bundled ports
Huawei S3700-52P-EI-24S-DC Switch and More Related Models
S3700-26C-HI
S3700-28TP-EI-24S-AC
S3700-28TP-EI-AC
S3700-28TP-EI-DC
S3700-28TP-EI-MC-AC
S3700-28TP-PWR-EI
S3700-28TP-PWR-SI
S3700-28TP-SI-AC
S3700-28TP-SI-DC
S3700-52P-EI-24S-AC
S3700-52P-EI-24S-DC
S3700-52P-EI-48S-AC
S3700-52P-EI-48S-DC
S3700-52P-EI-AC
S3700-52P-EI-DC
S3700-52P-PWR-EI
S3700-52P-PWR-SI
S3700-52P-SI-AC

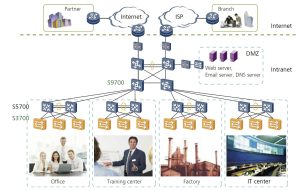

Huawei S3700-52P-EI-24S-DC Switch Product Applications
