Huawei S6720-16X-LI-16S-AC Switch

विवरण

Huawei S6720-16X-LI-16S-AC Switch is the next-generation simplified 10GE fixed switch with 16 10 Gig SFP+ and AC 110/220V. and can be used as 10GE access switches on campus networks and data center networks.

Huawei S6720-16X-LI-16S-AC Switch Product Overview

Huawei S6720-16X-LI-16S-AC Switch is the next-generation simplified 10GE fixed switch with 16 10 Gig SFP+ and AC 110/220V. and can be used as 10GE access switches on campus networks and data center networks. Huawei S6720-16X-LI-16S-AC Switch provides line-rate 10GE access ports and 40GE uplink ports. इसके अलावा, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.

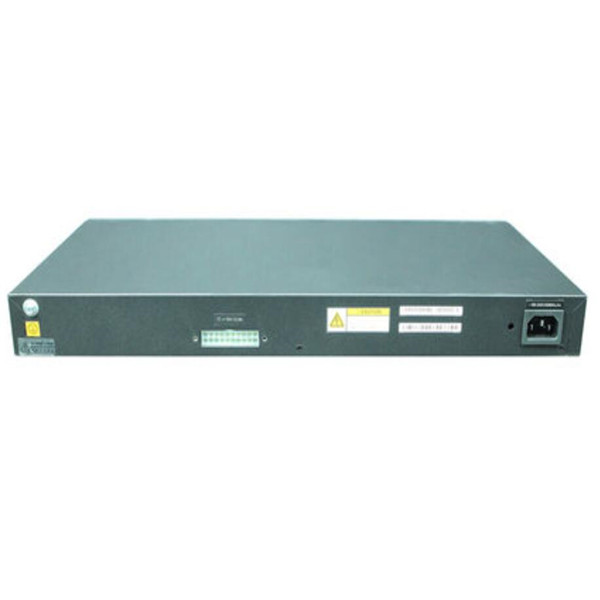

Huawei S6720-16X-LI-16S-AC Switch Product Pictures

Huawei S6720-16X-LI-16S-AC Switch Product Specifications

ब्रांड	हुवाई
Product model	S6720-16X-LI-16S-AC
स्विच करने की क्षमता	1.28 टीबिट/एस
अग्रेषण प्रदर्शन	240 सांसदों
स्थिर बंदरगाह	16 एक्स 10 जीई एसएफपी+ पोर्ट
MAC Address Table	32K MAC address entries
	MAC address learning and aging
	स्थिर, गतिशील, और ब्लैक होल मैक एड्रेस प्रविष्टियाँ
	स्रोत मैक पते के आधार पर पैकेट फ़िल्टरिंग
वीएलएएन सुविधाएँ	4,094 वीएलएएन
	Guest VLAN and voice VLAN
	मैक पते पर आधारित वीएलएएन असाइनमेंट, प्रोटोकॉल, आईपी ​​सबनेट, नीतियों, और बंदरगाह
	वीएलएएन मैपिंग
	Basic QinQ and selective QinQ
IPv4 Routing	Static routing, फाड़ना, and OSPF
	VRRP
	Policy-based routing
	Routing policies

Huawei S6720-16X-LI-16S-AC Switch Product Features

• Huawei S6720-16X-LI-16S-AC Switch supports DHCP snooping, which generates user binding entries. DHCP snooping discards invalid packets that do not match any binding entries, such as ARP spoofing packets and IP spoofing packets. This prevents hackers from using ARP packets to initiate attacks on campus networks. DHCP snooping trusted ports can be specified to ensure that users connect only to the authorized DHCP server.
• Huawei S6720-16X-LI-16S-AC Switch supports strict ARP learning. This feature prevents ARP spoofing attackers from exhausting ARP entries so that users can connect to the Internet normally. The S6720-LI supports IP source check to prevent DoS attacks caused by MAC address spoofing, IP address spoofing, and MAC/IP spoofing.
• Huawei S6720-16X-LI-16S-AC Switch supports centralized MAC address authentication and 802.1X authentication. It authenticates users based on statically or dynamically bound user information such as the user name, आईपी ​​पता, मैक पता, VLAN ID, port number, and flag indicating whether antivirus software is installed. वीएलएएन, QoS policies, and ACLs can be applied to users dynamically.
• Huawei S6720-16X-LI-16S-AC Switch can limit the number of MAC addresses learned on a port to prevent attackers from exhausting MAC address entries by using bogus source MAC addresses. This function minimizes packet flooding that occurs when MAC addresses of users cannot be found in the MAC address table.
