SIMCom SIM800 2G Module is a complete Quad-band GSM/GPRS solution in a SMT type

SIMCom SIM800 2G Module Product Overview

The module is designed in compact size of 24*24*3 मिमी, and so could fit into slim and compact demands. एक ही समय पर, it supports Quad-band 850/900/1800/1900MHz, and transmit Voice, SMS and data information with low power consumption. Featuring Bluetooth and Embedded AT. SIM800 2G Module allows total cost savings and fast time-to-market for customer applications.

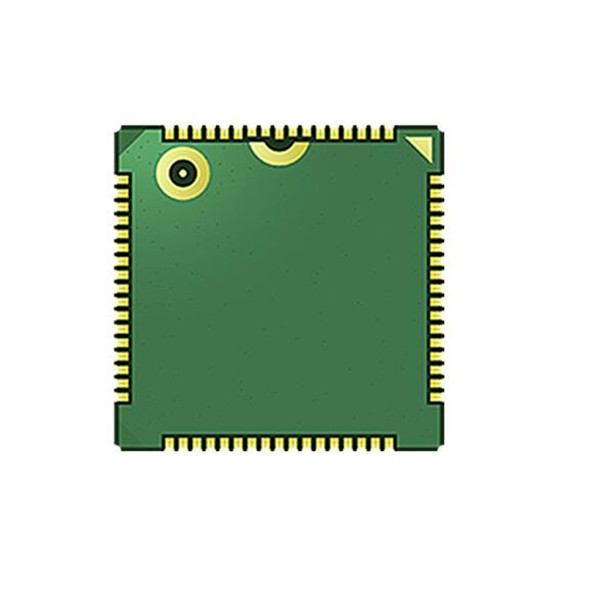

SIMCom SIM800 2G Module Product Pictures

SIMCom SIM800 2G Module price and specs ycictSIMCom SIM800C 2G Module price and specs ycict

SIMCom SIM800 2G Module price and specs new and original ycictSIM7500JC-PCIE कीमत और विशिष्टताएँ अच्छी कीमत cat1 मिनी pcie ycict

SIMCom SIM800 2G Module Product Specifications

ब्रांड सिमकॉम
नमूना SIMCom SIM800
बनाने का कारक LCC 68Pin
DIMENSIONS(मिमी) 24*24*3मिमी
वज़न 3.14जी
आपूर्ति वोल्टेज रेंज 3.4 ~ 4.4V
प्रचालन तापमान -40℃ ~ +85℃
फ़्रीक्वेंसी बैंड •Quad-band 850/900/1800/1900MHz•GPRS multi-slot class 12/10•GPRS mobile station class B
इंटरफेस •68 SMT pads including•Analog audio interface•PCM interface(वैकल्पिक)•SPI interface (वैकल्पिक)•RTC backup•Serial interface•USB interface•Interface to external SIM 3V/1.8V•Keypad interface•GPIO•ADC•GSM Antenna pad•Bluetooth Antenna pad Compatibility•AT cellular command interface
Specifications for GPRS Data •GPRS class 12: अधिकतम. 85.6 केबीपीएस (downlink/uplink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•PPP-stack•CSD up to 14.4 kbps•USSD•Non transparent mode
Specifications for SMS via GSM/GPRS •Point to point MO and MT•SMS cell broadcast•Text and PDU mode
सॉफ्टवेयर सुविधाएँ •0710 MUX protocol•Embedded TCP/UDP protocol•FTP/HTTP•MMS•E-MAIL•DTMF•Jamming Detection•Audio Record•TTS (वैकल्पिक)•Embedded AT (वैकल्पिक)•Java (वैकल्पिक)
Specifications for Voice •Tricodec– Half rate (HR)– Full rate (FR)– Enhanced Full rate (EFR)•Hands-free operatio(Echo suppression)
प्रमाणपत्र •CCCSRRC

SIMCom SIM800 2G Module and More 2G modules

R800C LCC 42Pin
SIM808 LCC 68Pin
SIM800C LCC 42Pin
SIM868E LCC+LGA 77Pin
SIM868 LCC+LGA 77Pin
SIM800 LCC 68Pin
SIM800H LGA 88Pin
SIM800F LCC 68Pin
SIM800C-DS LCC+LGA 77Pin

SIMCom SIM800 2G Module Product Applications
