Opis
Huawei GPUF Service Board is a 16 port GPON interface card applying for MA5800 X2 MA5800 X7 MA5800 X15 MA5800 X17 OLT system and gives GPON service access from ONT. GPHF can maximum access 16*128 GPON subscribers.
Huawei GPUF Service Board Product Overview
Huawei GPUF Service Board is 16-GPON Port Interface Card with C+ SFP module for MA5800 X2, X7, X15, X17 NG OLT system and support split ration 1:128
MA5800 can help operators cope with the development needs of “wider, faster and smarter” gigabit ultra-wide networks, and meet users’ ultimate service experience for 4K/8K/VR video; support future smart homes and all-optical parks At the same time, MA5800 can realize the unified carrying of multiple services such as home users, enterprise users, mobile bearers, and the Internet of Things to simplify the network architecture, reduce the number of CO computer rooms, and reduce operation and maintenance costs.

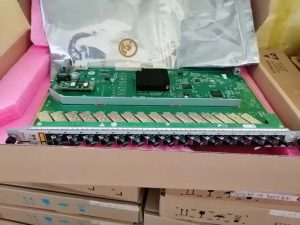

Huawei GPUF Service Board Product Pictures
Huawei GPUF Service Board Product Specifications
| Marka | Huawei |
| Model | GPUF |
| GPON priključak | 16-GPON priključak |
| Tip | C+ modul : Dvosmjerni optički modul s jednim vlaknom, klasa C+ |
| Radna valna duljina | Tx: 1490 nm, Rx: 1310 nm |
| Vrsta enkapsulacije | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimalna izlazna optička snaga | C+ modul : 3.00 dBm |
| Maksimalna izlazna optička snaga | C+ modul : 7.00 dBm |
| Maksimalna osjetljivost prijemnika | C+ modul : -32.00 dBm |
| Tip optičkog konektora | SC |
| Vrsta optičkog vlakna | Jednomodni |
| Preopterećenje optičke snage | C+ modul : -12.0 dBm |
| Omjer izumiranja | 8.2 dB |
| Dimenzije (Š x D x V) | 23.30 mm * 257.90 mm * 399.20 mm |
| Potrošnja energije | Statički: 25W; Maksimum:50W |
| Maksimalna veličina okvira | 2052 bajtova |
| Radna temperatura | -40°C do +65 °C |
Huawei GPUF Service Board Product Features
- Huawei 16-GPON Port Interface Card with C+ SFP module
- Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
- Support split ration 1:128
- Transmit Speed: 2.488Gbit/s
- Receive Speed: 1.244Gbit/s
- Interface Type: SC
- Transmit Wavelength: 1490nm
- Receive Wavelength: 1310nm
- C+ SFP Module Optical Power: 3 dBm~7 dBm
- Receiver Sensitivity: -32 dBm
- Maksimalan broj MAC adresa: 32768
Huawei GPUF Service Board Product and More Service Boards
| GPON | XG-PON | XGS-PON | XG-PON and GPON Combo | XGS-PON and GPON Combo | Luka | |
| MA5608T/MA5680T/MA5683T | XGBC | 4 | ||||
| GPBD/GPBH | XGBD | 8 | ||||
| GPFD | 16 | |||||
| MA5800 X2/X7/X15/X17 | XGHD | TWED/XSHD/TWHD | CGID/CGHD | CSHD | 8 | |
| GPLF/GPSF/GPUF/GPHF | XGSF | XSHF | CGHF | CSHF | 16 | |
Huawei GPUF Service Board Product Applications
