Opis

SIMcom SIM7600SA-H-M2 is LTE Cat 4 module supporting LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc and max 150Mbps downlink rate and 50Mbps uplink rate

SIMcom SIM7600SA-H-M2 Product Overview

SIMcom SIM7600SA-H-M2 adopts M.2 form factor and consists of a SIM7600-H series module and a M.2 adapter board. The model integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, and supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function.

U isto vrijeme, SIMcom SIM7600SA-H-M2 integrates main industrial standard interfaces, sa snažnom proširivošću, uključujući obilje sučelja kao što je UART, USB, GPIO, which is suitable formain loT applications such as telematics, nadzorni uređaji, CPE, industrijski usmjerivači, i daljinska dijagnostika itd.

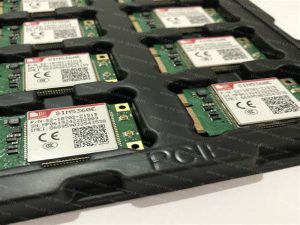

SIMcom SIM7600SA-H-M2 Product Picture

SIMcom SIM7600SA-H-M2 simcom module ycict SIMCOM CAT4 MODULESIMcom SIM7600SA-H-M2 SIM7600 SERIES YCICT SIMCOM

SIMcom SIM7600SA-H-M2 SIM7600 SERIES 4g moduleSIMcom SIM7600SA-H-M2 SIM7600 SERIES 4g module

SIMcom SIM7600SA-H-M2 Product Specifications

Model SIM7600SA-H-M2
Form Factor M.2
Dimenzija (mm) 42.0*31.4*3.8
Frekvencija LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD B40
WCDMA B1/B2/B5/B8
GSM 850/900/1800/1900MHz
Working Temperature -40℃ ~ +85 ℃
GNSS Neobavezno
napon 3.0~ 4.2
Potrošnja energije LTE 2.3
WCDMA, 3.3
DRX=9
GSM,BS_PA_MFRMS=2 2.8
LTE(Mbps) 150(DL)/50(UL)
HSPA+(Mbps) 42(DL)/5.76(UL)
WCDMA(Kbps) 384(DL)/384(UL)
GPRS/EDGE(Kbps) 236.8(DL)/236.8(UL)
Network protocol TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
Android RIL Android 5.0/6.0/7.0/8.0/9.0
USB upravljački program Microsoft Windows 7/8/10
Linux/Android
SIM clot 1.8V/3,0 V
UART ●
USB ●
PCM o
LED ●
WoWWAN ●
W_ONEMOGUĆI ●
2C ●
Diversity Receiver ●
Certifikacija RoHSREACHFCCNCCACMACE(CRVENA)Anatel

SIMcom SIM7600SA-H-M2 Product Features

  • 2 interface with strong compatibility
  • Multi-constellation GNSS receiver support
  • Prikladno za LTE, UMTS and GSM networks with global coverageAbundant software functions: NOGA, LBS, TLS
  • AT commands of the SIM7 600-H-M2 series are compatible with the SIM7500/SIM7600 series modules

SIMcom SIM7600SA-H-M2 Product and More M.2 form factor modules

SIM7600A-H-M2

SIM7600V-H-M2

SIM7600SA-H-M2

SIM7600E-H-M2

SIM7600NA-H-M2

SIM7600G-H-M2

SIMcom SIM7600SA-H-M2 Product Applications

SIMcom SIM7600SA-H-M2 SIMCOM SIM7600 SERIES YCICT
