Deskripsyon
HG8546M FTTH optical network terminal (ONT) is a indoor optical network terminal in Huawei FTTx solution with one GE port, three FE ports, one POTS port and one USB and WiFi 802.11 b/g/n.
HG8546M FTTH Product Overview
HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. Li ka konplètman satisfè bezwen ekipman ISP yo FTTBFTTHFTTO Kapasite transmisyon pèfòmans-wo efektivman garanti eksperyans sèvis vwa a., done, ak videyo wo-definisyon
HG8546M FTTH Product Pictures
HG8546M HUAWEI gen de vèsyon
| Model for Selection | LAN | WIFI | USB | TelePort | Firmware |
| HG8546M Opsyon 1 | 1GE+3FE | WI | WI | 1Mwen ka port | angle |
| HG8546M Opsyon 2 | 4FE | WI | WI | 1Mwen ka port | angle |
HG8546M FTTH Espesifikasyon pwodwi
| Modèl | HG8546M |
| Ekipman pou pouvwa | 12V,1.5A |
| Konsomasyon pouvwa (plen chaje) | ≤15W |
| Deskripsyon dimansyon (mm) (W*D*H) | 240*160*35mm |
| Pwa (nan konfigirasyon maksimòm) | ≤0.5kg |
| WIFI | Antèn 2 × 2, 5dBi ekstèn antèn |
| EIRP Max 25dBm | |
| VoIP | REN Max 5REN |
| Konektè 1x RJ11 | |
| Sonnen 65V RMS k ap sonnen vòltaj | |
| USB | Max 1A pou chak pò |
| Environmental requirements | Tanperati travay：0ºC ~ 50ºC |
| Tanperati depo：-40ºC ~ 70ºC | |
| Travay imidite：5%~ 90% Tanperati Depo：5%~ 95% pa gen kondansasyon | |
| Ethernet | Estanda;IEEE802.3 IEEE802.3au IEEE802.3x |
| Entèfas;1x 10/100/1000BASE-T+310/100Base-T RJ45 | |
| Oto negosyasyon | |
| Oto MDI/MDIX |
HG8546M FTTH Karakteristik pwodwi
- Klas B+
- Sansiblite reseptè: -27 dBm
- Surcharge pouvwa optik: -8 dBm
- Longèdonn: US 1310 nm, DS 1490 nm
- Filtè bloke longèdonn (WBF) nan G.984.5
- Kat fleksib ant GEM Port ak TCONT
- ki konsistan avèk SN oswa modpas otantifikasyon defini nan G.984.3
- Bi-direksyon FEC
- SR-DBA ak NSR-DBA
- Kalite B (single-homing & doub-homing)
- Ethernet pò ki baze sou etikèt VLAN ak retire tag
- 1:1 VLAN, N:1 VLAN, oswa VLAN transparan
- QinQ VLAN
- Limit sou kantite adrès MAC aprann
- Aprantisaj adrès MAC
- GE: Oto-adaptasyon 10 Mbit/s, 100 Mbit/s oswa 1000 Mbit/s
- FE: Oto-adaptasyon 10 Mbit/s, 100 Mbit/s
- 711A/m, G.729a/b ak G.722
HG8546M FTTH Plis Modèl
EPON/ GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*LAN Anglè Firmware
HG8310 EPON ONT, 1*LAN Anglè Firmware
HG8110 EPON ONT, 1*LAN + 1 * Vwa Anglè Firmware
HG8120 EPON ONT, 2*LAN + 1 * Vwa Anglè Firmware
HG8240 EPON ONT, 4*LAN+2*Vwa Anglè Firmware
HG8346R EPON ONT, 4*LAN+2*Vwa+WIFI Anglè Firmware
HG8245 EPON ONT, 4*LAN+2*Vwa+WIFI Anglè Firmware
GPON ONT
EG8120L GPON ak yon sèl pò GE, yon sèl pò POTS, ak yon pò FE.
HG8310M GPON ONT, 1*LAN Anglè Firmware
HG8010/HG8010C GPON ONT, 1*LAN Anglè Firmware
HG8311/HG8110/HG8110F GPON ONT, 1*LAN + 1 * VWA SIP mikrolojisyèl angle
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE English Firmware SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE English Firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE English Firmware SIP
HG8240/HG8240H GPON ONT, 4GE+2VOICE English Firmware SIP
HG8345R antèn entèn GPON ONT, 4FE+WIFI (antèn entèn)SIP firmwèr angle
HG8345R antèn ekstèn GPON ONT, 4FE+WIFI (antèn ekstèn)SIP firmwèr angle
HG8546M GPON ONT, 1GE+3FE+VOICE+WIFI, SIP firmwèr angle
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (antèn entèn)SIP firmwèr angle
HG8346R antèn ekstèn GPON ONT, 4FE+2VOICE+WIFI (antèn ekstèn)SIP firmwèr angle
HG8245C2 GPON ONT, 2GE+2FE+2VOICE+WIFI English Firmware SIP
HG8245 antèn ekstèn GPON ONT, 4GE+2VOICE+WIFI ( antèn ekstèn)koulè nwa angle SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI English Firmware SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV English Firmware SIP

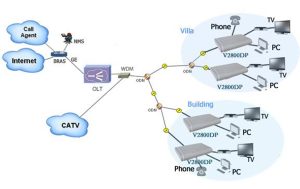

HG8546M FTTH Aplikasyon pou pwodwi
