Deskripsyon
Huawei AirEngine 8761-X1 is a next-generation Wi-Fi 6 (802.11rach) access point with built-in Smart Antennas, delivering a rate of 5.95 Gbit/s.
Huawei AirEngine 8761-X1 Overview
This access point is free of uplink bandwidth bottlenecks. Such strengths make it fit for high-bandwidth services such as HD video streaming, multimedia, and desktop cloud, providing high-quality wireless services for enterprises. An menm tan, AirEngine 8761-X1 can meet the growing demand of bandwidth-hungry video, increasing the numbers of Wi-Fi and IoT terminals, and support new use cases that demand multi-gigabit speeds like HD video and AR/VR applications. Built-in smart antennas enable always-on Wi-Fi signals for users, significantly enhancing users’ eksperyans san fil. An plis, the product supports WEP, WPA/WPA2-PSK, WPA3-SAE, WPA/WPA2-PPSK, WPA/WPA2/WPA3-802.1x, and WAPI authentication/encryption modes to ensure security of the wireless network. Yo itilize mekanis otantifikasyon an pou otantifye idantite itilizatè yo pou sèlman itilizatè otorize yo ka jwenn aksè nan resous rezo yo. Yo itilize mekanis chifreman an pou ankripte done ki transmèt sou lyen san fil pou asire ke itilizatè yo atann yo ka resevwa ak analize done yo sèlman..

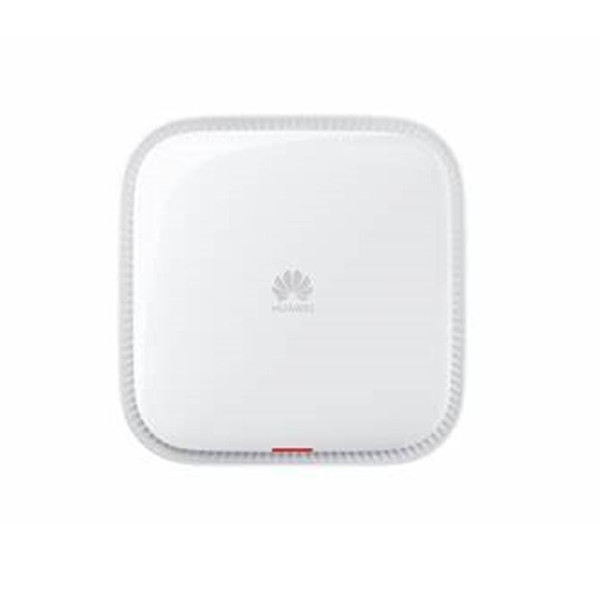

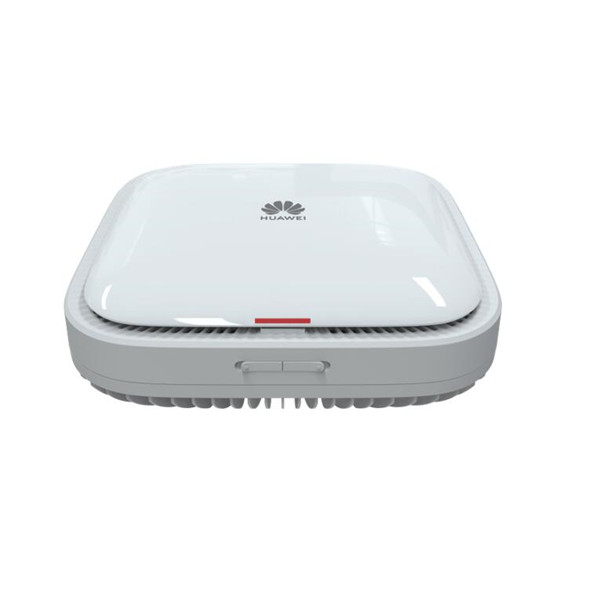

Huawei AirEngine 8761-X1 Pictures
Huawei AirEngine 8761-X1 Specifications
| Modèl | AirEngine 8761-X1 |
| Nimewo Pati | 02355JRG |
| Deskripsyon | AirEngine8761-X1 mainframe (11rach, indoor, 2.4G 4×4 + 5G 8×8 bann doub, antèn entelijan, 10GE+GE, USB, BLE) |
| Premye vèsyon sipòte | V200R022C10 |
| Dimansyon ( H x W x P) | 57 mm x 220 mm x 220 mm |
| Antre pouvwa | DC: 43.2 V pou 57.6 V |
| PoE ekipman pou pouvwa: in compliance with IEEE 802.3at | |
| Maksimòm konsomasyon pouvwa | 23.5 W (eksepte USB) |
| Remak: Konsomasyon aktyèl maksimòm pouvwa a depann de lwa ak règleman lokal yo. | |
| Kantite maksimòm Itilizatè yo | ≤ 1024 |
| Remak: Nimewo aktyèl la nan itilizatè yo varye selon anviwònman an. | |
| Tanperati Fonksyònman | -10 ° C a + 50 ° C |
| Kalite antèn | Antèn entelijan entegre |
| MIMO:Kouran espasyal | 2.4 GHz: 4×4:4; 5 GHz: 8×8:8 |
| Pwotokòl radyo | 802.11a/b/g/n/ac/ac Vag 2/ax |
| Pousantaj maksimòm | 5.95 Gbit/s |
| Tanperati depo [°C(°F)] | -40 ° C a + 70 ° C (-40°F pou +158°F) |
| Alontèm opere imidite relatif [RH] | 5% RH pou 95% RH |
| Altitid opere alontèm [m(ft.)] | –60 m pou +5000 m (–196.85 pye pou +16404.20 ft) |
| Presyon atmosferik [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Tè | Tè |
| USB | USB 2.0 |
| IoT plas | Pa sipòte |
| BLE | BLE5.2 |
| Nimewo radyo | 2 |
Huawei AirEngine 8761-X1 Features
- Built-in dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% greater coverage distance, realizing high-quality wireless coverage with zero blind spots
- 1 x 10GE electrical port + 1 x GE pò elektrik, allowing on-demand uplink 10GE/GE selection and meeting the current and future bandwidth requirements.
- Sipòte teknoloji kontwòl aplikasyon entelijan epi li ka aplike kontwòl visualized sou Kouch 4 nan Kouch 7 application
- Sipòte WIDS/WIPS, epi yo ka kontwole, idantifye, defann, kontwa, epi fè jesyon rafine sou aparèy yo vakabon, bay garanti sekirite pou anviwònman koòdone lè ak transmisyon done san fil.
Huawei AirEngine 8761-X1 and More Models
AirEngine 8771-X1T
AirEngine 8760-X1-PRO
AirEngine 8761-X1
AirEngine 6760-X1E
AirEngine 6760-X1
AirEngine 6761-21E
AirEngine 6761-21T
AirEngine 6761-22T
AirEngine 6761-21
AirEngine 6761S-21
AirEngine 6761S-21T
Huawei AirEngine 8761-X1 Applications
