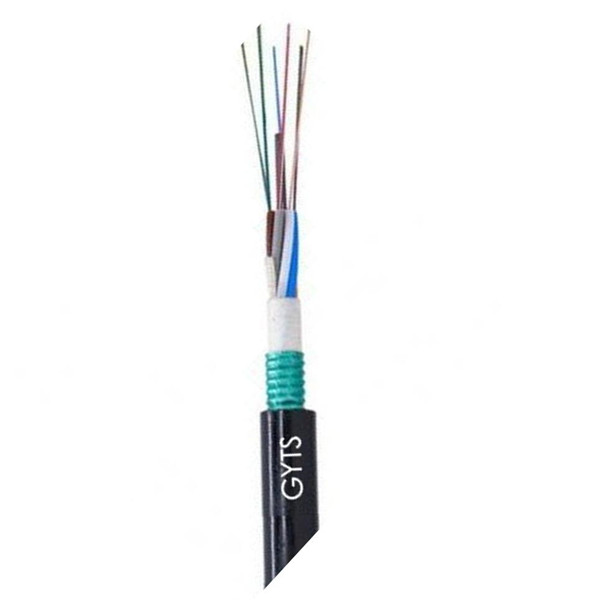

GYTS Light-armored Cable is Stranded Loose Tube Light-armored Cable（GYTS）

GYTS Light-armored Cable Product Overview

It is outdoor fiber cable with corrugated steel tape armored. GYTS supports core network, access network and FTTH system, mostly used in outdoor duct and aerial applications. With water-blocking materials filled, ensure the compactness and longitudinal water-blocking performance. With fiber counts from 2 cores to 432cores for both single mode and multimode.

PBT loose tube of 2-12 serat, Tube thickness: 0.3±0.05mm, Diameter: 2.1±0.1um, Serat (Fiber characteristic), Cladding diameter: 125.0±0, Fiber characteristics: Diameter: 242±7 um, UV color fiber: Standard chromatogram. Central Strength member: steel wire with Diameter: 1.6mm. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently, it has a Corrugated steel Thickness: 0.4 ±0.015, Steel thickness: 0.15±0.015, Black MDPE out jacket, Jacket thickness: 1.8 ±0.20mm and Diameter: Diameter Kabel: 10.5±0.20mm.

We offer customized service which includes single mode and multimode fiber optic cable which is for long distance and local area network communication.

GYTS Light-armored Cable Product Pictures

GYTS Light-armored Cable price and specs good quality ycict GYTS Outdoor Optical Cable price and specs ycict

GYTS Light-armored Cable new and origianl optical fiber ycict Harga dan spesifikasi kabel GYXTW Kabel lapis baja ringan GYXTW ycict

GYTS Light-armored Cable Product Specifications

		G.652	G.655	50/125m	62.5/125m
Atenuasi (+20℃)	@850nm			≤3,0 dB/km	≤3,0 dB/km
	@1300nm			≤1,0 dB/km	≤1,0 dB/km
	@1310nm	≤0,36 dB/km	≤0,40 dB/km
	@1550nm	≤0,22 dB/km	≤0,23dB/km
Bandwidth (Kelas A)	@850nm			≥500MHz·km	≥200MHz·km
Bandwidth (Kelas A)	@1300nm			≥1000MHz·km	≥600MHz·km
Bukaan Numerik				0.200±0,015NA	0.275±0,015NA
Panjang Gelombang Pemutus Kabel		≤1260 nm	≤1480nm

Jenis Kabel	Jumlah Serat	Tabung	Pengisi	Diameter Kabel mm	Berat Kabel kg/km	Kekuatan Tarik Jangka Panjang/Pendek N	Resistensi Hancur Jangka Panjang/Pendek T/100mm	Radius Lentur Statis/Dinamis mm
GYTS-2~6	2~6	1	4	10.2	116	600/1500	300/1000	10H/20D
GYTS-8~12	8~12	2	3	10.2	116	600/1500	300/1000	10H/20D
GYTS-14~18	14~18	3	2	10.2	116	600/1500	300/1000	10H/20D
GYTS-20~24	20~24	4	1	10.2	116	600/1500	300/1000	10H/20D
GYTS-26~30	26~30	5	0	10.2	116	600/1500	300/1000	10H/20D
GYTS-32~36	32~36	6	0	10.6	129	1000/3000	300/1000	10H/20D
GYTS-38~48	38~48	4	1	11.2	141	1000/3000	300/1000	10H/20D
GYTS-50~60	50~60	5	0	11.2	141	1000/3000	300/1000	10H/20D
GYTS-62~72	62~72	6	0	12	159	1000/3000	300/1000	10H/20D
GYTS-74~84	74~84	7	1	13.6	209	1000/3000	300/1000	10H/20D
GYTS-86~96	86~96	8	0	13.6	209	1000/3000	300/1000	10H/20D
GYTS-98~108	98~108	9	1	15.4	232	1000/3000	300/1000	10H/20D
GYTS-110~120	110~120	10	0	15.4	232	1000/3000	300/1000	10H/20D
GYTS-122~132	122~132	11	1	17.2	280	1000/3000	300/1000	10H/20D
GYTS-134~144	134~144	12	0	17.2	280	1000/3000	300/1000	10H/20D

GYTS Light-armored Cable Features

Hingga 144 fiber cores
Metal strength member provides excellent strain performance.
Low dispersion and attenuation
With small cable diameter, light cable weight, easily to lay
The jacket also can be made of HFFR, which cable model is GYTZS
Suhu Operasional: -40 ~ +60℃
The loose tube stranding technology make the fibers have good secondary excess length and allow
The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
The armoring of corrugated steel tape make cable have nice properties of moisture resistance and crush resistance
