説明
Huawei ES5M0PSD1700 Power Module is 170 W DC Power Module for S6720S-26Q-EI-24S-AC, S6720S-26Q-EI-24S-DC
Huawei ES5M0PSD1700 Power Module Product Overview
Huawei ES5M0PSD1700 Power Module is 170 W DC Power Module for S6720S-26Q-EI-24S-AC, S6720S-26Q-EI-24S-DC
Under normal circumstances, the main functions of switch power supply include physical addressing, network topology, error checking, frame sequence and flow control. 加えて, the switch also has some new functions, such as support for virtual networks and link aggregation. サポート, and some even have a firewall function. So what is the role of the switch power supply? From the perspective of OSI architecture, the switch power supply belongs to the first layer of physical layer equipment, and the switch belongs to the second layer of OSI data link layer equipment.
That is to say, the hub only plays the role of synchronization, amplifying and shaping the data transmission. In terms of working mode, the switch power supply is a broadcast mode, which means that when a certain port of the hub is working, other ports can listen to information, which is prone to broadcast storms. When the network is large, the network performance will be greatly affected. .

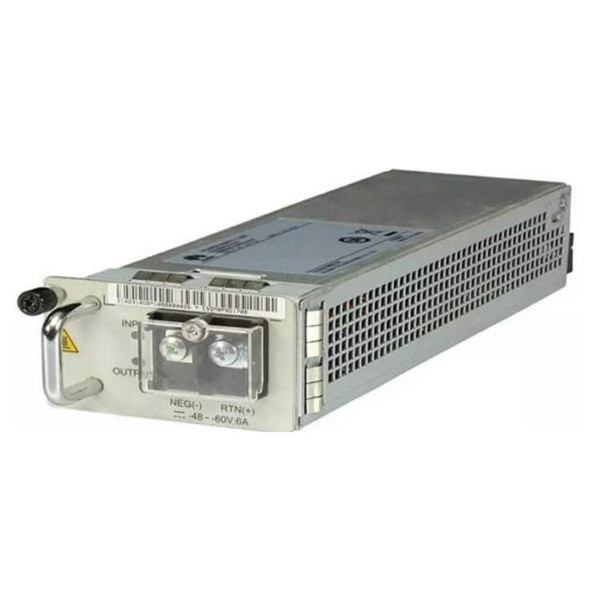

Huawei ES5M0PSD1700 Power Module Product Pictures
Huawei ES5M0PSD1700 Power Module Product Specifications
| アイテム | 説明 |
| ブランド | ファーウェイ |
| 部品番号 | 02310GBM |
| モデル | ES5M0PSD1700 |
| 寸法 (高さ×幅×奥行き) | 40 mm× 70 mm× 205 んん (1.6 で. バツ 2.8 で. バツ 8.1 で。) |
| 重さ | < 1.0 kg (2.20 ポンド) |
| 定格入力電圧範囲 | -48 VDC～ -60 直流電圧 |
| 最大入力電圧範囲 | -36 VDC～ -72 直流電圧 |
| Input current | 6:00 午前 |
| Maximum output current | 14.2 あ |
| 定格出力電圧 | 12 V |
| Maximum output power | 170 W |
Huawei ES5M0PSD1700 Power Module Product Features
- Automatic line loss compensation;
- Voltage and current priority function;
- Voltage and current slope can be set;
- Slow rise and fall function of voltage output;
- The sequence function can reach 100 steps, and the sequence file supports links;
- The efficiency of the whole machine is higher than 93%;
- High-voltage isolated, digital/analog composite signal monitoring and control port (オプション);
- The communication interface comes standard with LAN, USB (serial port), and optional RS485, CAN or GPIB;
- The communication protocol supports SCPI and ModBus;
- Provide communication programming manual, SDK development kit and demo host computer software;
- TFT color LCD display, Chinese and English menu interface;
- Overvoltage, overcurrent, overpower, overtemperature, undervoltage, reverse connection and other comprehensive protection functions.

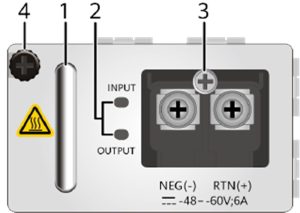

Huawei ES5M0PSD1700 Power Module Product Panel
| 1. Handle | 2. Power status indicator | 3. DC power terminal | 4. Captive screw |
Huawei ES5M0PSD1700 Power Module Product And More Power Unit
150W AC電源モジュール (ES0W2PSA0150)
150W DC電源モジュール (ES0W2PSD0150)
170W AC電源モジュール (W0PSA1701)
170W DC電源モジュール (ES5M0PSD1700)
260W DC電源モジュール (PDC260S12-DL)
300W AC電源モジュール (PAC300S12-CL)
350W DC電源モジュール (PDC-350WA-B)
500W DC電源モジュール (LS6W2PSD0500)
600W AC電源モジュール (PAC-600WA-B)
600W AC電源モジュール (PAC600S12-CB)
500W AC電源モジュール (W0PSA5000)
580W AC PoE Power Module (W2PSA0580)
650W DC PoE電源モジュール (PDC-650WA-BE)
1000W AC PoE電源モジュール (PAC1000D5412)
1000W DC電源モジュール (PDC1000S12-DB)
1150W AC PoE電源モジュール (W2PSA1150)
870W PoE power module (LS5W2PSA0870, 15A rectifier module)
Huawei ES5M0PSD1700 Power Module Product Applications
