ZXHN F609 FTTH

Description

ZXHN F609 FTTH is Router Modem GPON Optical Terminal with 4GE Port 1POTS Port 1USB Port and WiFi

Model	Configuration					Dimension/pcs
	LAN	Telephone	Wifi	PPPOE	Firmware
F609	4GE	1pots	2.4G	yes	English	176*138.5*28mm/0.5kgs

ZXHN F609 FTTH Product Overview

ZXHN F609 FTTH is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colourful, individualized, convenient and comfortable triple-play services including voice, video (IPTV/CATV) and high-speed internet access. it supports desktop mounting, wall mounting and network cabinet mounting.

F609 FTTH is designed for FTTH scenarios. With its home gateway technology, ZTE F609 FTTH represents a new-generation home network center that meets the full-service needs of high-end users by delivering high-speed Internet,

high-quality voice and video (IPTV), reliable wireless access and convenient network storage services.

ZXHN F609 FTTH complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink at the network side, and provides four GE ports, two POTS ports, one 802.11b/g/n(2*2 @2.4G Hz) Wi-Fi interface, one USB interface, and one RF interface at the user side. Home users can easily access voice services, video services, CATV service and many other kinds of high-speed broadband services by the ZXHN F668’s rich interfaces.

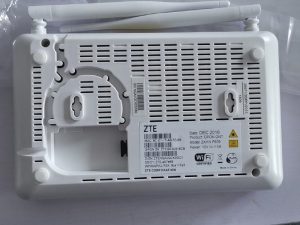

ZXHN F609 FTTH Product Pictures

ZXHN F609 FTTH Product Specifications

Model	ZXHN F609
User Ports	4GE + 1TEL+USB +WIFI 2.4G
Application	FTTH FTTB FTTX Network
GPON Interface	1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Operation Modes	Bridge, Router, AP
Wavelength for downstream	1480 nm – 1500 nm
Wavelength for upstream	1290 nm – 1330 nm
Sensitivity	-28 dBm
Power Consumption	7 W
Dimensions	220 mm x 34 mm x 187 mm
Working temperature and humidity	0°C – 40°C, 5% – 95%
Power	12 V DC
GPON features	8x T-CONT, 32 GEM portů
Support	VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management	Local (WEB), OMCI, TR069

ZXHN F609 FTTH Product Features

• Supported service: VoIP, Internet, IPTV, CATVGPON: 8 T-CONTs, 32 GEM Ports
• VLAN: 802.1Q, 802.1P, 802.1ad
• MAC address table: 1k
• L3 function: DHCP server/Client, DNS Client, NATlPv6: Dual Stack, DS-Lite
• VolP: SIP/H.248, G.71 1/G.722/G.729, T.30/T .38Wi-Fi: 4 SSIDs, 2×2 MIMO, WPS
• Wi-Fi authentication: Shared key, 128-bit WEP,WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSKMulticast: IGMP v1/v2 Snooping/Proxy, MLD v1Snooping
• Multicast group per user port: 256
• QoS: service flow classification based on physicalport, MAC address, VL .AN ID, VLAN priority level,IP address; SP/W RR/SP+WRR
• Management: local web management, OMCI,TR069

ZXHN F609 FTTH Product and More Related Models

EPON ONT

F401 EPON ONT, 1 LAN English Firmware

F411 EPON ONT, 1 L AN+ 1*VOICE English Firmware SIP

F412 EPON ONT, 2 LAN+VOICE English Firmware SIPF

F420 EPON ONT, 4 LAN+ 2VOICE English Firmware SIP

F460 EPON ONT, 4 L AN+ 2VOICE+WIFI English Firmware SIP

F427 EPON ONT, 4 L AN+ 2VOICE +WlFI English Firmware SIPZTE GPON ONT

GPON ONT

F601 GPON ONT, 1 LAN English Firmware

F612 GPON ONT, 2 L AN+VOICE English Firmware SIP

F600 GPON ONT, 4 L AN English Firmware

F620 GPON ONT, 4 L AN+2VOICE English Firmware SIP

F620G GPON ONT, 4 GE+2VOICE English Firmware SIP

F660 GPON ONT, 4 L AN+ 2VOICE+WlFI+USB English Firmware SIP

F609 GPON ONT, 4 GE+2VOlCE+WlFI+USB English Firmware SIP

F660 V6.0 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB English Firmware SIP

F625 GPON ONT, 4 LAN+2VOICE+RF(CATV) English Firmware SIP

F668 GPON ONT, 4 L AN+2VOICE+RF(CATV) +WlFI English Firmware SIP

F673A v9 GPON ONU 4GE+1tel +USB+WIFI dual band ac wifi 2.4G &5G

F670L GPON ONU 4GE+1tel +USB+WIFI dual band ac wifi 2.4G &5G

F680 GPON ONU GPON 4GE+1TEL+2.4G&5.0G WIFI+2USB

ZXHN F609 FTTH Product Application
