SIMCom A7600C1-SE 4G Module

SIMCom A7672S 4G Module
SIMCom SIM7500A LGA Module
Category: Tags: ,

Description

SIMCom A7600C1-SE 4G Module is a LTE Cat 1 module in LCC+LGA form factor with LTE-TDD/LTE-FDD/GSM*/GPRS*/EDGE* delivering maximum 10Mbps downlink rate and 5Mbps uplink rate.

SIMCom A7600C1-SE 4G Module Product Overview

SIMCom A7600C1-SE 4G Module is compatible with SIM5320/SIM5360 series (UMTS/HSPA+ modules), and SIM7600/SIM7600-H series (LTE modules), so it enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs. At the same time, A7600C1 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, and remote diagnostics etc. Moreover, the module supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function.

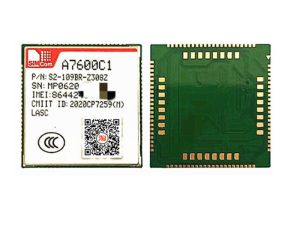

SIMCom A7600C1-SE 4G Module Product Pictures

SIMCom A7600C1-SE 4G ModuleSIMCom A7672E 4G Module lte module ycict

SIMCom A7600C1-SE 4G Module price and specs ycictSIMCom A7602SA-H 4G Module cat4 module ycict

SIMCom A7600C1-SE 4G Module Product Specifications

Brand SIMCom
Model SIMCom A7600C1-SE
Form factor  LCC+LGA
Frequency Bands LTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B3/B5/B8
GSM/GPRS/EDGE 900/1800 MHz
Supply Voltage 3.4V ~ 4.2V, Typ: 3.8V
Operation temperature  -40℃ ~ +85℃
Dimensions 30.0*30.0*2.5mm
Weight 4.6±0.1g
Data Transfer LTE Cat 1:
Uplink up to 5Mbps
Downlink up to10Mbps
EDGE: Uplink/Downlink up to 236.8Kbps
GPRS: Uplink/Downlink up to 85.6Kbps
Interfaces USB2.0 UART (U)SIM card(1.8V/3V ) PCM*
MMC/SD Keypad* LCM* Camera*
ADC I2C GPIO Antenna: Primary
Other Features USB Driver for Microsoft Windows 7/8/10
USB Driver for Linux /Android
RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
Firmware update via USB/FOTA
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTP/DNS
RNDIS/PPP/ECM SMS SSL Wifi-scan*
Certifications 3C/SRRC/NAL RoHS#/REACH#

SIMCom A7600C1-SE 4G Module Product Features

  • LCC+LGA form factor with abundant interfaces
  • Suitable for Asian Region Networks
  • Abundant software functions: FOTA, LBS, SSL
  • Offer high cost-performance

SIMCom A7600C1-SE 4G Module Product and More Models

A7672G LCC+LGA
A7670E LCC+LGA
A7608SA-H LCC+LGA
A7676E LCC+LGA
A7672X LCC+LGA
A7672S LCC+LGA 85Pin
A7672E LCC+LGA 85Pin
A7672SA LCC+LGA 85Pin
A7602E-H LCC+LGA 163Pin
A7602SA-H LCC+LGA 163Pin
A7600E-H LCC+LGA
A7600C1 LCC+LGA 119Pin
SIM7600G R2 LCC+LGA
SIM7600G-H R2 LCC+LGA
A7600E LCC+LGA
SIM7600X LCC/LCC+LGA 87/119Pin
SIM7500X LGA 56Pin
SIM7600X-H-PCIE Mini Pcie
SIM7600X-PCIE Mini Pcie
SIM7600X-H LCC/LCC+LGA 87/119Pin
SIM7600X-H-M2 M.2
SIM7500-PCIE Series Mini Pcie

SIMCom A7600C1-SE 4G Module Product Applications
