Descriere

Huawei S6720-26Q-LI-24S-AC Switch is next-generation simplified all-10 GE fixed switch with 24 X 10 Porturi GE SFP+ 2 X 40 Porturi GE QSFP+

Huawei S6720-26Q-LI-24S-AC Switch Product Overview

Huawei S6720-26Q-LI-24S-AC Switch is next-generation simplified 10GE fixed switch with 24 x porturi SFP+ 10GE, 2 x 40GE QSFP+ ports and Built-in AC power supply and RPS. It can be used as 10GE access switch on campus networks and data center networks. în plus, the switch provides line-rate 10GE access ports and 40GE uplink ports. What’s more, S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, de încredere, manageable, and secure campus and data center networks.

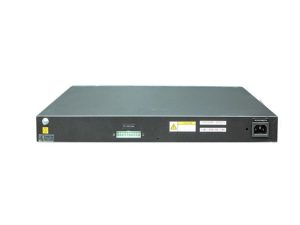

Huawei S6720-26Q-LI-24S-AC Switch Product Pictures

Huawei S6720-26Q-LI-24S-AC Switch price and specs ycictHuawei S6720-26Q-LI-24S-AC Switch price and specs huawei S6720 switch ycict

Huawei CloudEngine S5731-H24HB4XZ price and specs huawei switch ycictHuawei CE 6857F-48S6CQ huawei CE6800 Switch ycict

Huawei S6720-26Q-LI-24S-AC Switch Product Specifications

Model S6720-16X-LI-16S-AC
S6720S-16X-LI-16S-AC
Capacitatea de comutare 1.28 Tbit/s
Performanță de redirecționare 240 Mps
Porturi fixe 24 X 10 Porturi GE SFP+ 2 X 40 Porturi GE QSFP+
MAC Address Table 32K MAC address entries
Învățarea și îmbătrânirea adresei MAC
Static, dinamic, and black hole MAC address entries
Filtrarea pachetelor pe baza adreselor MAC sursă
Caracteristici VLAN 4,094 VLAN-uri
Guest VLAN and voice VLAN
Atribuire VLAN bazată pe adrese MAC, protocoale, subrețele IP, politici, și porturi
Maparea VLAN
Basic QinQ and selective QinQ
IPv4 Routing Static routing, RIP, and OSPF
VRRP
Policy-based routing
Routing policies
Interoperabilitate VLAN-Based Spanning Tree (VBST) (interoperand cu PVST, PVST+, și RPVST)
Protocol de negociere de tip link (LNP) (similar cu DTP)
Protocolul de management central VLAN (VCMP) (similar cu VTP)

Huawei S6720-26Q-LI-24S-AC Switch Product Features

  • To provide sufficient bandwidth for users, more and more servers use 10GE network adapters. The S6720-LI has the highest density of 10GE ports and largest switching capacity among counterpart switches. Each S6720-LI provides up to 32 line-rate 10GE ports and two line-rate 40GE QSFP+ ports.
  • Ports of the S6720-LI support GE access and 10GE access and can identify optical module types, maximizing the return on investment and allowing users to flexibly deploy services.
  • Provide multiple security measures to defend against Denial of Service (Dintre) atacuri, as well as attacks on networks or users. DoS attacks include SYN flood, Teren, Ştrumf, și atacurile de inundații ICMP. Attacks on networks refer to STP BPDU/root attacks. Attacks on users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users.
  • Support DHCP snooping, which generates user binding entries. DHCP snooping discards invalid packets that do not match any binding entries, such as ARP spoofing packets and IP spoofing packets. This prevents hackers from using ARP packets to initiate attacks on campus networks. DHCP snooping trusted ports can be specified to ensure that users connect only to the authorized DHCP server.

Huawei S6720-26Q-LI-24S-AC Switch and More Switches

S6720-26Q-SI-24S-AC
S6720S-26Q-SI-24S-AC
S6720-32X-SI-32S-AC
S6720-32C-SI-AC
S6720-32C-SI-DC
S6720-32C-PWH-SI-AC
S6720-32C-PWH-SI
S6720-56C-PWH-SI-AC
S6720-56C-PWH-SI
S6720-52X-PWH-SI
S6720-16X-LI-16S-AC
S6720S-16X-LI-16S-AC
S6720-26Q-LI-24S-AC
S6720S-26Q-LI-24S-AC
S6720-32X-LI-32S-AC
S6720S-32X-LI-32S-AC

Huawei S6720-26Q-LI-24S-AC Switch Ordering Info

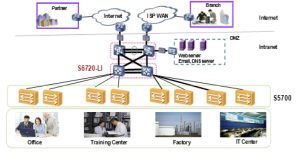

Huawei S6720-26Q-LI-24S-AC Switch Prouct Applications

S6720-26Q-LI series switch price and specs ycict





    Îmi pare rău, nici un atașament disponibil !
