AN5506 02 FG HIM

AN5506 04 ŠTYRI DESAŤ
SKU: AN5506 02 FG HIM Kategória: Tagy: ,

Popis

AN5506 02 FG ONU is an optical terminal unit with 1GE+1 FE + 1 VOIP and WiFi with an external antenna. This model is used together with the OLT equipment to make up a GPON system and access multiple services for users.

AN5506 02 FG ONU Product Overview

AN5506 02 FG ONU is manufactured and developed by FiberHome. They are adequately managed with features such as high bandwidth, vysoká spoľahlivosť, low power consumption and meet user requirements to access broadband, hlas, údajov, video, atď. This particular model has a WiFi module。

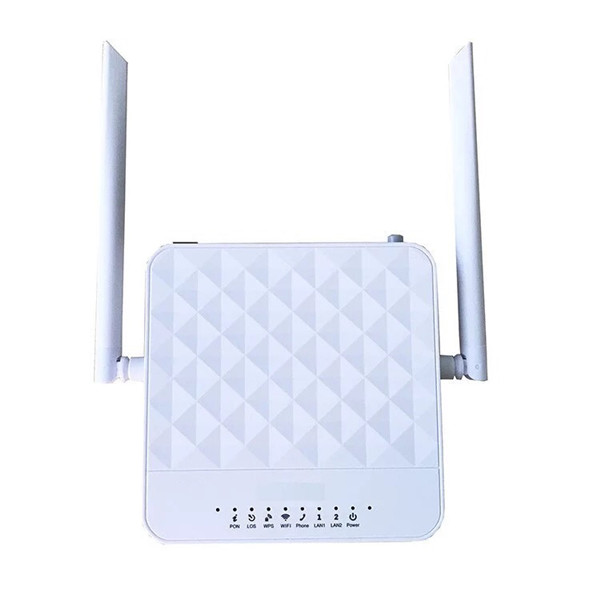

AN5506 02 FG ONU Product Pictures

Fiberhome AN5506 02 FG ONU YCICTFiberhome AN5506 02 FG ONU YCICT

Fiberhome AN5506 02 FG ONU YCICT 1GE 1 POT YCICT NEW Fiberhome AN5506 02 FG ONU YCICT NEW AND ORIGINAL ENGLISH

AN5506 02 FG ONU Product Specifications

Model AN5506 02 FG HIM
Port 1GE+1 FE + 1 VOIP WiFi
Rozmery 28mm × 144mm × 144mm (H × W × D) (not including antennas)
Wall mounting hole distance 76mm
Hmotnosť About 240g
Power supply parameter DC 12 V/1A
Power consumption parameters Static power consumption 3.5W
Maximum power consumption 6.5W
Environment parameters Operating temperature -5℃ to 45℃
Storage temperature -40℃ to 70℃
Environmental humidity 10% do 90% (no condensation)

AN5506 02 FG ONU Product Features

  1. Možnosť prístupu GPON

Conforms to ITU-T G.984 series of standards, with good interoperability.

Provides large-capacity GPON transmission bandwidth: supports 2.5 Gbit/s for the downlink rate and 1.25 Gbit/s for the uplink rate.

Supports the DBA (Dynamic Bandwidth Allocation) algorithm.

Supports long-haul transmission. The maximum transmission distance can reach 20 km.

  1. Abundant service types

Fiberhome AN5506 02 FG ONU provides abundant physical interfaces on the subscriber side to access multiple services such as Internet access, video and voice services.

  1. Wi-Fi wireless access

The equipment provides Wi-Fi wireless access based on IEEE 802.11 b/g/n to set up a safe and reliable wireless network for users.

Compatible with IEEE 802.11 b/g/n and passed Wi-Fi Alliance authentication, with good compatibility with other WLAN devices.

Supports four SSIDs so that users can set different wireless networks as needed.

Supports multiple authentications and encryption modes to provide users with safe and reliable wireless access mode.

AN5506 02 FG ONU and More Fiberhome Models

Typ AN5506-02-D AN5506-04-D AN5506-02-F
H/W/D 26× 112 × 112 36×211×154 26× 112 × 112
Uplink rozhranie GPON GPON GPON
Downlink rozhranie 1*GE+1*FE+WiFi 4*GE+WiFi 1GE+1FE+1POTS+WiFi
WiFi Frequency 2.4G 2.4G 2.4G
Zdroj AC：220V AC：220V AC：220V
DC:12V/1A DC:12V/1A DC:12V/1.5A
Moc ≤6W ≤ 10 W ≤7W
Ochrana pred bleskom Výkon 4KV, užívateľské rozhranie 1,5KV Výkon 4KV, užívateľské rozhranie 1,5KV Výkon 4KV, užívateľské rozhranie 1,5KV
Prevádzková teplota -5℃～45℃ -5℃～45℃ -5℃～45℃
Okolitá vlhkosť ～90 % ～90 % ～90 %
Typ AN5506-04-F AN5506-04-FA AN5506-04-FAT
H/W/D 36×211×154 36×211×154 37×252×178
Uplink rozhranie GPON GPON GPON
Downlink rozhranie 4*GE+2*POTS+ WiFi 4*GE+2*POTS+ WiFi 4*GE+2*POTS+ WiFi
WiFi Frequency 2.4G 2.4G(2*2MIMO) 2.4G(3*3MIMO)
5G(2*2MIMO) 5G(3*3MIMO)
Zdroj AC：220V AC：220V AC：220V
DC:12V/1.5A DC:12V/2.5A DC:12V/2.5A
Moc ≤12W ≤16W ≤18W
Ochrana pred bleskom Výkon 4KV, užívateľské rozhranie 1,5KV Výkon 4KV, user interface 1.5KV Výkon 4KV, užívateľské rozhranie 1,5KV
Prevádzková teplota -5℃～45℃ -5℃～45℃ -5℃～45℃
Okolitá vlhkosť ～90 % ～90 % ～90 %

AN5506 02 FG ONU Applications

Fiberhome AN5506 02 FG ONU YCICT
