Huawei CE5850-48T4S2Q-EI Switch is a next-generation, high-density Gigabit Ethernet switch for data centers and high-end campus networks, which provides 48-Port GE RJ45, 4-Port 10GE SFP+, 2-Port 40GE QSFP+
Huawei CE5850-48T4S2Q-EI Switch Product Overview
The switch has an advanced architectural design with the industry’s highest density of GE access ports. CE5800 is also the first Gigabit Ethernet access switch to provide 40GE uplink ports. By using Huawei VRP8 software platform, CE5850-48T4S2Q-EI supports Transparent Interconnection of Lots of Links (TRILL) and has a high stacking capability (up to 16-member switches in a stack system). यसबाहेक, airflow direction (अगाडि-देखि-पछाडि वा पछाडि-देखि-अगाडि) can be changed, and it can also be used as aggregation or access switches for enterprise campus networks. CE5800 supports Super Virtual Fabric (SVF), which can virtualize multiple homogeneous or heterogeneous physical switches into one logical switch to simplify network management and improve reliability. SVF implements vertical extension of heterogeneous switches and virtualizes multiple leaf switches into remote cards of the spine switch, making it easier to install cables in equipment rooms and manage devices.

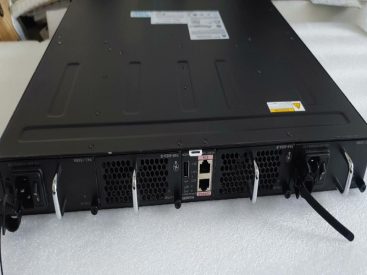

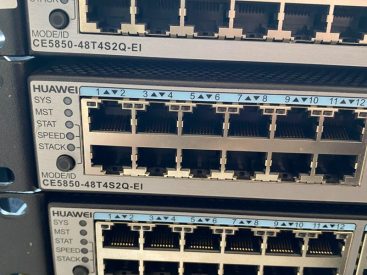

Huawei CE5850-48T4S2Q-EI Switch Product Pictures
Huawei CE5850-48T4S2Q-EI Switch Product Specifications
| वस्तु | CE5855-48T4S2Q-EI | CE5855-24T4S2Q-EI | CE5850-48T4S2Q-HI | CE5850-48T4S2Q-EI | CE5810-48T4S-EI | CE5810-24T4S-EI |
| पोर्टहरू | 48*10/100/1000BASE-T, 4*10GE SFP+, and 2*40GE QSFP+ | 24*10/100/1000BASE-T, 4*10GE SFP+, and 2*40GE QSFP+ | 48*10/100/1000BASE-T, 4*10GE SFP+, and 2*40GE QSFP+ | 48*10/100/ 1000BASE-T, 4*10GE SFP+, and 2*40GE QSFP+ | 48*10/100/ 1000BASE-T and 4*10GE SFP+ | 24*10/100/ 1000BASE-T and 4*10GE SFP+ |
| स्विच गर्ने क्षमता | 336 Gbit/s | 288 Gbit/s | 336 Gbit/s | 336 Gbit/s | 176 Gbit/s | 128 Gbit/s |
| Forwarding performance | 252 Mps | 216 Mps | 252 Mps | 252 Mps | 132 Mps | 96 Mps |
| आयामहरू (W x D x H) | 442 मिमी x 420 मिमी x 43.6 mm | 442 मिमी x 420 मिमी x 43.6 mm | 442 मिमी x 420 मिमी x 43.6 mm | 442 मिमी x 420 मिमी x 43.6 mm | 442 मिमी x 420 मिमी x 43.6 mm | 442 मिमी x 420 मिमी x 43.6 mm |
| वजन (fully loaded) | 8 के। जि | 7.5 के। जि | 8.8 के। जि | 8.8 के। जि | 8.2 के। जि | 8 के। जि |
| सञ्चालन भोल्टेज | AC：90V～290V DC：-38.4V～-72V | |||||
| अधिकतम पावर खपत | ≤130 W | ≤90 W | ≤131W | ≤133W | ≤92W | ≤68W |
| Airflow design | Front-to-back or back-to-front | |||||
| यन्त्र | iStack | |||||
| virtualization | सुपर भर्चुअल कपडा (SVF) | |||||
| नेटवर्क | M-LAG | |||||
| virtualization | TRILL (CE5855 & CE5850) | |||||
| VM awareness | Agile Controller | |||||
| SDN | प्रोग्रामेबिलिटी सिस्टम खोल्नुहोस् (OPS) | |||||
| Traffic analysis | नेटस्ट्रिम | |||||
| sFlow | ||||||
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs | |||||
| Default VLAN | ||||||
| QinQ | ||||||
| MUX VLAN | ||||||
| MAC ठेगाना तालिका | Dynamic learning and aging of MAC addresses | |||||
| स्थिर, गतिशील, र ब्ल्याकहोल MAC ठेगाना प्रविष्टिहरू | ||||||
| स्रोत MAC ठेगानाहरूमा आधारित प्याकेट फिल्टरिङ | ||||||
| MAC address limiting based on ports and VLANs | ||||||
| IP routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS | |||||
| IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ | ||||||
Huawei CE5850-48T4S2Q-EI Switch Product Features
- CE5850 supports the TRILL protocol and can be used on a large Layer 2 TRILL network with GE/10GE servers. A TRILL network can contain more than 500 nodes, enabling flexible service deployments and large-scale Virtual Machine (VM) migrations.
- TRILL protocol uses a routing mechanism similar to IS-IS and sets a limited Time-to-Live (TTL) value in packets to prevent Layer 2 loops. This significantly improves network stability and speeds up network convergence.
- CE5850 supports up to 16 TRILL-based Layer 2 equal-cost paths, greatly improving links’ load balancing capabilities. The network has a fat-tree architecture that enhances expansion.
- CE5800 supports Super Virtual Fabric (SVF), which can virtualize multiple homogeneous or heterogeneous physical switches into one logical switch to simplify network management and improve reliability.
- SVF implements vertical extension of heterogeneous switches and virtualizes multiple leaf switches into remote cards of the spine switch, making it easier to install cables in equipment rooms and manage devices.
- CE5800 switches support remote positioning. Operators can turn on remote positioning indicators on the switches they want to maintain, so that they can find switches easily in an equipment room full of devices.
Huawei CE5850-48T4S2Q-EI Switch and More CE5800 Models
CE5810-48T4S-EI Switch (48-Port GE RJ45, 4-Port 10GE SFP+, Without Fan and Power Module)
CE5810-24T4S-EI Switch (24-Port GE RJ45, 4-Port 10GE SFP+, Without Fan and Power Module)
Huawei CE5850-48T4S2Q-EI Switch Product Configurations
| CE5850-HI-B00 | CE5850-48T4S2Q-HI Switch (2*150W AC पावर मोड्युल,2*FAN Box,Port side exhaust) |
| CE5850-EI-B00 | CE5850-48T4S2Q-EI Switch (2*150W AC पावर मोड्युल,2*FAN Box,Port side exhaust) |
| CE5810-EI-B00 | CE5810-48T4S-EI Switch (2*150W AC पावर मोड्युल,2*FAN Box,Port side exhaust) |
| CE5810-EI-B01 | CE5810-24T4S-EI Switch (2*150W AC पावर मोड्युल,2*FAN Box,Port side exhaust) |
| CE5810-EI-B10 | CE5810-EI Bundle 10 (CE5810-48T4S-EI mainframe, 8*SFP-10G-USR ,Without Fan and Power Module) |
| CE5810-EI-B11 | CE5810-EI Bundle 11 (CE5810-24T4S-EI mainframe, 4*SFP-10G-USR, Without Fan and Power Module) |
| CE5855-48T4S2Q-EI | CE5855-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10GE SFP+, 2-Port 40G QSFP+, Without Fan and Power Module) |
| CE5855-24T4S2Q-EI | CE5855-24T4S2Q-EI Switch (24-Port GE RJ45, 4-Port 10GE SFP+, 2-Port 40G QSFP+, Without Fan and Power Module) |
| CE5850-48T4S2Q-HI | CE5850-48T4S2Q-HI Switch (48-Port GE RJ45, 4-Port 10GE SFP+, 2-Port 40G QSFP+, Without Fan and Power Module) |
| CE5850-48T4S2Q-EI | CE5850-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10GE SFP+, 2-Port 40G QSFP+, Without Fan and Power Module) |
| CE5810-48T4S-EI | CE5810-48T4S-EI Switch (48-Port GE RJ45, 4-Port 10GE SFP+, Without Fan and Power Module) |
| CE5810-24T4S-EI | CE5810-24T4S-EI Switch (24-Port GE RJ45, 4-Port 10GE SFP+, Without Fan and Power Module) |
| FAN-40EA-F | फ्यान बक्स (EA, Front to Back, FAN panel side intake) |
| FAN-40EA-B | फ्यान बक्स (EA, Back to Front, FAN panel side exhaust) |
| FAN-40SB-F | फ्यान बक्स (SB, Front to Back, FAN panel side intake) |
| FAN-40SB-B | फ्यान बक्स (SB, Back to Front, FAN panel side exhaust) |
| PAC-150WA | 150W AC पावर मोड्युल (No Fan) |
| PDC-350WA-F | 350W DC पावर मोड्युल (Front to Back, Power panel side intake) |
| PDC-350WA-B | 350W DC पावर मोड्युल (Back to Front, Power panel side exhaust) |
Huawei CE5850-48T4S2Q-EI Switch Product Ordering
| भाग नम्बर | Part Model | Part Description |
| 2355272 | CE5850-48T4S2Q-EI | CE5850-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10GE SFP+, 2-Port 40GE QSFP+, Without Fan Box and Power Module) |
| 02350EXX | CE5850-48T4S2Q-EI-F | CE5850-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, 2*FAN Box, Port-side Exhaust, Without Power Module) |
| 02350EXY | CE5850-48T4S2Q-EI-B | CE5850-48T4S2Q-EI Switch (48-Port GE RJ45, 4-Port 10G SFP+, 2-Port 40G QSFP+, 2*FAN Box, Port-side Intake, Without Power Module) |
| 2359104 | CE5850-EI-B00 | CE5850-48T4S2Q-EI Switch (2*150W AC पावर मोड्युल, 2*FAN Box, Port-side Exhaust) |
| 02350FCK | CE5850-EI-B-B00 | CE5850-48T4S2Q-EI Switch (2*150W Power Module, 2*FAN Box, Port-side Intake) |
Huawei CE5850-48T4S2Q-EI Switch Product Applications
