Description

Huawei S1720-52GWR-4X-E Switch is a next-generation energy-saving Ethernet access switch with Downlink: 48 Ethernet 10/100/1000 ports Uplink: 4 10 Gig SFP+ PoE+ and AC power supply

Huawei S1720-52GWR-4X-E Switch Product Overview

The switch is designed for small- and medium-sized enterprises, Internet cafes, hotels, and schools. It is easy to install and maintain and come with diverse service features, helping customers build secure, reliable, high performance networks. In addition, Huawei S1720-52GWR-4X-E supports the intelligent upgrade feature. Specifically, switches obtain the version upgrade path and download the newest version for upgrade from the Huawei Online Upgrade P latform (HOUP). The entire upgrade process is highly automated and achieves one click upgrade. In addition, preloading the version is supported, which greatly shortens the upgrade time and

service interruption time.

Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches.

  • Unmanaged switches are plug-and-play and do not require installation of any software. They have no configuration options and do not need subsequent management.
  • Web-managed switches can be managed and maintained through the web browser. They are easy to operate and have user-friendly Graphic User Interfaces (GUIs).
  • Fully-managed switches support various management and maintenance methods, such as web, SNMP, command line interface (supported by S1720GW-E, S1720GWR-E, and S1720X-E). They have user-friendly GUIs.

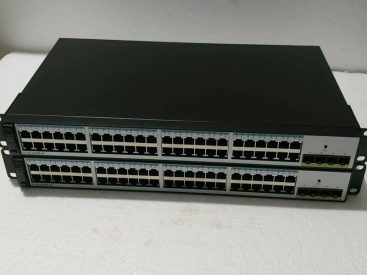

Huawei S1720-52GWR-4X-E Switch Product Pictures

Huawei S1720-52GWR-4X-EHuawei S1720-52GWR-4X-E

Huawei S1720-52GWR-4X-E price and specsHuawei S1720-52GWR-4X-E switch ycict

Huawei S1720-52GWR-4X-E Switch Product Specifications

Product Model S1720-28GWR-4P-E
S1720-28GWR-PWR-4P-E
S1720-28GWR-PWR-4TP-E
S1720-28GWR-4X-E
S1720-28GWR-PWR-4X-E
S1720-52GWR-4P-E
S1720-52GWR-PWR-4P-E
S1720-52GWR-4X-E
S1720-52GWR-PWR-4X-E
Device Management SNMP
Web system network management (HTTPS)
DHCP client
User password protection
One-key restoration
CLI configuration (S1720GWE, S1720GWR-E, and S1720X-XWR-E series)
Switching Capacity S1720-28GWR-P/TP series: 68 Gbit/s
S1720-28GWR-X series: 168 Gbit/s
S1720-52GWR-P series: 336 Gbit/s
S1720-52GWR-X: 336 Gbit/s
Forwarding Performance S1720-28GWR-P/TP series: 42 Mpps
S1720-28GWR-X series: 96 Mpps
S1720-52GWR-P series: 78 Mpps
S1720-52GWR-X series: 132 Mpps
Fixed Ports S1720-28GWR-P series
Downlink: 24 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 1,000 Base-X optical ports
S1720-28GWR-TP series
Downlink: 24 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 1,000 Base-X optical ports, 2 of which are 10/100/1,000 Base-T combo ports
S1720-28GWR-X series
Downlink: 24 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 10G Base-X optical ports
S1720-52GWR-P series
Downlink: 48 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 1,000 Base-X optical ports
S1720-52GWR-X series
Downlink: 48 x 10/100/1,000 Base-T electrical ports
Uplink: 4 x 10G Base-X optical ports
VLAN Features 4K VLANs
Access port
Trunk port
Hybrid port
Management VLAN
Voice VLAN
IP Routing IPv4 and IPv6 static routing
RIP, RIPng, and OSPF (S1720-E series)
Device Maintenance Remote Network Monitoring (RMON)
“System log
Ping and traceroute
Virtual Cable Test (VCT)
Link Layer Discovery Protocol (LLDP) “

Huawei S1720-52GWR-4X-E Switch Product Features

  • Switches support the intelligent upgrade feature. Specifically, switches obtain the version upgrade path and download the newest version for upgrade from the Huawei Online Upgrade Platform (HOUP). The entire upgrade process is highly automated and achieves one click upgrade. In addition, preloading the version is supported, which greatly shortens the upgrade time and service interruption time.
  • The intelligent upgrade feature greatly simplifies device upgrade operations and makes it possible for the customer to upgrade the version independently. This greatly reduces the customer’s maintenance costs. In addition, the upgrade policies on the HOUP platform standardize the upgrade operations, which greatly reduces the risk of upgrade failures.
  • S1700 provides a range of security features, including 802.1x, RADIUS, Portal and NAC. The S1700 also supports packet filtering based on MAC addresses or ports in ord er to defend against hackers and virus attacks.
  • S1700 supports Energy Efficient Ethernet (EEE), which enables the switch to enter a power saving mode when traffic is light.

Huawei S1720-52GWR-4X-E Switch Product And More Models

S1700-16G (16 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-24-AC (24 Ethernet 10/100 ports, AC 110/220V)
S1724G-AC (24 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-24GR (24 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-52R-2T2P-AC (48 Ethernet 10/100 ports, 2 Ethernet 10/100/1000 ports and 2 Gig SFP, AC 110/220V)
S1700-52GR-4X (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-10GW-2P (8 Ethernet 10/100/1000 ports, 2 Gig SFP, AC 110/220V)
S1720-10GW-PWR-2P (8 Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V)
S1720-28GWR-4P (24 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)
S1720-28GWR-4X (24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4X (24 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-52GWR-4P (48 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)
S1720-52GWR-4X (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-52GWR-PWR-4P (48 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-52GWR-PWR-4X (48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4TP (24 Ethernet 10/100/1000, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, 8 ports PoE+, 124W PoE AC)
