Description

Cisco WS-C2960L-48TQ-LL Switch is 48 port 10/100/1000 Ethernet ports, 4 x 10G SFP+

Cisco Catalyst 2960-L Series and 2960-L Smart Managed Switches are fully managed switches. They offer advanced Layer 2 and basic Layer 3 features and Power over Ethernet Plus (PoE+) power. These switches deliver enhanced network security, network reliability, and operational efficiency.

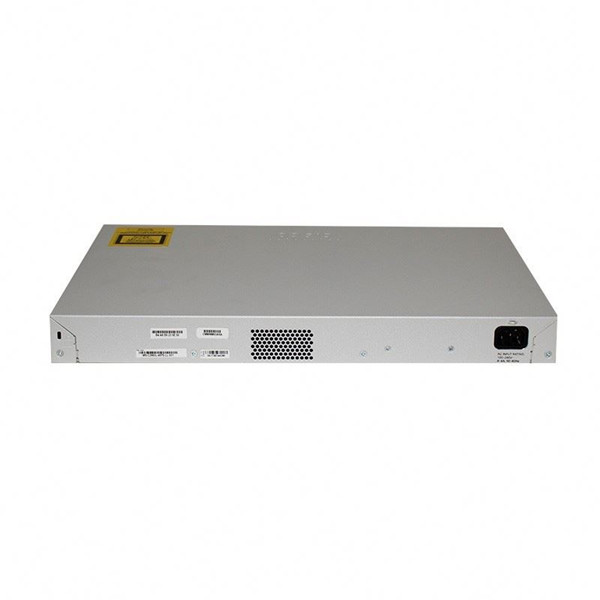

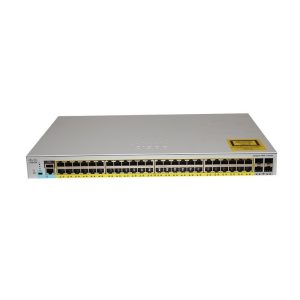

Cisco WS-C2960L-48TQ-LL Switch Product Picture



Cisco WS-C2960L-48TQ-LL Switch Specs

Brand Cisco
Model Name WS-C2960L-48TQ-LL
Device Type Switch – 48ports – Managed
Enclosure Type Rack-mountable 1U
Subtype Fast Ethernet
Ports 48x 10/100 /1000+ 4 x combo Gigabit SFP
Performance Switching capacity : 16 Gbps
Forwarding performance (64-byte packet size) : 6.5 Mpps
Capacity Active VLANs : 64
Jumbo Frame Support 9018 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, CLI
Power AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 45 cm x 24.2 cm x 4.4 cm
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Weight 10.00 kgs

Cisco WS-C2960L-48TQ-LL Switch More Models

Product ID* 10/100/1000 Ethernet ports Uplink interfaces Fanless Available PoE power Weight Dimensions (H x D x W)
WS-C2960L-8TS-LL/ 8 2 SFP Y – 3.33 lb (1.51kg) 1.73 x 8.45 x 10.56 in.
WS-C2960L-SM-8TS (4.4 x 21.5 x 26.8 cm)
WS-C2960L-8PS-LL/ 8 2 SFP Y 67W 4.50 lb (2.04kg) 1.73 x 9.45 x 10.56 in.
WS-C2960L-SM-8PS  (4.4 x 24 x 26.8 cm)
WS-C2960L-16TS-LL/ 16 2 SFP Y – 3.41 lb (1.55kg) 1.73 x 8.45 x 10.56 in.
WS-C2960L-SM-16TS  (4.4 x 21.5 x 26.8 cm)
WS-C2960L-16PS-LL/ 16 2 SFP Y 120W 4.65 lb (2.11kg) 1.73 x 9.45 x 10.56 in.
WS-C2960L-SM-16PS (4.4 x 24 x 26.8 cm)
WS-C2960L-24TS-LL/ 24 4 SFP Y – 6.04 lb (2.74kg) 1.73 x 9.45 x 17.5 in.
WS-C2960L-SM-24TS (4.4 x 24 x 44.5 cm)
WS-C2960L-24PS-LL/ 24 4 SFP Y 195W 7.41 lb (3.36kg) 1.73 x 10.45 x 17.5 in.
WS-C2960L-SM-24PS (4.4 x 26.5 x 44.5 cm)
WS-C2960L-24TQ-LL/ 24 4 SFP+ Y – 6.06 lb (2.75kg) 1.73 x 9.45 x 17.5 in
WS-C2960L-SM-24TQ (4.4 x 24 x 44.5 cm)
WS-C2960L-24PQ-LL/ 24 4 SFP+ Y 195W 7.39 lb (3.35kg) 1.73 x 10.45 x 17.5 in
WS-C2960L-SM-24PQ (4.4 x 26.5 x 44.5 cm)
WS-C2960L-48TQ-LL/ 48 4 SFP+ Y – 6.68 lb (3.03kg) 1.73 x 9.45 x 17.5 in
WS-C2960L-SM-48TQ (4.4 x 24 x 44.5 cm)
WS-C2960L-48PQ-LL/ 48 4 SFP+ N 370W 1.73 x 11.5 x 17.5 in
WS-C2960L-SM-48PQ (4.4 x 29.2 x 44.5 cm)
WS-C2960L-48TS-LL/ 48 4 SFP Y – 6.57 lb (2.98kg) 1.73 x 9.45 x 17.5 in.
WS-C2960L-SM-48TS (4.4 x 24 x 44.5 cm)
WS-C2960L-48PS-LL/ 48 4 SFP N 370W 10.08 lb (4.57kg) 1.73 x 11.5 x 17.5 in.
WS-C2960L-SM-48PS (4.4 x 29.2 x 44.5 cm)
