Description
Huawei S1720X-16XWR Switch is a next-generation energy-saving Ethernet access switch with 16 10 Gig SFP+ and AC power supply
Huawei S1720X-16XWR Switch Product Overview
The switch provides Forwarding performance: 240 Mpps and Switching Capacity: 680 Gbit/s. It is ideal for small and medium-sized enterprises, Internet cafés, hotels, and schools. Huawei S1720X-16XWR is easy to install and maintain and provide rich services, helping customers build secure, reliable, and high-performance networks. S1720 series web-managed and fully-manged switches provide telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight. The CampusInsight analyzes network data based on the intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experience.

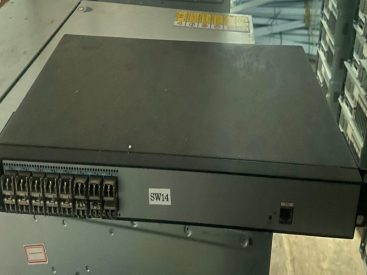

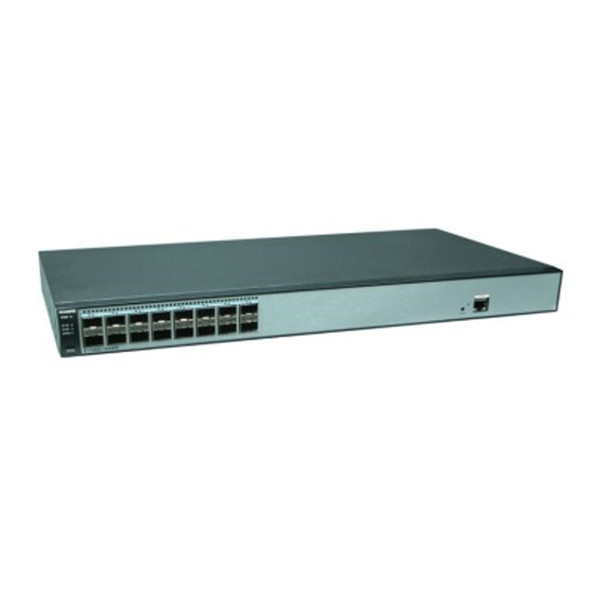

Huawei S1720X-16XWR Switch Product Pictures
Huawei S1720X-16XWR Switch Product Specifications
| product Model | S1720X-16XWR | S1720X-32XWR |
| Device Management | Web system network management DHCP client One-key restoration Note: You can upgrade the web-managed S1720 model to the web/SNMP-managed model by purchasing a license |
|
| Switching Capacity | 680 Gbit/s | 680 Gbit/s |
| Forwarding Performance | 240 Mpps | 252 Mpps |
| Fixed Ports | 16 x 10G Base-X optical ports | 32 x 10 GBase-X optical ports |
| Note: These ports can be used for both upstream and downstream transmission. | Note: These ports can be used for both upstream and downstream transmission. | |
| VLAN Features | 256 VLANs (S1720 Series: 4K) Access port Trunk port Hybrid port Management VLAN Voice VLAN |
|
| IP Routing | IPv4 and IPv6 static routing | |
| Device Maintenance | System log Ping Virtual Cable Test (VCT) Link Layer Discovery Protocol (LLDP) |
|
Huawei S1720X-16XWR Switch Product Features
- S1700 supports Energy Efficient Ethernet (EEE), which enables the switch to enter a power saving mode when traffic is light.
- S1700 can adjust the power output for transmissions based on the cable length. It can also set any ports that are not transmitting traffic to sleep mode.
- All S1700 ports provide Layer 2 wire speed forwarding capabilities to ensure non blocking packet forwarding. S1700 models provide optical and electrical GE uplink ports, which facilitate user access and are cost effective.
- When a PoE switch is rebooted after the software version is upgraded, the power supply to PDs is not interrupted. This capability ensures that PDs are not powered off during the switch reboot.
Huawei S1720X-16XWR Switch Product and More Models
S1700-16G (16 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-24-AC (24 Ethernet 10/100 ports, AC 110/220V)
S1724G-AC (24 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-24GR (24 Ethernet 10/100/1000 ports, AC 110/220V)
S1700-52R-2T2P-AC (48 Ethernet 10/100 ports, 2 Ethernet 10/100/1000 ports and 2 Gig SFP, AC 110/220V)
S1700-52GR-4X (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-10GW-2P (8 Ethernet 10/100/1000 ports, 2 Gig SFP, AC 110/220V)
S1720-10GW-PWR-2P (8 Ethernet 10/100/1000 PoE+ ports, 2 Gig SFP, AC 110/220V)
S1720-28GWR-4P (24 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)
S1720-28GWR-4X (24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4X (24 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-52GWR-4P (48 Ethernet 10/100/1000 ports, 4 Gig SFP, AC 110/220V)
S1720-52GWR-4X (48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V)
S1720-52GWR-PWR-4P (48 Ethernet 10/100/1000 PoE+ ports, 4 Gig SFP, 370W PoE AC 110/220V)
S1720-52GWR-PWR-4X (48 Ethernet 10/100/1000 PoE+ ports, 4 10 Gig SFP+, 370W PoE AC 110/220V)
S1720-28GWR-PWR-4TP (24 Ethernet 10/100/1000, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP, 8 ports PoE+, 124W PoE AC)
