Description

SIMCom A7670E 4G Module is a LTE Cat 1 module in LCC+LGA form factor supporting LTE-FDD/GSM/GPRS/EDGE with maximum 10Mbps downlink rate and 5Mbps uplink rate.

SIMCom A7670E 4G Module Product Overview

SIMCom A7670E 4G Module adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules). At the same time, the module supports both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. Additionally, A7670E supports BLE* and GNSS* and it integrates abundant industrial standard interfaces with powerful expansibility, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.

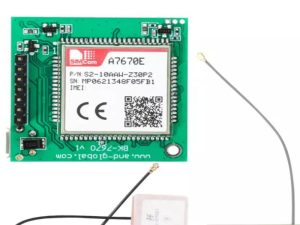

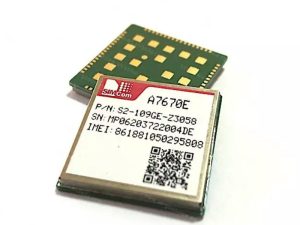

SIMCom A7670E 4G Module Product Pictures

SIMCom A7670E 4G ModuleSIMCom A7670E 4G Module

SIMCom A7670E SIMCom A7670E price and specs 4g lte module ycictSIMCom A7670E SIMCom A7670E price and specs ycict

SIMCom A7670E 4G Module Product Specifications

Brand SIMCom
Model A7670E
Form factor LCC+LGA
Frequency Bands LTE-FDD B1/B3/B5/B7/B8/B20 GSM/GPRS/EDGE 900/1800 MHz
Supply Voltage 3.4V ~ 4.2V, Typ: 3.8V
Operation temperature -40℃ ~ +85℃
Dimensions 24*24*2.4mm
Weight 2.8±0.1g
Data Transfer LTE Cat 1:
Uplink up to 5Mbps
Downlink up to10Mbps
EDGE :
Uplink/Downlink up to 236.8Kbps
GPRS Uplink/Downlink up to 85.6Kbps
Interfaces USB2.0 UART
(U)SIM card(1.8V/3V )
Analog audio ADC
I2C GPIO 4*4 Keypad*
Camera* LCM*
Antenna: Primary/GNSS*/BT*
Other Features USB Driver for Microsoft Windows 7/8/10
USB Driver for Linux /Android
RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
Firmware update via USB/FOTA
TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS
RNDIS/PPP/ECM
MQTT/MQTTS
TLS1.2
LBS
TTS
Certifications CE#/RoHS#/REACH#

SIMCom A7670E 4G Module Product Features

  • Compact size with abundant interfaces
  • Supports BLE and GNSS functions*
  • Abundant software functions: FOTA, LBS, SSL
  • Form factor is compatible with the SIM7000/SIM7070 series

SIMCom A7670E 4G Module Product and More Models

A7672G LCC+LGA
A7670E LCC+LGA
A7608SA-H LCC+LGA
A7676E LCC+LGA
A7672X LCC+LGA
A7682E LCC+LGA 85Pin
A7602X-H(E/SA) LCC+LGA 163Pin
A7600E-H LCC+LGA
A7600C1 LCC+LGA 119Pin
SIM7600G R2 LCC+LGA
SIM7600G-H R2 LCC+LGA
A7600E LCC+LGA
SIM7600X LCC/LCC+LGA 87/119Pin
SIM7500X LGA 56Pin
SIM7600X-H-PCIE Mini Pcie
SIM7600X-PCIE Mini Pcie
SIM7600X-H LCC/LCC+LGA 87/119Pin
SIM7600X-H-M2 M.2
SIM7500-PCIE Series Mini Pcie

SIMCom A7670E 4G Module Product Applications

SIMCom A7670E 4G Module applications ycict
