Description

QSFP28-100-1310-80KM-SM is High Speed Transciver QSFP28,1310nm 100G,2dBm,6.5dBm,-2dBm,LC, SMF,80KM

QSFP28-100-1310-80KM-SM Product Overview

QSFP28-100-1310-80KM-SM operates over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology. The Module has minimum guaranteed optical budget of 30 dB (with host FEC enabled), which in most cases is enough to reach 80km distance (with host FEC) and 40km distance (without host FEC) using single-mode cable. Additionally, it supports DDM/DOM optical diagnostics, which provide diagnostic information about the present operating conditions. Moreover, the module is multi-purpose module used in number of different places in the networking environment. Most popular applications are Internet Service Provider (ISP) Fiber to the Home Aggregation and Backbone, Mobile Operator Core Networks and Mobile Backhaul and Data Center networking site interconnections.

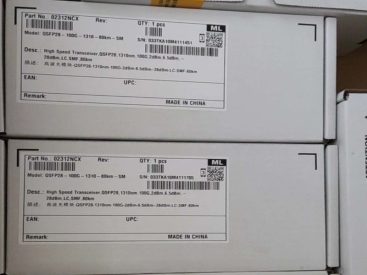

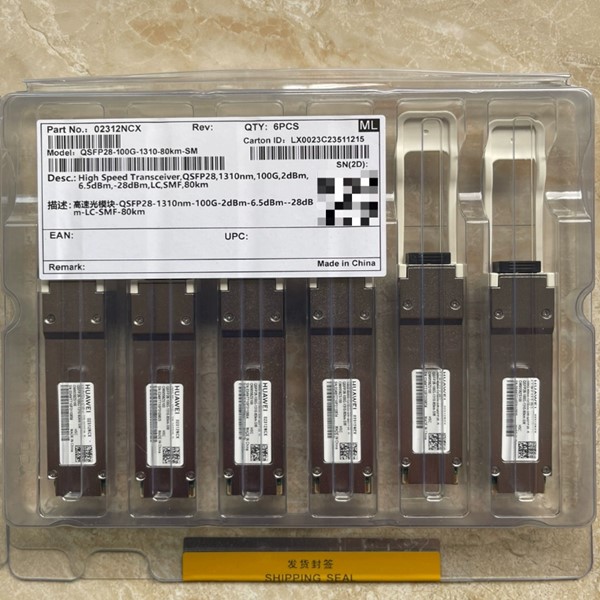

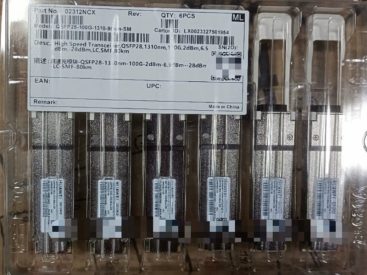

QSFP28-100-1310-80KM-SM Product Pictures

QSFP-100G price and specsQSFP-100G 80km huawei

QSFP-100G 80km 1310nm ycicthuawei QSFP-100G 80km

QSFP28-100-1310-80KM-SM Product Specifications

Media Type Single-Mode Fiber (SMF)
Connectors Double LC
TX Wavelength LAN WDM 1310nm
RX Wavelength LAN WDM 1310nm
Minimum Optical Budget 30 dB
Maximum Distance 80km
Supported Data Rate 103.125 Gbps
Supported Applications 100G Ethernet (103.125Gbps)
DDM/DOM Supported
CDR (Clock and Data Recovery) chip Supported
Forward Error Correction (FEC) Host FEC Supported
Transmitter Type EML LAN WDM TOSA
Tx Wavelength Bandwidth 4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)
Average Launch Power (Min) Each Lane -2 dBm
Average Launch Power (Max) Each Lane 6.5 dBm
Extinction Ratio (Min) 8 dB
Receiver Type SOA+PIN
Rx Wavelength Bandwidth 4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)
Average Receiver Sensitivity (Min) Each Lane -28 dBm
Average Receiver Sensitivity (Max) Each Lane -7 dBm
Receiver Overload 5 dBm
Temperature Range Standard 0°-70°C
Storage Temperature -40° to 85°C
Relative Humidity 0 to 85%
Power Consumption ≤6.5W
Power +3.3V
Chipset Macom, Sumitomo, Samtech, Oclaro, Avago, II-IV
Compliance Class 1 FDA, IEC60825-1 Laser Safety Compliant, IEEE 802.3ba 100GBASE-ZR4, CE, QSFP28 MSA, RoHS, SFF-8636, SFF-8665

QSFP28-100-1310-80KM-SM Product Features

● Hot pluggable QSFP28 MSA form factor
● Up to 10km reach for G.652 SMF
● Single +3.3V power supply
● Operating case temperature: 0~70℃
● Transmitter: Cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05,1304.58, 1309.14nm)
● Receiver: 4x25Gb/s PIN ROSA
● 4x28G Electrical Serial Interface (CEI-28G-VSR)
● Maximum power consumption 3.5W
● RoHS-6 compliant

QSFP28-100-1310-80KM-SM Product Applications
