Description
SIMCom SIM7000A Module is a LPWA module which supports wireless communication modes of Cat-M/NB-IoT/GSM
SIMCom SIM7000A Module Product Overview
SIMCom SIM7000A Module has powerful expansibility with abundant interfaces including UART, GPIO, PCM, I2C etc. it is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, SIMCom SIM7000A Module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health and so on.

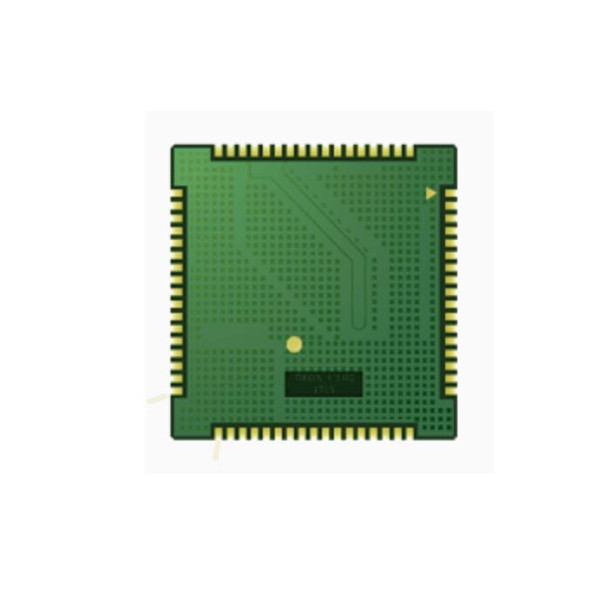

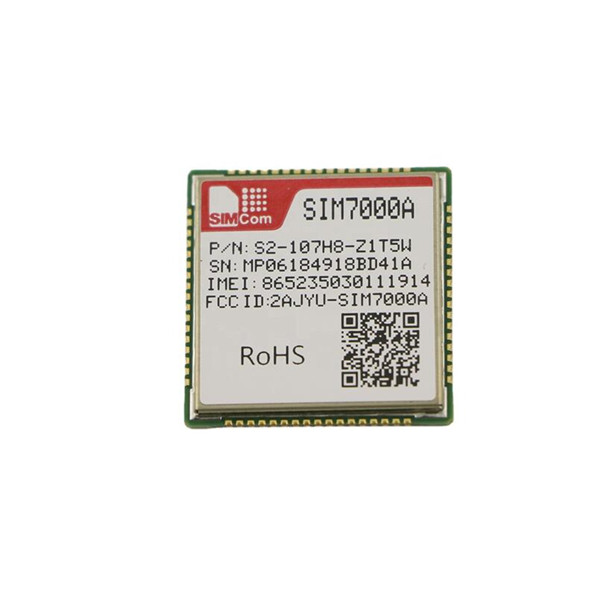

SIMCom SIM7000A Module Product Picture
SIMCom SIM7000A Module Product Specifications
| Product | SIM7000A | |
| Form factor | LCC, 68PIN | |
| Dimensions(mm) | 24*24*2.6 | |
| Frequency Bands | Cat-M | B2/B4/B12/B13 |
| Cat-NB | B2/B4/B12/B13 | |
| GSM | ||
| Temperature GNSS | -40℃ ~ +85℃ optional | |
| Electrical Features | ||
| Supply Voltage Range(V) | 3.0~ 4.3 | |
| Power Consumption | Power Off(uA) | 7 |
| PSM(uA) | 9 | |
| Sleep(mA) | 1 | |
| Idle(mA) | 11 | |
| Cat-M(Kbps) | 300(DL)/375(UL) | |
| Cat-NB(Kbps) | 34(DL)/66(UL) | |
| Protocol | TCP/UDP/LWM2M/COAP/MQTT/ FTP/HTTP/TLS/DTLS/NTP | |
| FOTA | ● | |
| Embedded AT | ● | |
| Firmware Upgrade | USB/FOTA | |
| SIM Card | 1.8V/3.0V | |
| UART | ● | |
| USB | ● | |
| PCM | ● | |
| ADC | ● | |
| I2C | ● | |
| Regulatory | RoHSREACHGCFFCCPTCRBAT&TVerizonIC | |
| Carrier | AT&T/VERIZON/ROGERS*/PTCRB/GCF | |
SIMCom SIM7000A Module Product Features
- providing deeper coverage enhancement compared to GSM
- The form factor and AT commands compatible with SIM900 and SIM800F
- With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), it can extend battery life to 10 years
SIMCom SIM7000A Module and More LPWA Modules
SIMCom SIM7000A Module Product Applications
