SIMCom SIM7020G Module is a LPWA NB-IoT module supporting wireless communication modes

SIMCom SIM7020G Module Product Overview

SIMCom SIM7020G Module has powerful expansibility with abundant interfaces including UART, GPIO, I2C etc. it is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, SIM7020G is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health and so on.

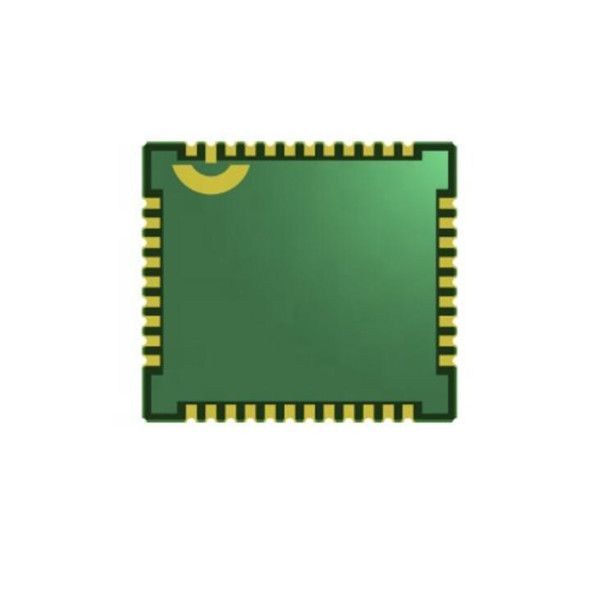

SIMCom SIM7020G Module Product Picture

SIMCom SIM7020G Module good priceSIMCom SIM7020G Module YCICT

SIMCom SIM7020G Module NEW AND ORIGINAL YCICTSIMCom SIM7020G Module new and original simcom

SIMCom SIM7020G Module Product Specifications

Product SIM7020G
Form Factor LCC+LGA, 77PIN
Dimensions(mm) 17.6*15.7*2.3
Frequency Bands Cat-NB B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85
Temperature -40℃ ~ +85℃
Supply Voltage Range(V) 2.1~ 3.6
Power Consumption @PSM(uA) 3.4
@Sleep(mA) 0.4
@Idle(mA) 5.6
@eDRX=655.36s(uA) 30
Data Transfer
NB-IoT(kbps) 126(DL)/150(UL)
Embedded AT
Firmware Upgrade UART/FOTA
SIM Card 1.8V/3.0V
Embedded SIM o
Regulatory RoHSREACHRCMTelstraCE(RED)GCFATEXTIMDeutsche TelekomVodafoneFCCPTCRBT-MobileIC
Carrier Telstra*/Vodafone/Deutsche Telekom

SIMCom SIM7020G Module Product Features

  • Providing deeper coverage enhancement compared to GSM
  • The form factor and AT commands compatible with SIM800C
  • With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), it can extend battery life up to 10 years
