SIMCom SIM7600E-H-PCIE

SIMcom SIM7600SA-H-M2
Category: Tag:

Description

SIMCom SIM7600E-H-PCIE is LTE Cat 4 module supporting wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc and maximum 150Mbps downlink rate and 50Mbpsuplink rate.

SIMCom SIM7600E-H-PCIE Product Overview

SIMCom SIM7600E-H-PCIE integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7 500/SIM7 600 series modules. Meanwhile SIMCom SIM7600E-H-PCIE integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main loT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

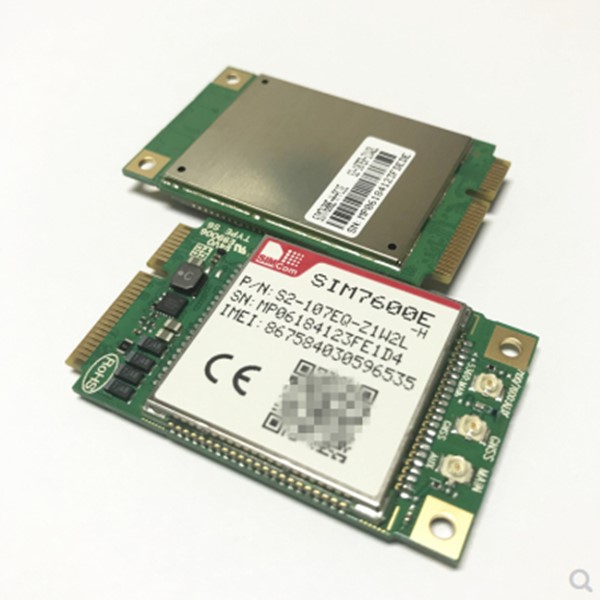

SIMCom SIM7600E-H-PCIE Product Picture

SIMCom SIM7600E-H1C-PCIE Module new and original ycictSIMCom SIM7600E-H1C-PCIE Module simcom module ycict

SIMCom SIM7600E-H1C-PCIE Module good price ycict good priceSIMCom SIM7600E-H1C-PCIE Module NEW AND ORIGINAL

SIMCom SIM7600E-H-PCIE Product Specifications

Description SIM7600E-H-PCIE
Form Factor Mini PCIE
Dimensions mm 50.8*31*5.35
Frequency Bands LTE-FEE B1/B3/B5/B7/B8/B20
LTE-TDD B38/B40/B41
WCDMA B1/B5/B8
GSM 900/1800MHz
GNSS 0
Temperature -40-+85 ℃
Supply Voltage V 3.0-3.6
Power Consumption Ma LTE 2.3
WCDMA 3.3
GSM 2.8
LTE Mbps 150DL/50UL
HSPA+ Mbps 42DL/5.76UL
WCDMA Kbps 384DL/384UL
GPRS/EDGE Kbps 236.8DL/236.8UL
Protocol TCP/lP/lPV4/lPV6/Multi-PDP/FTP/FTPS/HT TP/ HTTPS/DNS
Android RIL Android 5.0/6.0/7 .0/8.0/9.0
USB Driver Microsoft Windows 7/8/10Linux/Android
Certification CE-RED/RoHS/REACH/IMDA/GCF

SIMCom SIM7600E-H-PCIE Product Feature

  • Mini-PClE interface with strong compatibility
  • Suitable for LTE, UMTS and GSM networks with global coverage
  • Abundant software functions: FOTA,LBS,TLS, VoLTE
  • Multi-constellation GNSS receiver support
  • AT commands of the SIM7 600-H-PCIE series are compatible with the SIM7 500/SIM7600 series modules

SIMCom SIM7600E-H-PCIE Product and more Related Modules

SIMCom SIM7600A-H-PCIE

SIMCom SIM7600V-H-PCIE

SIMCom SIM7600SA-H-PCIE

SIMCom SIM7600JC-H-PCIE

SIMCom SIM7600E-H-PCIE

SIMCom SIM7600NA-H-PCIE

SIMCom SIM7600G-H-PCIE

SIMCom SIM7600E-H-PCIE Product Application
