Description

SIMCom SIM7600V-H-PCIE is a LTE Cat 4 module supporting LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc and delivering maximum 150Mbps downlink rate and 50Mbps uplink rate.

SIMCom SIM7600V-H-PCIE Product Overview

SIMCom SIM7600V-H-PCIE adopts mini PCIE form factor, and integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, and supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.

Meanwhile, SIMCom SIM7600V-H-PCIE integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

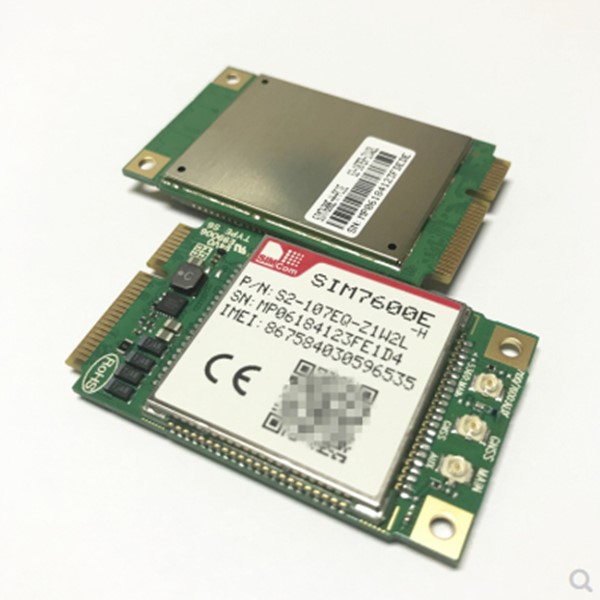

SIMCom SIM7600V-H-PCIE Product Picture

SIMCom SIM7600V-H-PCIE sim7600 series ycict simcom moduleSIMCom SIM7600NA-H-PCIE price and specs ycict simcom 4gmodule

SIMCom SIM8202G-M2 5G Module YCICT NEW AND ORIGINALSIMCom SIM7600JC-H-PCIE price and specs new and original ycict

SIMCom SIM7600V-H-PCIE Product Specifications

Product SIM7600V-H-PCIE
Form Factor Mini PCIE
Dimensions(mm) 50.8*31*5.35
Frequency Bands LTE-FDD B2/B4/B5/B13
Temperature -40℃ ~ +85℃
GNSS Optional
Supply Voltage(V) 3.0~ 3.6
Power Consumption(mA) LTE 2.3
WCDMA,
DRX=9
GSM,BS_PA_MFRMS=2
LTE(Mbps) 150(DL)/50(UL)
Protocol TCP/IP/IPV4/IPV6/
Multi-PDP/FTP/FTPS/
HTTP/ HTTPS/DNS
TLS ●
File System ●
Audio Record/Play o
TTS o
DTMF o
LBS ●
FOTA ●
Jamming Detection ●
Android RIL Android 5.0/6.0/7.0/8.0/9.0
USB Driver Microsoft Windows 7/8/10
Linux/Android
WWAN (RNDIS) ●
ECM ●
MBIM Win8/Win10
NDIS Linux/Windows 7/8/10
Open Linux o
Firmware Upgrade USB/FOTA
SIM Card 1.8V/3.0V
UART ●
USB ●
PCM o
Analog Audio o
Embedded SIM card socket o
Diversity Receiver ●
Regulatory RoHSREACHFCCGCFVerizon
Carrier Verizon

SIMCom SIM7600V-H-PCIE Product Feature

  • Mini-PCIE interface with strong compatibility
  • Multi-constellation GNSS receiver support
  • Suitable for LTE, UMTS and GSM networks with global coverage
  • Abundant software functions: FOTA, LBS, TLS, VoLTE
  • AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules
