Description

SIMCom SIM800C-DS 2G Module is complete Quad-band GSM/GPRS module with LCC and LGA pads

SIMCom SIM800C-DS 2G Module Product Overview

The module supports Quad-band 850/900/1800/1900MHz. and it allows customers to use two SIM cards in one device simultaneously. At the same time, the product can transmit Voice, SMS and data information with low power consumption. Since it is designed in compact size of 17.6*15.7*2.3mm, it can smoothly fit into slim and compact demands from the customer.

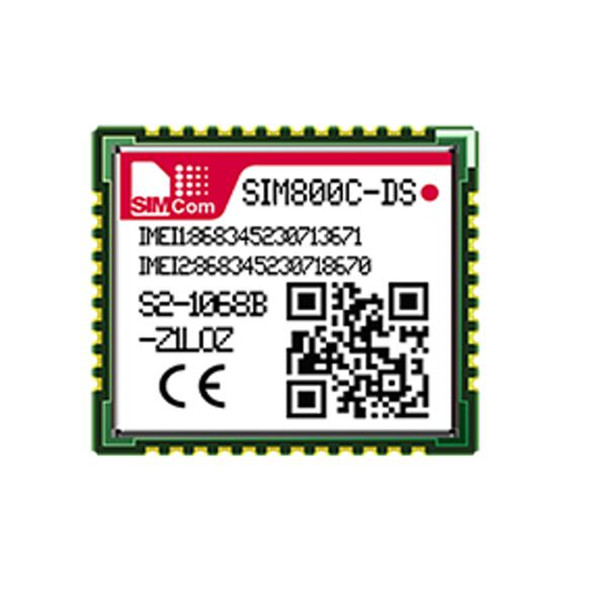

SIMCom SIM800C-DS 2G Module Product Pictures

SIMCom SIM800C-DS 2G Module price and specs ycictSIMCom SIM868 2G Module price and specs ycict

SIMCom SIM5320A 3g module price and specs ycictSIMCom SIM7600SA-PCIE 4G Module price and specs cat1 pcie form factor good price ycict

SIMCom SIM800C-DS 2G Module Product Specifications

Brand SIMCom
Model SIMCom SIM800C-DS
Form Factor LCC+LGA 77Pin
Dimensions(mm) 17.6*15.7*2.3mm
Weight 1.3g
Supply voltage range 3.4 ~ 4.4V
Operation temperature -40℃ ~ 85℃
Frequency Bands •Quad-band 850/900/1800/1900MHz•GPRS multi-slot class 12/10•GPRS mobile station class B
Interfaces 77 SMT pins including•SIM Card Interfaces (Dual Standby)—SIM card 1: 3V/ 1.8V—SIM card 2: 3V/ 1.8V•Analog audio interface•RTC backup•I2C interface•USB interface•Serial interface•PCM•SD•GPIO•ADC•GSM Antenna pad
Specifications for GPRS Data •GPRS class 12: max. 85.6 kbps (downlink/uplink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•PPP-stack•USSD
Specifications for SMS via GSM/GPRS •Point to point MO and MT•SMS cell broadcast•Text and PDU mode
Software Features •0710 MUX protocol•Embedded TCP/UDP protocol•FTP/HTTP•MMS•POP3/SMTP•DTMF•Jamming Detection•Audio Record•TTS_CN (optional)
Specifications for Voice •Tricodec–Half rate (HR)–Full rate (FR)–Enhanced Full rate (EFR)•Hands-free operation (Echo suppression)
Certifications • CCC
Compatibility •AT cellular command interface

SIMCom SIM800C-DS 2G Module Product and More 2G Modules

R800C LCC 42Pin
SIM808 LCC 68Pin
SIM800C LCC 42Pin
SIM868E LCC+LGA 77Pin
SIM868 LCC+LGA 77Pin
SIM800 LCC 68Pin
SIM800H LGA 88Pin
SIM800F LCC 68Pin
SIM800C-DS LCC+LGA 77Pin

SIMCom SIM800C-DS 2G Module Product Applications
