Cisco UCS B480 M5 Blade Server delivers outstanding performance, density, and scalability for enterprise and mission-critical applications in a 4-socket, full-width form factor. Its product parameters are.

Cisco UCS B480 M5 Blade Server General Introduction

We can quickly deploy stateless physical and virtual workloads with the Cisco B480 M5. The B480 M5 supports Intel® Xeon® scalable processors with up to 6 TB of content capacity, four SAS, SATA, and NVMe drives; M.2 storage; up to four GPUs; and 160 for I/O throughput Gigabit Ethernet connectivity provides outstanding performance, flexibility, and I/O throughput levels for running the most demanding applications.

The B480 M5 is a full-width blade server supported by the Cisco UCS 5108 blade server chassis. The 5108 chassis and Cisco B-Series blade servers have inherent architectural advantages:

  • Provides architectural benefits through Cisco UCS, eliminating the need to power, cool, and manage excess switches (management, storage, and network switches), host bus adapters (HBAs), and network interface cards (NICs) in each blade chassis And don’t have to buy too many switches
  • Reduces total cost of ownership by removing the management module from the chassis, making the chassis stateless.
  • Reduce single management tasks by providing a single highly available Cisco Unified Computing SystemTM (Cisco UCS) management domain for all system and rack servers

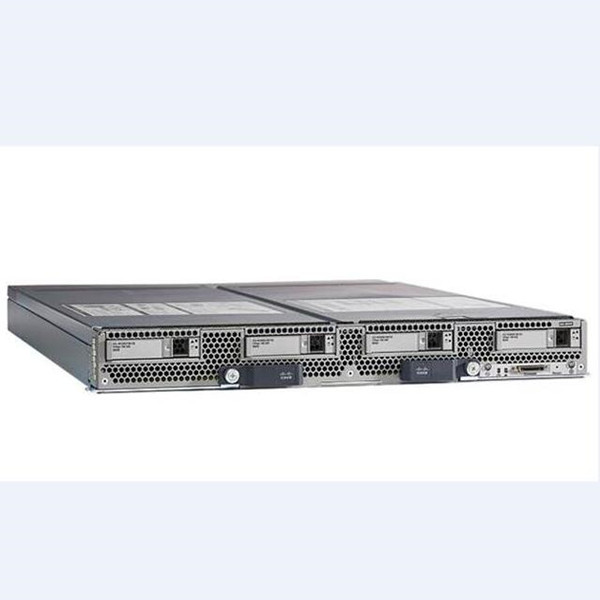

Cisco UCS B480 M5 Blade Server Product Picture

Cisco UCS B480 M5 Blade ServerCisco UCS B480 M5 Blade Server

Cisco UCS B480 M5 Blade Server Datasheet

ItemSpecifications
Appearance The full-width blade server is installed in the Cisco UCS 5100 Series Blade Server Chassis.
A maximum of four Cisco UCS B480 M5 blade servers can be installed in each blade chassis.
ProcessorFour Intel® Xeon® Scalable Servers
RAM48 DDR4 DIMM slots: 16, 32, 64, and 128 GB at speeds up to 2666 MHz
Mezzanine slot5 PCIe 3.0 mezzanine slots:
1 slot only supports Cisco UCS VIC 1340 Adapter
Two mezzanine card slots support Cisco adapters, Cisco UCS storage accelerators, and GPUs
2 front mezzanine slots support GPU
Storage controllerDiskless system (no drive slot or RAID controller),
Cisco FlexStorageTM 12 Gbps SAS RAID controller with hard disk drive (HDD) bay for SAS connectivity up to 12 Gbps
Cisco FlexStorage 12 Gbps SAS RAID controller with 2 GB of flash-powered write cache (FBWC) and HDD bay for SAS connectivity up to 12 Gbps
Cisco FlexStorage PCI Express (PCIe) Solid State Disk (SSD) and pass-through modules with HDD bays
Storage device
Up to 4 optional front-mounted hot-swappable 2.5-inch Small Form Factor (SFF) SAS or SATA HDD, SSD, and PCIe NVMe drives
Other storageTwo Cisco FlexFlash internal SD cards (32, 64, and 128 GB) for installing an operating system or hypervisor; the second SD card can be used to mirror the first SD card
Dual M.2 SATA SSD (240, 480 and 960 GB)

Cisco UCS B480 M5 Blade Server Feature

The Cisco UCS B480 M5 blade server delivers outstanding performance, density, and scalability for enterprise and mission-critical applications in a 4-socket, full-width form factor. Its product parameters are as follows:

  • Four Intel® Xeon® expandable CPU slots (up to 28 cores per slot)
  • 2666 MHz DDR4 memory and 48 DIMM slots; if using 128 GB DIMMs, the memory can reach 6 TB
  • Cisco FlexStorage® Storage Subsystem
  • 5 mezzanine adapters for up to four GPUs
  • Cisco UCS Virtual Interface Card (VIC) 1340 modular onboard LAN (mLOM) slot and mLOM slot for upcoming 4th generation VIC
  • Internal Secure Digital Card (SD) and M.2 boot options
