Huawei S5731-H24HB4XZ Switch

Description

Huawei S5731-H24HB4XZ Switch is next-generation intelligent switch with 20 x GE SFP ports+ 4 x 10GE SFP+ ports, 4 x 10GE SFP+ ports One extended slot 1+1 power backup POE++ Switching capacity: 360Gbps/672Gbps

Huawei S5731-H24HB4XZ Switch Product Overview

It is next-generation intelligent switch providing GE/10GE hybrid optical-electrical downlink ports and four10GE uplink ports, and provide one extended slot. The switch builds on Huawei’s unified Versatile Routing Platform (VRP) and boasts various IDN features. The integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization. Additionally, Huawei S5731-H24HB4XZ function as a central switch to provide 60W PoE++ power for remote units (RUs) at 300 m; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception. Based on them, Huawei CloudEngine S5731-H24HB4XZ Switch can function as core switches for small-sized campus networks and branches of medium- and large-sized campus networks, and also work as access switches for Metropolitan Area Network.

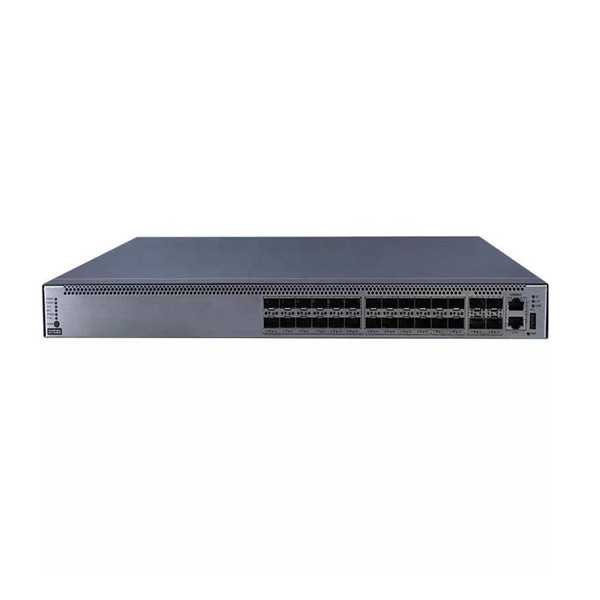

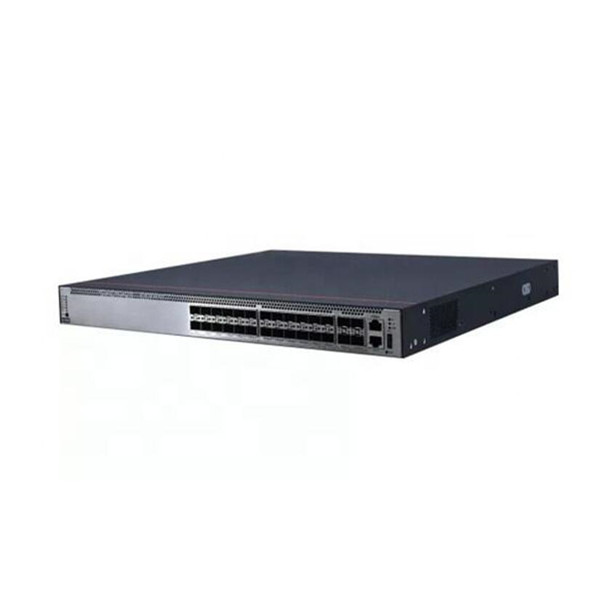

Huawei S5731-H24HB4XZ Switch Product Pictures

Huawei S5731-H24HB4XZ Switch Product Specifications

Item	Specification
Brand	Huawei
Model	CloudEngine S5731-H24HB4XZ
Switching Capacity2	360 Gbit/s/672 Gbit/s
Fixed Ports	20 x GE SFP, 4 x 10 GE SFP+, 4 x 10 GE SFP+
PoE++	Supported, when used with a hybrid cable and an optical-electrical module
Extended Slots	One extended slot, 2 x 40 GE QSFP+, 2 x 25 GE SFP28 or 8 x 10 GE SFP+ cards
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	5.7 kg (12.57 lb)
Weight with packaging [kg(lb)]	7.5 kg (16.53 lb)
Typical power consumption [W]	87 W
Typical heat dissipation [BTU/hour]	296.85 BTU/hour
Maximum power consumption [W]	Without PoE: 127 W (without cards)
	Full PoE load: 1927 W (PoE: 1768 W, without cards)
Maximum heat dissipation [BTU/hour]	Without PoE: 433.34 (without cards)
	Full PoE load: 6575.12 (without cards)
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz
	High-voltage DC input: 240 V DC
	DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45–65 Hz
	High-voltage DC input: 190 V DC to 290 V DC
	DC input: -38.4 V DC to -72 V DC
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Supported
Certification	EMC certification
	Safety certification
	Manufacturing certification

Huawei S5731-H24HB4XZ Switch Product Features

• Based on the simplified architecture, the access switches splits into the central switches and the remote units. The remote units function as the port expansion module of the central switch to flexibly expand the port capacity of the central switch. One device is a network.
• has a built-in high-speed and flexible processor chip. The chip’s flexible packet processing and traffic control capabilities can meet current and future service requirements, helping build a highly scalable network.
• Provide open interfaces and supports userdefined forwarding behavior. Enterprises can use the open interfaces to develop new protocols and functions independently or jointly with equipment vendors to build campus networks meeting their own needs.
• Provide the integrated WLAN AC(native AC) function that can manage 1,024 APs, reducing the costs of purchasing additional WLAN AC hardware and breaking the forwarding performance bottleneck of an external WLAN AC. With this switch series, customers can stay ahead in the high-speed wireless era.

Huawei S5731-H24HB4XZ Switch And More S5731-H

S5731-H24T4XC (02352QPP/02352QPP-001/02352QPP-005)
S5731-H24P4XC (02352QPV/02352QPV-001/02352QPV-003)
S5731-H48T4XC (02352QPT/02352QPT-003/02352QPT-007)
S5731-H48P4XC (02352SVD/02352SVD-001/02352SVD-003)
S5731-H48T4XC-B (02353VAD/02353VAD-003/02353VAD-005)
S5731-H24HB4XZ (02354QXD)
S5731-H24HB4XZ (02354QXD-001)
S5731-H48HB4XZ (02354QXB)
S5731-H48HB4XZ (02354QXB-001)

Huawei S5731-H24HB4XZ Switch Ordering Info

CloudEngine S5731-H24HB4XZ	CloudEngine S5731-H24HB4XZ(20*GE SFP ports, 4*10GE SFP+ ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, without power module)
CloudEngine S5731-H48HB4XZ	CloudEngine S5731-H48HB4XZ(44*GE SFP ports, 4*10GE SFP+ ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, without power module)
S7Q02001	2-port 40GE QSFP+ interface card
ES5D21X08T00	8-port 10GBASE-T interface card
S7X08000	2-port 25GE SFP28 or 8-port 10GE SFP+ interface card
PAC600S56-CB	600 W AC Power Module
PAC1000S56-DB	1000 W AC PoE power module
PAC1000S56-CB	1000 W AC PoE power module
PDC1000S56-CB	1000 W DC PoE power module
FAN-023A-B	Fan module, Air flows in from the front side and exhausts from the rear panel.
L-512AP-S57	S57 Series, Wireless Access Controller AP Resource License-512AP
L-64AP-S57	S57 Series, Wireless Access Controller AP Resource License-64AP
L-32AP-S57	S57 Series, Wireless Access Controller AP Resource License-32AP
L-1AP-S57	S57 Series, Wireless Access Controller AP Resource License-1AP
L-VxLAN-S57	S57 Series, VxLAN License, Per Device
N1-S57H-M-Lic	S57XX-H Series Basic SW,Per Device
N1-S57H-M-SnS1Y	S57XX-H Series Basic SW,SnS,Per Device,1Year
N1-S57H-F-Lic	N1-CloudCampus,Foundation,S57XX-H Series,Per Device
N1-S57H-F-SnS1Y	N1-CloudCampus,Foundation,S57XX-H Series,SnS,Per Device,1Year
N1-S57H-A-Lic	N1-CloudCampus,Advanced,S57XX-H Series,Per Device
N1-S57H-A-SnS1Y	N1-CloudCampus,Advanced,S57XX-H Series,SnS,Per Device,1Year
N1-S57H-FToA-Lic	N1-Upgrade-Foundation to Advanced,S57XX-H,Per Device
N1-S57H-FToASnS1Y	N1-Upgrade-Foundation to Advanced,S57XX-H,SnS,Per Device,1Year

Huawei S5731-H24HB4XZ Switch Product Applications
