Description

Huawei SSR1SLQ1 Board is 4xSTM-1 Optical Interface Board(S-1.1,LC) and use forHuawei OSN 1500B, OSN 2500 equipment to transmit/receive 4xSTM-optical signals at 2-15km

Huawei SSR1SLQ1 Board Product Overview

Huawei SSR1SLQ1 Board is a line board and can be used to receive and send STM-1 optical signals on OptiX OSN series devices. Through this board, SLQ1 sends the received optical signal to the cross side after O / E conversion, and at the same time, the electrical signal on the cross side is sent out after E / O conversion.In the receiving direction, the received optical signal is converted into an electrical signal.
In the sending direction, the received electrical signal is converted into an SDH optical signal and sent to the optical fiber for transmission.
Detect R_LOS alarm signal and provide a laser shutdown function.

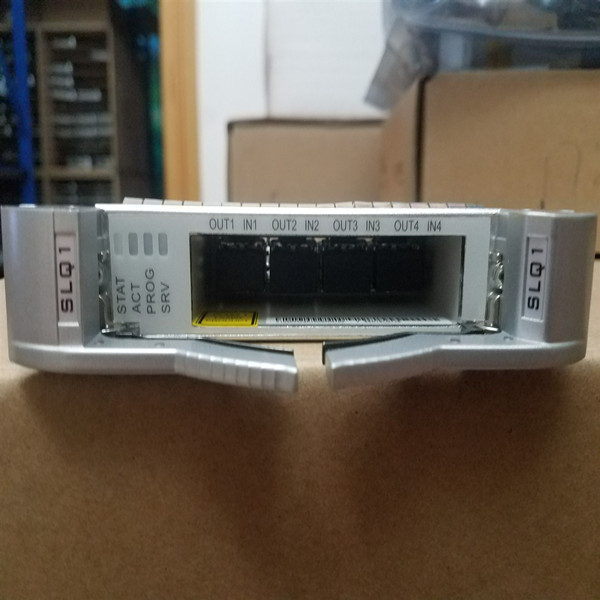

Huawei SSR1SLQ1 Board Product Pictures

Huawei SSR1SLQ1 Board YCICT SSR1SLQ1 PRICE AND SPECSHuawei SSR1SLQ1 Board YCICT SLQ1 PRICE AND SPECS NEW AND ORIGINAL

Huawei SSR1SLQ1 Board YCICT SLQ1 PRODUCT PRICE AND SPECS Huawei SSR1SLQ1 Board YCICT SLQ1 PRICE AND SPECS NEW AND ORIGINAL

Huawei SSR1SLQ1 Board Product Specifications

Brand Huawei
Model SSR1SLQ1
Nominal bit rate 155520 kbit/s
Line code pattern NRZ
Application code S-1.1
Transmission distance (km) 2 to 15
Type of fiber Singlemode LC
Operating wavelength range (nm) 1261 to 1360
Launched optical -15 to -8
power range (dBm)
Receiver sensitivity (dBm) -28
Minimum overload (dBm) -8
Minimum extinction ratio (dB) 8.2
Maximum -20 dB spectral width (nm)
Minimum side mode suppression ratio (dB)
Dimensions (mm) 25.4 (W) x 235.2 (D) x 261.4 (H)
Weight (kg) 0.4

Relationship between SLQ1 board feature codes and optical interface types

Service Board Feature Code Optical interface type
SSN1SLQ110、SSN2SLQ110、SSR1SLQ110 10 S-1.1
SSN1SLQ111、SSN2SLQ111、SSR1SLQ111 11 L-1.1
SSN1SLQ112、SSN2SLQ112、SSR1SLQ112 12 L-1.2
SSN1SLQ113、SSN2SLQ113、SSR1SLQ113 13 Ve-1.2
SSN1SLQ114、SSN2SLQ114、SSR1SLQ114 14 I-1
SSN1SLQ115 15 Ie-1

Huawei SSR1SLQ1 Board Product Features

  • Support the processing of STM-1 signal segment overhead.
  • Support channel overhead processing (transparent transmission and termination).
  • Support setting and querying of J0 / J1 / C2 bytes.
  • Supports 1 to 4 ECC communications.
  • Support optical loop level inner loopback and outer loopback.
  • Support soft reset and hard reset, soft reset does not affect business.
  • Support the query function of single board manufacturing information.
  • Support FPGA online loading function.
  • Supports smooth upgrade of single board software.

Huawei SSR1SLQ1 Position Slot

R1SLQ1 can be inserted in slots 2 ~ 3, 6 ~ 9, 12 ~ 13 of OptiX OSN 1500A subrack.
N1SLQ1 / N2SLQ1 can be inserted in slots 12 to 13 of the OptiX OSN 1500A subrack.
R1SLQ1 can be plugged into slots 1 to 3, 6 to 9, and 11 to 13 of the OptiX OSN 1500B subrack.
N1SLQ1 / N2SLQ1 can be inserted in slots 11 to 13 of the OptiX OSN 1500B subrack.

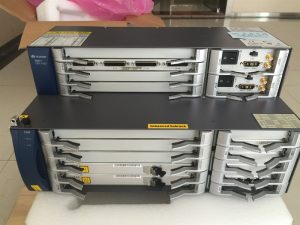

Huawei SSR1SLQ1 Board Product Applications

Huawei SSR1SLQ1 Board YCICT SLQ1 PRICE AND SPECS 4 CHANNEL STM1 BOARD
