Description
SIMCom A7906E-M2 Module is a Multi-Band LTE-FDD/LTE-TDD/HSPA+ module in M.2 type with LTE CAT6 up to 300Mbps data transfer.
SIMCom A7906E-M2 Module Product Overview
SIMCom A7906E-M2 Module is a Multi-Band LTE-FDD/LTE-TDD/HSPA+ module in M.2 type, supporting LTE CAT6 up to 300Mbps data transfer. The module is designed for applications that need high throughput data communication in a variety of radio propagation conditions. At the same time, It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. AT commands of A7906E-M2 are mostly compatible with SIM7500/SIM7600/SIM7906/SIM7912 Series modules, and provides much flexibility and ease of integration for customer’s application.Due to the unique combination of performance, security and flexibility, A7906E-M2 is ideally suited for many application

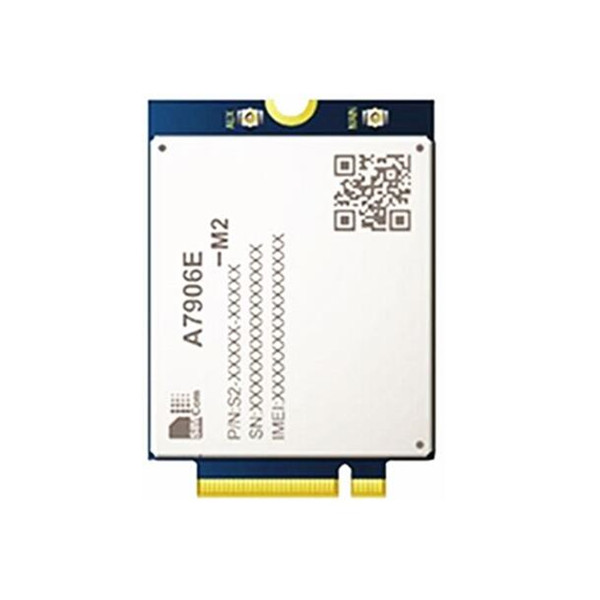

SIMCom A7906E-M2 Module Product Pictures
SIMCom A7906E-M2 Module Product Specifications
| Brand | SIMCom | |
| Product | A7906E-M2 | |
| Form Factor | M.2 | |
| Frequency Bands | FDD-LTE | B1/B3/B5/B7/B8/B20/B28/B32 |
| TDD-LTE | B38/B39/B40/B41 | |
| DL 2XCA | B1+B1/B5/B8/B20; | |
| B3+B3/B5/B7/B8/B20/B28; | ||
| B7+B5/B7/B8/B20/B28; | ||
| B20+B32; | ||
| B38+B38; | ||
| B39+B39; | ||
| B40+B40; | ||
| B41+B41;(Note:B32 is only for secondary component carrier) | ||
| WCDMA | B1/B5/B8 | |
| Temperature | -30℃ ~ +70℃ | |
| Dimensions | 42.0*30.0*2.3mm | |
| Weight | 6.3g | |
| Supply voltage range | 3.135V~ 4.4V, Typ: 3.7V | |
| Data | Uplink up to 50Mbps Downlink up to 300Mbps |
|
| Interface | USB2.0 x1 UART x1 (4-wire UART ) SIM card x1 (1.8V and 3V) PCIE x1 I2C x1 Antenna x2 |
|
SIMCom A7906E-M2 Module Product Features
Standard M.2 interface.
High throughput data communication.
The AT commands of A7906E-M2 are mostly compatible with SIM7500/SIM7600/SIM7906/SIM7912 Series modules
SIMCom A7906E-M2 Module and More Related Models
SIM7912E-M2 M.2 form factor
SIM7912A-M2 M.2 form factor
SIM7906G-M2 M.2 form factor
SIM7906E-M2 M.2 form factor
SIM7906A-M2 M .2 form factor
SIM7912E LGA form factor
SIM7912A LGA form factor
A7906E-M2 M.2 form factor
SIM7906E-PCIE Pcie form factor
SIM7906SA-M2 M.2 form factor
SIM7912G-M2 M.2 form factor
SIMCom A7906E-M2 Module Product Applications
