Description

SIMCom SIM8210C-M2 5G Module is a Multi-Band 5G NR/LTE-FDD/LTE-TDD  module supporting R15 5G SA up to 1.5Gbps data transfer.

SIMCom SIM8210C-M2 5G Module Product Overview

SIMCom SIM8210C-M2 5G Module uses M.2 form factor, TYPE 3052-S3-B. AT commands of SIM8210C-M2 are compatible with SIM8200X-M2 series modules. Therefore, it minimizes the investments of customers and enables a short time-to-market. In addition,

SIMCom SIM8210C-M2 5G Module has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer’s applications. in summary, this module is designed for applications requiring for high throughput data communication in a variety of radio propagation conditions. Thanks to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

SIMCom SIM8210C-M2 5G Module Product Picture

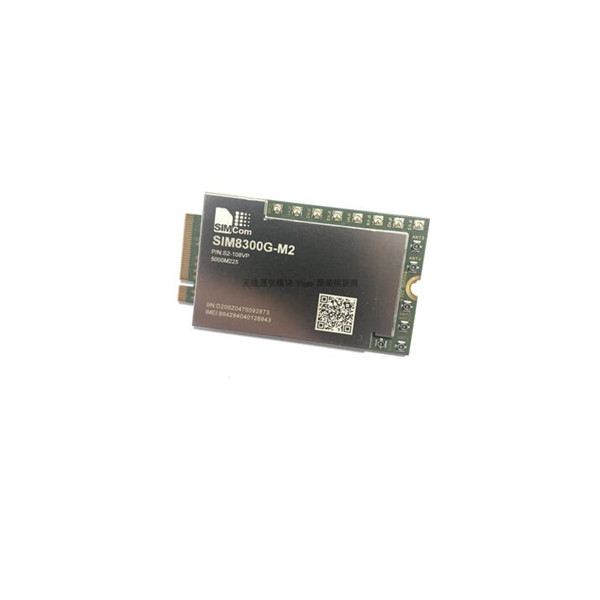

SIMCom SIM8300G-M2 5G Module good priceSIMCom SIM8300G-M2 5G Module YCICT

SIMCom SIM8200EA-M2 5G Module simcom 5g module ycict NEW AND ORIGINALSIMCom SIM8300G-M2 5G Module YCICT

SIMCom SIM8210C-M2 5G Module Product Specifications

Product SIM8210C-M2
Form Factor M.2
Dimensions(mm) 52.0*30.0*2.3
Frequency Bands 5G-NR n1,n3,n5,n7,n8,n20,n28,n38,n40,n41,n77,n78,n79
LTE-FDD B1,B3,B5,B7,B8,B20,B28
LTE-TDD B34,B38,B39,B40,B41,B42,B43,B48
GNSS
Temperature -30℃ ~ +70℃
Supply Voltage(V) 3.135 ~ 4.4
Data Transfer
Sub-6G 1.5Gbps(DL)/1Gbps(UL)
LTE 400Mbps(DL)/100Mbps(UL)
Protocol TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
TLS
File System
FOTA
Android RIL Android 6/7/8/9
USB Driver Microsoft Windows Win7/Win8/Win10/Linux/Android
MBIM Win8/Win10
NDIS Linux/Win7/Win8/Win10
Firmware Upgrade USB
SIM Card 1.8V/2.95V
USB
PCM
I2C
Diversity Receiver
Regulatory CCC*/JATE*/TELEC*/CE(RED)*/SRRC*/CTA*/RoHS*/REACH*/RCM*

SIMCom SIM8210C-M2 5G Module and More 5G Module

SIMCom SIM8210C LGA

SIMCom SIM8210C-M2

SIMCom SIM8202E-M2

SIMCom SIM8202G-M2

SIMCom SIM8300G-M2

SIMCom SIM8200G LGA

SIMCom SIM8200EA-M2

SIMCom SIM8210C-M2 5G Module Product Applications

SIMCom SIM8210C-M2 5G Module Product Applications YCICT
