Description
GYTZS-8~12Xn Optic Cable is Loose sleeve stranded flame retardant fiber optic cable, suitable for overhead
GYTZS-8~12Xn Optic Cable Product Overview
GYTZS fiber optic cable is a loose layer stranded flame retardant optical cable, and its structural features include the sleeve of 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. In the center of the core is a metal reinforcing core, and for some core cables, a layer of polyethylene (PE) is squeezed out of the metal reinforcing core. The loose tube and infill rope are twisted around the central reinforcing core to form a compact and round core, and the gaps within the core are filled with water-blocking filling. Double–sided plastic–coated steel tape (PSP) is longitudinally wrapped and then extruded into a flame retardant sheath into a cable

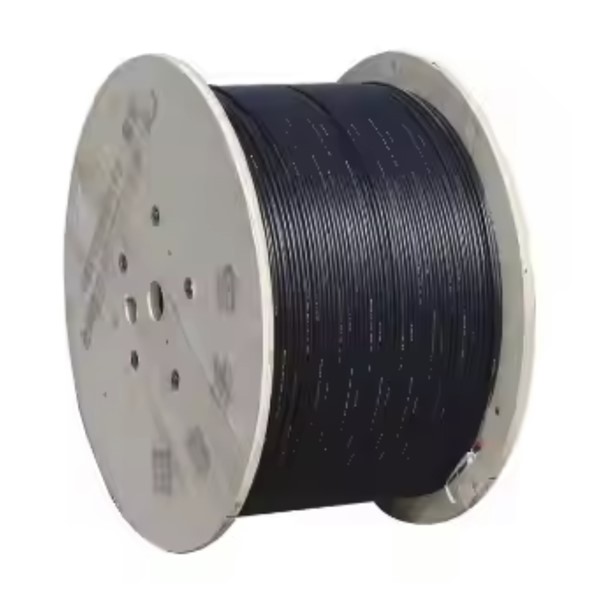

GYTZS-8~12Xn Optic Cable Product Pictures
GYTZS-8~12Xn Optic Cable Product Specifications
| Fiber Optic Cable Model (in 2-fiber increments) | Number of fibers | Number of casings | Number of infill ropes | Reference cable weight (kg/km） | Tensile force allowed Long-term/short-term (N) |
Allowable squashing force Long-term/short-term (N/100mm) |
Bend radius Static/Dynamic (mm) |
|
| GYTZS-2~6Xn | 2~6 | 1 | 4 | 118 | 600/1500 | 300/1000 | 10D/20D | |
| GYTZS-8~12Xn | 8~12 | 2 | 3 | 118 | ||||
| GYTZS-14~18Xn | 14~18 | 3 | 2 | 118 | ||||
| GYTZS-20~24Xn | 20~24 | 4 | 1 | 118 | ||||
| GYTZS-26~30Xn | 26~30 | 5 | 0 | 118 | ||||
| GYTZS-32~36Xn | 32~36 | 6 | 0 | 131 | ||||
| GYTZS-38~48Xn | 38~48 | 4 | 1 | 139 | ||||
| GYTZS-50~60Xn | 50~60 | 5 | 0 | 139 | ||||
| GYTZS-62~72Xn | 62~72 | 6 | 0 | 170 | ||||
| GYTZS-74~84Xn | 74~84 | 7 | 1 | 200 | ||||
| GYTZS-86~96Xn | 86~96 | 8 | 0 | 200 | ||||
| GYTZS-98~108Xn | 98~108 | 9 | 1 | 230 | ||||
| GYTZS-110~120Xn | 110~120 | 10 | 0 | 230 | ||||
| GYTZS-122~132Xn | 122~132 | 11 | 1 | 268 | ||||
| GYTZS-134~144Xn | 134~144 | 12 | 0 | 268 | ||||
| GYTZS-146~216Xn | 146~216 | 13~18 | 5~0 | 268 | ||||
| GYTZS-288Xn | 288 | 24 | 0 | 360 | ||||
| Fiber type | Attenuation | Bandwidth | Numerical Aperture | Fiber optic cable cut-off wavelength | ||||
| （+20℃） | ||||||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | — |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | — |
GYTZS-8~12Xn Optic Cable Product Features
- Good mechanical and temperature properties: The loose tube material itself has good hydrolysis resistance and high strength
- Excellent water-blocking performance: full-section water-blocking structure ensures good water-blocking and moisture-blocking performance
- Critical Protection: The loose tube is filled with a special paste to provide critical protection for the optical fiber
- Excellent flame retardant performance: Low smoke halogen-free sheath is adopted, which has good flame retardant performance and environmental protection performance
- Wide range of applicable environments: suitable for all kinds of harsh environments, such as overhead, pipelines, etc
GYTZS-8~12Xn Optic Cable Product and More Optic Cables
Stranded loose jacket unarmoured fiber optic cable (GYDTA)
Stranded Loose Jacket Non-Metallic Reinforced Core Non-Armoured Flame Retardant Fiber Optic Cable (GYFTZY)
Loose sleeve stranded reinforced core armored flame retardant optical cable(GYTZA53)
Loose sleeve stranded non-metallic reinforced core armored flame retardant fiber optic cable (GYFTZA53)
Stranded Flame Retardant Fiber Optic Cable (GYTZS)
Stranded loose jacket non-armoured flame retardant fiber optic cable (GYTZA)
Stranded loose sleeve non-metallic reinforced core armored fiber optic cable (GYFTA53)
Stranded non-metallic reinforcing core plain armored fiber optic cable (GYFTY53)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTA)
Loose sleeve stranded non-metallic reinforced core optical cable (GYHTY)
Stranded loose jacket non-metallic reinforced core unarmoured fiber optic cable (GYFTY)
Loose sleeve stranded single thin round steel wire armored fiber optic cable (GYTA53 33)
Loose Sleeve Stranded Reinforced Armoured Fiber Optic Cable(GYTA53)
Loose sleeve stranded ordinary armored fiber optic cable(GYTY53)
GYTZS-8~12Xn Optic Cable Product Applications
- Telecommunications and Data Centers: Seamless Connectivity Backbone
- Oil and Gas: Reliable Communication in Challenging Environments
- Transportation and Traffic Management: Enhanced Safety and Efficiency
- Government and Public Sector: Secure and Reliable Connectivity

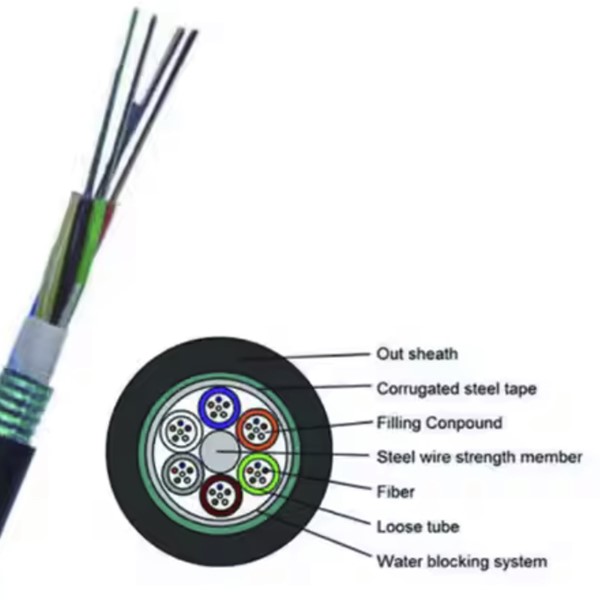

GYTZS-8~12Xn Optic Cable Product Structure
