Description
SC/APC duplex adapter is SC/APC To SC/APC Single-Mode Duplex Fiber Adapter applied for optical networks
SC/APC duplex adapter Overview
Fiber optic adapter (coupler) is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
When connecting two multimode fibers, you should always make sure they are the same core diameter (50/125 or 62.5/125). A mismatch here will cause attenuation in one direction (where the larger fiber is transmitting light into the smaller fiber).
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility

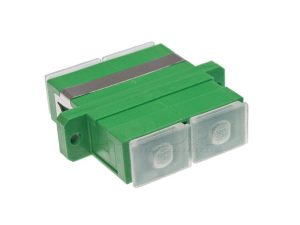

SC/APC duplex adapter Pictures
SC/APC duplex adapter Specifications
|
Type |
Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -120 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -120 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -120 | |
| LC | < 0.2 | 200-600 | 1000 | -120 | |
| MU | < 0.2 | 200-600 | 1000 | -120 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -120 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -120 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -120 | |
| FC-ST | < 0.2 | 200-600 | 1000 | -120 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -120 | |
SC/APC duplex adapter Features
- SC style to SC style
- Use in Single-mode applications.
- Free-hanging or panel-mount design.
- Dust caps protect against debris and contamination
- RoHS Compliant
SC/APC duplex adapter Applications
- Fiber Optic Telecommunications
- LAN (Local Area Network)
- FTTH (Fiber To The Home)
- CATV&CCTV System
- High speed transmission systems
- Fiber optic sensing
- Industtial, Mechanical and Military
