Description
HS8546V5 FTTH is a smart gateway Optical Terminal with 4GE 1POTS 1USB and dual-band Wi-Fi (2.4GHz & 5GHz).
HS8546V5 FTTH Product Overview
HS8546V5 is a smart gateway device for the gigabit fiber smart home solution built by for China Mobile. It provides 1 POTS voice interface, 4 GE/FE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz) , Flexible application, support plug and play, remote diagnosis, green energy saving and other features. HS8546V5 supports GPON and EPON technologies to realize ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees the service experience of voice, data and high-definition video, and provides an ideal terminal solution and orientation for FTTH deployment. Future business support capabilities.

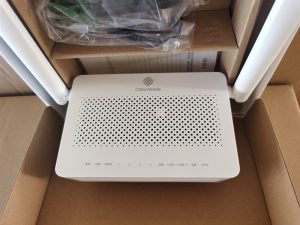

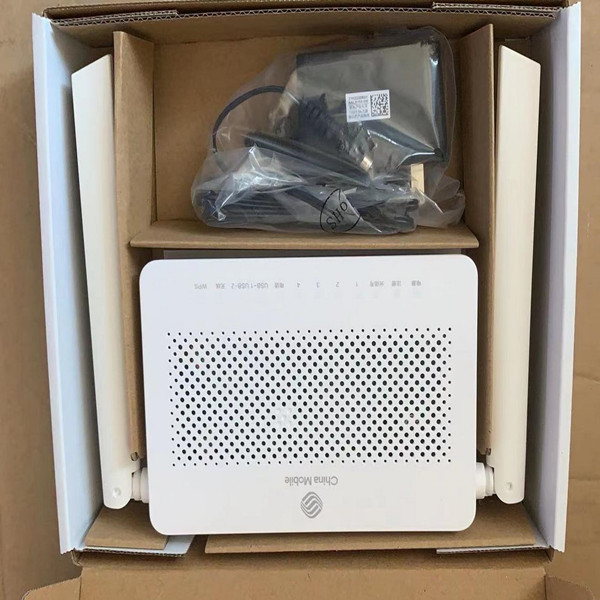

HS8546V5 FTTH Product Pictures
HS8546V5 FTTH Product Specifications
| Model | HS8546V5 |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Typical power consumption | 8 W |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 2 A | |
| WLAN | 2.4GHZ: 802.11n 5GHZ: 802.11ac |
| Network-side Port | GPON |
| User-side Ports | 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB |
| Indicators | POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
| Dimensions (length x width x height) | 173 mm x 120 mm x 30 mm |
| Weight | About 1 Kg |
HS8546V5 FTTH Features
- Interface type: 1POTS+4GE+1USB+ dual-band (2.4GHz & 5GHz) Wi-Fi.
- Flexible application: PC, STB and other home terminals can be arbitrarily interpolated on the Ethernet port; SIP and H.248 are supported by both protocols, and it is convenient to interface with soft switches.
- Plug and Play: Supports remote automatic distribution of voice, broadband, and multicast services through the OMCI protocol and TR069, without on-site configuration.
- Remote diagnosis: support POTS port line test, call simulation, PPPoE dial-up simulation, easy remote fault location.
- Green energy saving: It adopts high integrated SOC chip, and integrates PON, voice, gateway and LSW modules on a single chip, saving 25% energy.
HS8546V5 FTTH and more Models
EPON/ GPON ONT
GEPON ONT
HG8010 EPON ONT, 1*LAN English Firmware
HG8310 EPON ONT, 1*LAN English Firmware
HG8110 EPON ONT, 1*LAN+1*Voice English Firmware
HG8120 EPON ONT, 2*LAN+1*Voice English Firmware
HG8240 EPON ONT, 4*LAN+2*Voice English Firmware
HG8346R EPON ONT, 4*LAN+2*Voice+WIFI English Firmware
HG8245C EPON ONT, 4*LAN+2*Voice+WIFI English Firmware
GPON ONT
HG8310M GPON ONT, 1*LAN English Firmware
HG8010/HG8010C GPON ONT, 1*LAN English Firmware
HG8311/HG8110/HG8110F GPON ONT, 1*LAN+1*VOICE English Firmware SIP
HG8120C/HG8120F/HG8120/HG8321/HG8321R GPON ONT, 2LAN+VOICE English Firmware SIP
HG8340M/HG8540/HG8040 GPON ONT, 4FE English Firmware SIP
HG8342/HG8342R/HG8342M/HG8240 GPON ONT, 4FE+2VOICE English Firmware SIP
HG8240/HG8240H GPON ONT, 4GE+2VOICE English Firmware SIP
HG8345R internal antenna GPON ONT, 4FE+WIFI (internal antenna)English Firmware SIP
HG8345R external antenna GPON ONT, 4FE+WIFI (external antenna)English Firmware SIP
HG8546M GPON ONT, 1GE+3FE+VOICE+WIFI, English Firmware SIP
HG8346M/HG8245A/HG8346R GPON ONT, 4FE+2VOICE+WIFI (internal antenna)English Firmware SIP
HG8346R external antenna GPON ONT, 4FE+2VOICE+WIFI (external antenna)English Firmware SIP
HG8245C GPON ONT, 2GE+2FE+2VOICE+WIFI English Firmware SIP
HG8245 external antenna GPON ONT, 4GE+2VOICE+WIFI ( external antenna)black color English SIP
HG8245H GPON ONT, 4GE+2VOICE+WIFI English Firmware SIP ONT
HG8247 GPON/EPON ONT, 4GE+2VOICE+WIFI+CATV English Firmware SIP
HS8546V5 FTTH Product Applications
