Description

Huawei AirEngine 9700-M1 is a high-specification wireless access controller (AC) with 12 x GE + 12 x 10 GE + 2 x 40 GE (including 1 x 40 GE and 4 x 10 GE, which are mutually exclusive). it applies for medium- to large-sized enterprise campuses, enterprise branches, and school campuses

Huawei AirEngine 9700-M1 Product Overview

AirEngine 9700-M can manage up to 2048 access points (APs) and provide up to 20 Gbps forwarding performance. It features high scalability and offers users considerable flexibility in configuring the number of managed APs. When used with Huawei’s full series 802.11ax, 802.11ac and 802.11n APs, AirEngine 9700-M delivers an adaptable solution for medium to large campus networks, enterprise office networks, wireless Metropolitan Area Network (MAN), and hotspot coverage.

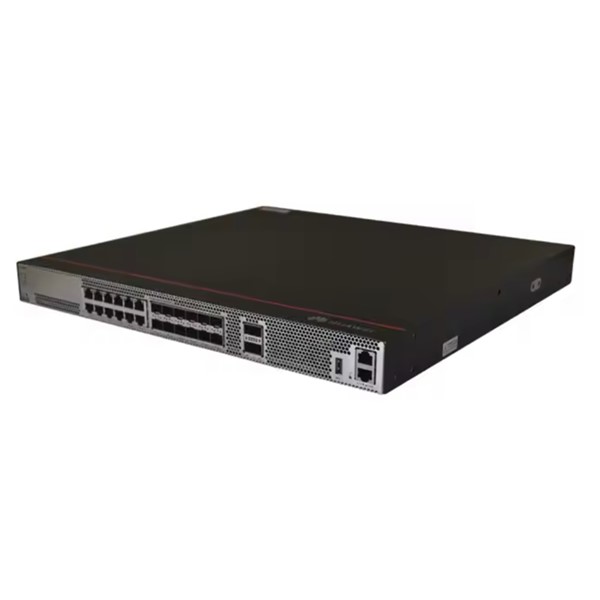

Huawei AirEngine 9700-M1 Product Pictures

Huawei AirEngine 9700Huawei AirEngine 9700-M1 specs ycict

Huawei AirEngine 9700-M1 ycictHuawei AirEngine 9700-M1 access controller ycict

Huawei AirEngine 9700-M1 Product Specifications

Parameters AirEngine 9700-M1
Ports 12 x GE + 12 x 10 GE + 2 x 40 GE (including 1 x 40 GE and 4 x 10 GE, which are mutually exclusive)
Power Supply 1 + 1 AC
Forwarding Capability 120 Gbit/s (direct forwarding)
120 Gbit/s (tunnel forwarding)
Maximum Number of Managed APs 3072
Maximum Number of Access Users 36,864
AP-AC Networking Layer 2 or Layer 3 networking
Forwarding Mode Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding)
AC Active/Standby Mode 1 + 1 HSB or N + 1 backup
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax/be

Huawei AirEngine 9700-M1 Product Features

  • Provide 2 x 40GE optical interfaces, 12 x 10GE optical interfaces and 16 x GE electrical interfaces, supporting up to 20 Gbps* forwarding performance.
  • Load balancing during smart roaming: The load balancing algorithm can work during smart roaming for load balancing detection among APs on the network after STA roaming to adjust the STA load on each AP, improving network stability.
  • Intelligent DFA technology: The dynamic frequency assignment (DFA) algorithm is used to automatically detect adjacent-channel and co-channel interference, and identify any 2.4 GHz redundant radio. Through automatic inter-AP negotiation, the redundant radio is automatically switched to another mode (dual-5G AP models support 2.4G-to-5G switchover) or is disabled to reduce 2.4 GHz co-channel interference and increase the system capacity.
  • Support Layer 4 to Layer 7 application identification and can identify over 6000 applications, including common office applications and P2P download applications, such as Lync, FaceTime, YouTube, and Facebook.
