Huawei AR651W Router is an enterprise-class Access Routers (ARs) designed for the cloud era with 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 802.11b/g/n/ac, 2*2MIMO, 1*MIC slot

Huawei AR651W Router Product Overview

Huawei AR651W Router is a1U fixed router designed for use in small- and medium-sized business (SMBs) and small-sized enterprise branches. The product integrates various service features such as SD-WAN, routing, switching, security, and WLAN, providing diversified services and high performance. This ensures diversified and cloud-based services are fully supported.
NetEngine AR650 series consists of models such as the NetEngine AR651C, NetEngine AR651, NetEngine AR651W, NetEngine AR651EW, NetEngine AR651W-8P, NetEngine AR657W. Huawei provides various models which can meet networking requirements of enterprises of different scales.

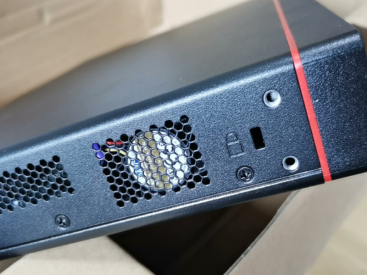

Huawei AR651W Router Product Pictures

Huawei AR651W Router specsHuawei AR651W Router price and specs ycict

Huawei AR651W Router ycictHuawei AR651W Router price ycict

Huawei AR651W Router Product Specifications

Item Details
Brand Huawei
Part Number 50010485
Model AR651W
Description 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 802.11b/g/n/ac, 2*2MIMO, 1*MIC slot
First supported version V300R019C10
Installation type Rack Work bench Against the wall
Dimensions with packaging (H x W x D) [mm(in.)] 110 mm x 435 mm x 360 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U] 1 U
Weight with packaging [kg(lb)] 2.9 kg (6.37 lb)
Weight without packaging [kg(lb)] 1.82 kg (4.0 lb)
CPU 1.4 GHz, 4 Cores
Memory 2 GB
NAND Flash 1 GB
Console port RJ45
RTC Supported
Maximum power consumption [W] 42 W
Power supply mode AC external
Number of power modules 1
Rated input voltage [V] 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A] 1.5 A
Maximum output power [W] 60 W
Type of fans Built-in
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration) 1 x MIC
Noise at normal temperature (acoustic power) [dB(A)] 49.7 dB(A)
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [years] 54.13 years
MTTR [hours] 2 hours
Availability 0.999995782
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 44.0 mm x 300.0 mm x 220.3 mm (1.73 in. x 11.81 in. x 8.67 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.0 mm x 300.0 mm x 229.0 mm (1.73 in. x 11.81 in. x 9.02 in.)

Huawei AR651W Router Product Features

  • Integration of functions such as routing, switching, VPN, security, and WLAN, meeting diversified enterprise service requirements, saving space, and reducing TCO
  • Built-in firewall, IPS(AR651/AR651W/AR651EW/AR651W-8P/AR657W), URL filtering, Antivirus(AR651/AR651W/AR651EW/AR651W-8P/AR657W) and multiple VPN technologies, providing comprehensive security protection capabilities
  • Built-in SD-WAN solution, building cost-effective and business-friendly connections over the Internet
  • ZTP (Email-, USB-, DHCP-based and Registration Query Center deployment), minimizing skill requirements and provisioning devices in minutes

Huawei AR651W Router Product and more AR650 Models

AR651C AC host, 10*GE RJ45, 2*GE SFP, 1*USB 3.0
AR651, 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 1*MIC slot
AR651W, 2*GE combo WAN, 8*GE LAN, 1*USB2.0, 802.11b/g/n/ac, 2*2MIMO, 1*MIC slot
AR651EW,2*10GE SFP+ WAN,2*GE WAN,8*GE LAN,1*USB2.0,802.11b/g/n/ac/ax,2*2MIMO,1*MIC slot
AR651W-8P,2*GE combo WAN,8*GE LAN (PoE+),1*USB2.0,802.11b/g/n/ac,2*2MIMO,1*MIC slot
AR657W, 2*GE combo WAN, 1*VDSL 35B WAN, 8*GE LAN, 1*USB2.0,802.11b/g/n/ac, 2*2 MIMO, 1*MIC slot

Huawei AR651W Router Product Ordering Info

Chassis Configuration Description
NetEngine AR651C AR651C AC host, 10*GE RJ45,2*GE SFP, 1*USB, with the AC/DC adapter
NetEngine AR651 AR651,2*GE combo WAN,8*GE LAN,1*USB,1*MIC slot
NetEngine AR651W AR651W,2*GE combo WAN,8*GE LAN,1*USB,802.11b/g/n/ac,2*2MIMO,1*MIC slot
NetEngine AR651EW AR651EW,2*10GE SFP+,10*GE LAN,1*USB,802.11b/g/n/ac/ax,2*2MIMO,1*MIC slot
NetEngine AR651W-8P AR651W-8P,2*GE combo WAN,8*GE LAN (PoE+),1*USB,802.11b/g/n/ac,2*2MIMO,1*MIC slot
NetEngine AR657W AR657W,2*GE combo WAN,1*VDSL 35B WAN,8*GE LAN,1*USB,802.11b/g/n/ac,2*2 MIMO,1*MIC slot
E200BMA00 IEC Box mounting ear (AR650)
MIC-1ELTE6-EA Function module, AR, MIC-1ELTE6-EA, WCDMA/LTE FDD/LTE TDD CAT6 interface card
MIC-1LTE6-EA Function module, AR, MIC-1LTE6-EA, FDD/TDD/HSPA+/WCDMA CAT6 interface card
ASMAM0006 Omni-directional Antenna, 698MHz-960MHz/1710MHz-2690MHz,1.0dBi(698MHz-960MHz) &3dBi(1710MHz-2690MHz),10W, SMA-J
ASMAM0008 Isotropic Antenna, 698MHz~960MHz/1420MHz~2690MHz,2.1dBi(max)(698-960/2110-2170MHz)/4.6dBi(max)(1710-1990/2500-2690MHz), vertical, Omni,5W,SMA-J,No Bracket
ARRFSMA0601 RF Cable Parts,6m, SMA-J,240 Series,SMA-K
LAR0DATAE08 AR600 Value-Added Data Package
LAR0SECE08 AR600 Value-Added Security Package
LAR0TP1007 Threat Protection Service Subscribe 3 Year (Applies to AR650)
LAR0PERFE08 AR650 Performance license
LAR0PONE01 AR600&6100&6200&6300 Passive Optical Network Value-added Package
N1-Campus-F-AR600 N1-CloudCampus (exclude SD-WAN), Foundation, AR600 Series
N1-LANWAN-F-AR600 N1-CloudCampus SD-WAN (include SD-WAN), Foundation, AR600
N1-LANWAN-A-AR600 N1-CloudCampus SD-WAN (include SD-WAN), Advanced, AR600
N1-FToA-AR600 N1-CloudCampus SD-WAN (include SD-WAN), Upgrade Foundation to Advanced, AR600 Series
N1-APP-AR600 N1-CloudCampus SD-WAN Add-On, Intelligent Application Analysis, AR600 Series

Huawei AR651W Router Product Applications
