Huawei ME909s-120 LGA Module

SKU: Huawei ME909s-120 LGA Module Category: Tags: ,

Description

Huawei ME909s-120 LGA Module is a high-quality designed LTE module in small size and Huawei standard. it is the first LTE cat4 module based on Hi-Silicon chipset., especially for industrial-grade M2M applications.

Huawei ME909s-120 LGA Module supports 150Mbps downlink data rate and, include enhanced features like FOTA, USSD, and Huawei enhanced AT commands. ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports EMEA region. With Huawei pin-to-pin it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. All Huawei modules comply with the RoHS directive and Regional certification.

Huawei ME909s-120 LGA Module Product Overview

ME909s-120 is the first LTE cat4 module based on Hi-Silicon chipset. It is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.

Huawei ME909s-120 LGA Module supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands. ME909s-120(B1/B2/B3/B4/B5/B7/B8/B20) supports the EMEA region and has two different form factor: LGA and Mini PCIe form factor. With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120. All Huawei modules comply with the RoHS directive and Regional certification.

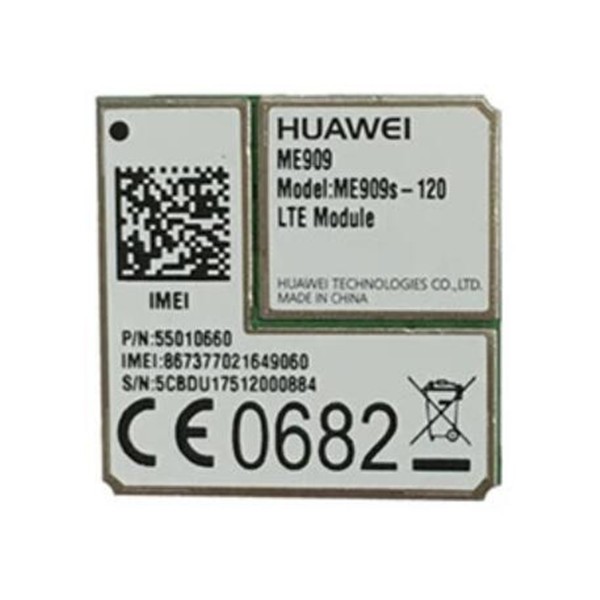

Huawei ME909s-120  LGA Module  Product Pictures

Huawei ME909s-120 LGA Module YCICT LTE MODULEHuawei ME909s-120 LGA Module YCICT LTE MODULE

Huawei ME909s-120 LGA Module YCICT LTE MODULEHuawei ME909s-120 LGA Module YCICT

Huawei ME909s-120 LGA Module Product Specifictions

Form Factor 145-pin LGA
Bands ME909s-120 LGA
LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20
DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz
Data Transfer Rate DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4)
Dimension Height 30mm
Width 30mm
Depth 2.52mm
Weight <5g
Special Features CDC-ECM
FOTA
Firmware Update via USB
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode
Interface 145 pins LGA interface
Antenna interface
UART
USB 2.0 High speed
PCM Voice
SIM Card
LED
Multiple GPIOs
JTAG
Power supply
Power-on/off
Reset
Power Supply 3.2 V to 4.2 V (typical: 3.8 V)
Temp Range -40℃ to 85℃
Voice PCM Voice
DTMF
Operating System Linux, Android, WinCE, Windows 8/10
Approvals CE
GCF
RoHS & WEEE Compliant
