Description
SIMCom SIM8970EU Smart Module is LTE Cat 6 smart module with Android system and Qualcomm 8-core 64-bit ARM V-8 processor, and frequency up to 2.0GHz and AdrenoTM 610 GPU.
SIMCom SIM8970EU Smart Module Product Overview
The module supports multiple high resolution camera and high definition touch display, and has powerful high data transfer and multimedia processing capability. Meanwhile, it integrates wireless communication, short distance communication and multiple satellite positioning receiver function. MIMO technology is also used to support LTE Cat 6 and 2 × 20MHz carrier aggregation. Moreover, SIM8970EU has abundant interfaces, it can be connected with camera, display screen, audio, sensors and other equipment. The interfaces such as MIPI_DSI/CSI/UART/SPI/I2C/GPIO/USB greatly expand smart module applications, and make the module suitable for smart POS, advertising media, automotive electronics, smart diagnostics, smart security devices and industry.

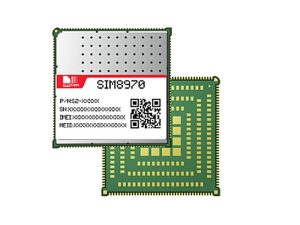

SIMCom SIM8970EU Smart Module Product Pictures
SIMCom SIM8970EU Smart Module Product Specifications
| Brand | SIMCom |
| Model | SIM8970EU |
| Form Factor | LCC+LGA |
| Frequency Bands | LTE-FDD B1/B3/B5/B7/B8/B20/B28 LTE-TDD B38/B40/B41 WCDMA B1/B5/B8 GSM 900/1800 2CA B1-B1,B3-B3,B1-B3,B38-B38,B40-B40,B41-B41 |
| Dimensions(mm) | 44.1*45.6*2.9mm |
| Weight | 13.5g |
| Supply voltage range | 3.4V ~ 4.4V |
| Data | LTE:50Mbps(UL) 300Mbps(DL) HSPA+:5.76Mbps(UL) 42 Mbps (DL) UMTS 384Kbps(UL/DL) EDGE 236.8Kbps(UL/DL) GPRS 85.6Kbps (UL/DL) |
| Interfaces | LCM: 4-lane MIPI_DSI FHD 2520 * 1080 @ 60fps DP1.4 over USB Type-C for Dual Independent Display Capacitive Touch Panel Camera UART *6 I2C *9 SPI *4 ADC *2 3 groups of Mipi_ CSI Combined dphy 1.2 / cphy 1.0 Configurable to 3 or 4 cameras up to 25MP pixels Audio 2 channel digital mic interface 3 channel analog audio input & output 4 digital microphones USB Compliant with USB 3.1/2.0 UIM Card *2, dual cards dual standby GPIO >=*40 Charging QC3.0 Antenna Main & Diversity & GNSS & Wi-Fi/BT |
| Certifications | RoHS/REACH/CE |
SIMCom SIM8970EU Smart Module Product Features
● Cat 6 / Wi-Fi / BT
● Support 4K@30fps video recording and playing
● Built in charging management function, supporting QC3.0
● Integrate GNSS function, supports rapid accurate positioning under different environment
● 4-lane MIPI_ DSI(up to 2520*1080 @60fps) and DP over USB Type-C for Dual Independent Display
● Can carry 4 cameras. The main camera can support up to 25MP pixels, and the secondary camera can support up to 16MP pixels
SIMCom SIM8970EU Smart Module Product and More Modules
SIM8970EU LCC+LGA
SIM8970NA LCC+LGA
SIM8918CE LCC+LGA
SIM8918E LCC+LGA
SIM8918EA LCC+LGA
SIM8918SA LCC+LGA
SIM8918NA LCC+LGA
SIM8918W LCC+LGA
SIM8970SA LCC+LGA
SIM8970EU LCC+LGA
SIM8960 LCC+LGA
SIM8905 LCC+LGA 210Pin
SIM8950 LCC+LGA 232Pin
SIMCom SIM8970EU Smart Module Product Applications
