Description

AOC QSFP56-200G-AOC-30M is 200G-QSFP56-Active Optical Cable-30m-AOC

AOC QSFP56-200G-AOC-30M Product Overview

AOC QSFP56-200G-AOC-30M offers high-end port density and configurability, and a much longer reach than passive copper cables in the data centers. 200G QSFP56 AOC has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. Additionally, It contains four channels multi-mode fibers (MMF) optic transceivers per end, each channel of transceivers operates data rates up to 50Gb/ with PAM4 modulated signals (4x 50G PAM4). Assembled with fixed length of fiber cable, the AOC cable is easy to install and replace. The high quality 200G QSFP56 AOC (active optical cable) solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost,and reduced power requirement in the data centers.

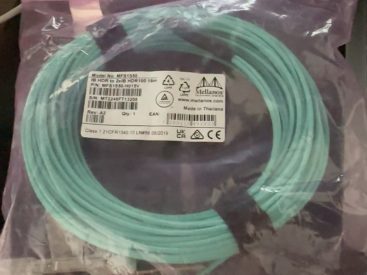

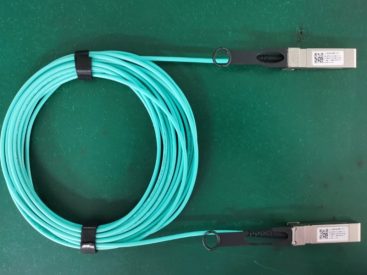

AOC QSFP56-200G-AOC-30M Product Pictures

AOC QSFP56-200G-AOC-30M ycictAOC QSFP56-200G-AOC-30M good price

QSFP56-200G-AOC-10M specs ycictAOC QSFP56-200G-AOC-20M specs ycict

AOC QSFP56-200G-AOC-30M Product Specifications

Part No. Q56-200G-AOC20M
Connector Type QSFP56 to QSFP56
Cable Type AOC
Length 30m
Jacket Material OFNP
Passive/Active Active
Protocols SFF-8636 and SFF-8679, IEEE 802.3cd
Data Rate 200G/ps
Operation Temperature 0~ 70 °C (32 to 158°F)
Voltage 3.3V
Minimum Bend Radius 7.5mm
Fiber Cable OM3

AOC QSFP56-200G-AOC-30M Product Features

  • Hot-pluggable QSFP56 form factor full-duplex transceiver assembly
  • 4-channel 850nm VCSEL array and PIN photo-detector array
  • Data rate up to 53.125Gbps (26.5625GBd PAM4) per channel
  • 200GAUI-4 electrical interface
  • Compliant with QSFP56 MSA, CMIS 4.0 and IEEE 802.3cd 200GBASE-SR4
  • Compliant with IEEE 802.3bm 100GBASE-SR4 and InfiniBand EDR/HDR
  • Built-in 200G PAM4 DSP
  • MMF cable with customizable length up to 70m (OM3) or 100m (OM4/OM5)
  • 5W maximum power dissipation per 200G QSFP56 SR4 module
  • Case operating case temperature range: C-Temp
  • Single 3.3V power supply
  • Built-in digital diagnostic functionality
  • RoHS compliant (lead free)

AOC QSFP56-200G-AOC-30M Product and More Models

QSFP56-200G-AOC-5M
QSFP56-200G-AOC-10M
QSFP56-200G-AOC-20M
QSFP56-200G-AOC-30M
QSFP-2QSFP56100G-AOC10M
QSFP-DD-400G-AOC-10M
QSFP-DD-2QSFP56200G-AOC5M
QSFP-DD-2QSFP200G-AOC10M
QSFP-DD-2QSFP200G-AOC30M
QSFP-DD-2QSFP200G-AOC100M

AOC QSFP56-200G-AOC-30M Product Applications
