Description

AOC QSFP56-200G-AOC-10M is 200G-QSFP56-Active Optical Cable-10m-AOC

AOC QSFP56-200G-AOC-10M Product Overview

AOC QSFP56-200G-AOC-10M is designed for use in 200 Gigabit Ethernet links on up to 20m of multi mode fiber. The product is compliant with the QSFP MSA and IEEE 802.3cd.The optical transceiver is RoHS compliant.

200G AOC active optical cables are mainly in QSFP-DD and QSFP56 packages, both with a wavelength of 850nm. The 200G QSFP-DD AOC modulation mode is NRZ, which is applied to 200G Ethernet with a transmission distance of 1-100M. The 200G QSFP56 AOC is modulated in PAM4 mode. Compared with NRZ, PAM4 is a more efficient modulation technique that can effectively improve bandwidth utilization, and the throughput of PAM4 is twice that of NRZ at the same baud rate.

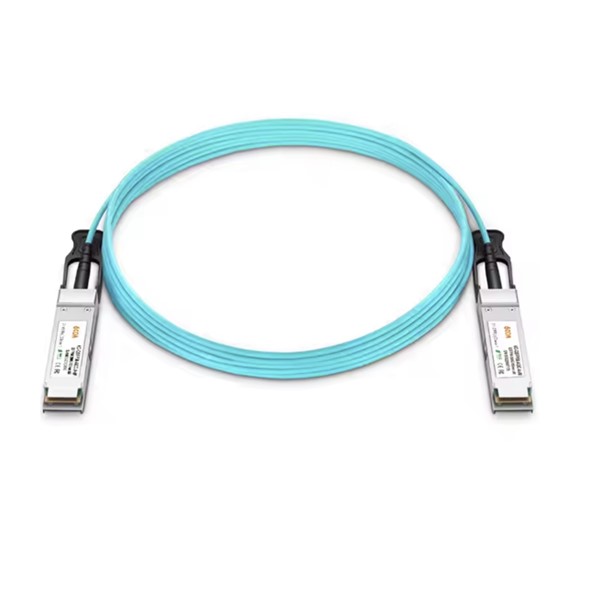

AOC QSFP56-200G-AOC-10M Product Pictures

QSFP56-200G-AOC-10MQSFP56-200G-AOC-10M ycict

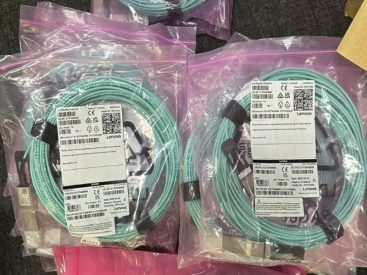

QSFP56-200G-AOC-10M specs ycictAOC QSFP56-200G price and specs

AOC QSFP56-200G-AOC-10M Product Specifications

Model name AOC QSFP56-200G-AOC-10M
Interface type QSFP56 to QSFP56
Transmission rate 212.5Gbps
Minimum bend radius 30mm
Cable length 10m
wavelength 850nm
Outer sheath material OFNP
Receiver type PIN
Operating temperature 0~70°C
Emitter type VCSEL
Cable type Active fiber optic cables
Protocal SFF-8636,SFF-8665,200G以太网

AOC QSFP56-200G-AOC-10M Product Features

  • Up to 200Gb/s data rate
  • 4x 50Gb/s PAM4 modulation
  • SFF-8665 compliant QSFP56 port
  • SFF-8636 compliant I2C management
  • Single 3.3V power supply
  • 5W power dissipation each end, with retiming
  • Operating case temp Commercial: 0°C to +70 °C
  • Hot pluggable
  • RoHS compliant

AOC QSFP56-200G-AOC-10M Product and More Models

QSFP56-200G-AOC-5M
QSFP56-200G-AOC-10M
QSFP56-200G-AOC-20M
QSFP56-200G-AOC-30M
QSFP-2QSFP56100G-AOC10M
QSFP-DD-400G-AOC-10M
QSFP-DD-2QSFP56200G-AOC5M
QSFP-DD-2QSFP200G-AOC10M
QSFP-DD-2QSFP200G-AOC30M
QSFP-DD-2QSFP200G-AOC100M

AOC QSFP56-200G-AOC-10M Product Applications

AOC QSFP56-200G-AOC-10M ycict
